STEERING STEM
GSXR1100 1987 (H) USA (E03)

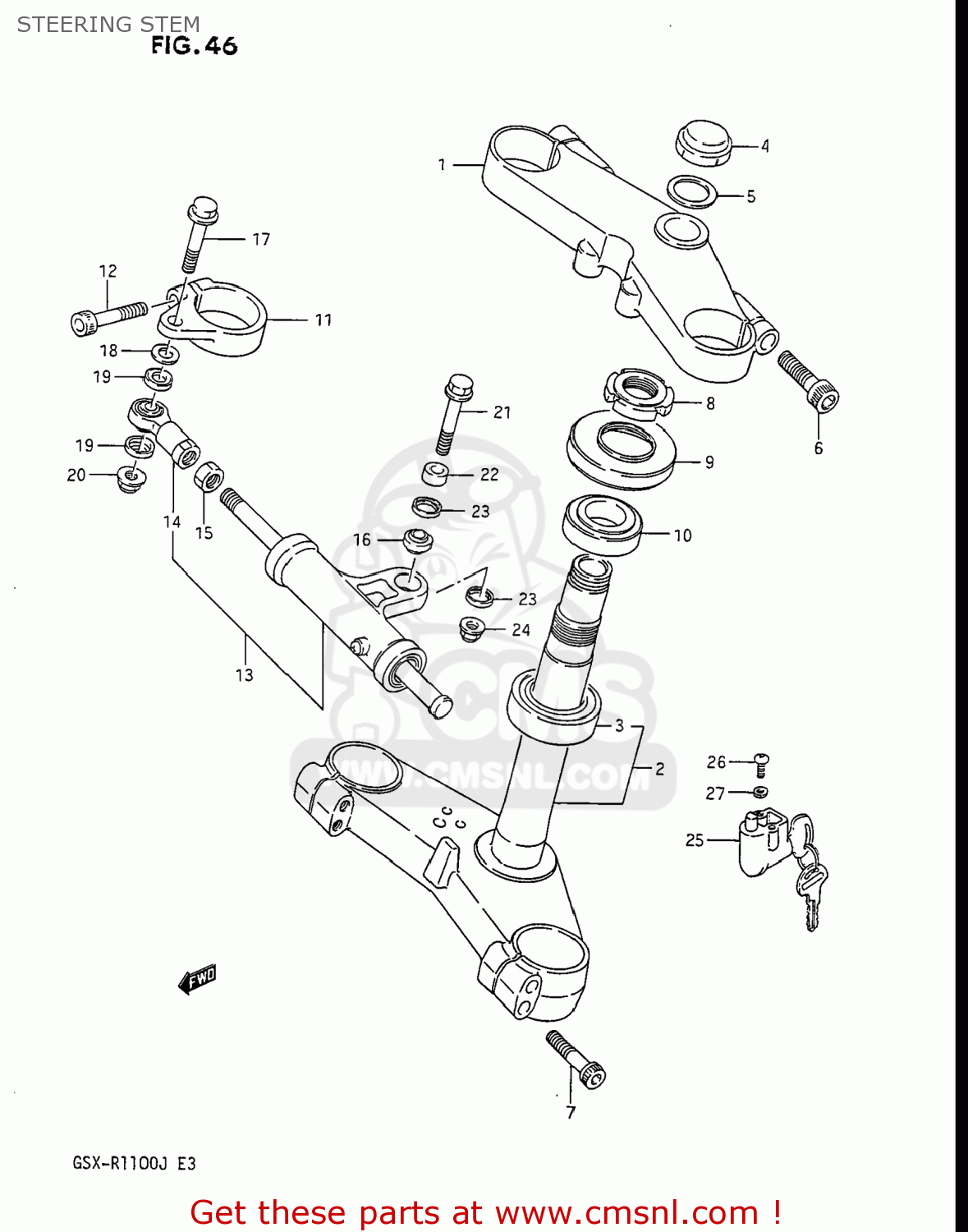

Steering stem diagram GSXR1100 1987 (H) USA (E03)
STEERING STEM GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131106B00291
ref: 1
STEM HEAD,STEERING
€ 233.50
2
5141006B10
ref: 2
STEM,STEERING
€ 357.00
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4-1
5135327A00
ref: 4-1
51353-28A10
NUT,STEM HEAD
€ 30.00
4-2
5135327A80
ref: 4-2
51353-28A10
NUT,STEM HEAD
€ 30.00
5
5135627A00
ref: 5
51356-24B01
WASHER,STEERING STEM
€ 3.00
6
5135200A00
ref: 6
BOLT,FORK INNER TUBE FITTING
€ 6.00
7
0711008408
ref: 7
07130-08407
BOLT
€ 3.50
8
5163128000
ref: 8
NUT,STEERING STEM(25X44X10)
€ 12.50
9
0928534006
ref: 9
09285-34009
SEAL OIL
€ 16.50
10
0926525008
ref: 10
09265-25019
TAPER,ROLLER BEARING
€ 48.50
11-1
5175627A30
ref: 11-1
51756-27A31
BRACKET,STEERING DAMPER
€ 119.00
11-2
5175627A31
ref: 11-2
BRACKET,STEERING DAMPER
€ 119.00
12
0711008408
ref: 12
07130-08407
BOLT
€ 3.50
13-1
5175027A40
ref: 13-1
51750-46E00
DAMPER ASSEMBLY,STEERING
€ 794.50
13-2
5175027A50
ref: 13-2
51750-46E00
DAMPER ASSEMBLY,STEERING
€ 794.50
14
5175427A31
ref: 14
51760-40C01
BEARING, LOD END
€ 111.50
15
0831011108
ref: 15
08310-00107
NUT
€ 2.50
16
0926908002
ref: 16
BEARING(8X18X11)
€ 39.50
17
0910308107
ref: 17
BOLT(8X33)
€ 2.50
18
0832221088
ref: 18
08322-01087
WASHER
€ 2.00
19
6433940410
ref: 19
6433940410
20
0831931087
ref: 20
NUT
€ 2.50
21
0910308043
ref: 21
BOLT(8X45)
€ 4.50
22
0918008132
ref: 22
SPACER (8.5X15X10)
€ 3.50
23
6433940410
ref: 23
6433940410
24
0831931087
ref: 24
NUT
€ 2.50
25
5190008014KEY
ref: 25
LOCK ASSY,STEERING
€ 30.50
26
0832121057
ref: 26
08321-0105A
LOCK WASHER
€ 2.00
27
0211205208
ref: 27
02112-05207
SCREW 5X20
€ 3.00
