ELECTRICAL
GSXR1100 1987 (H) USA (E03)

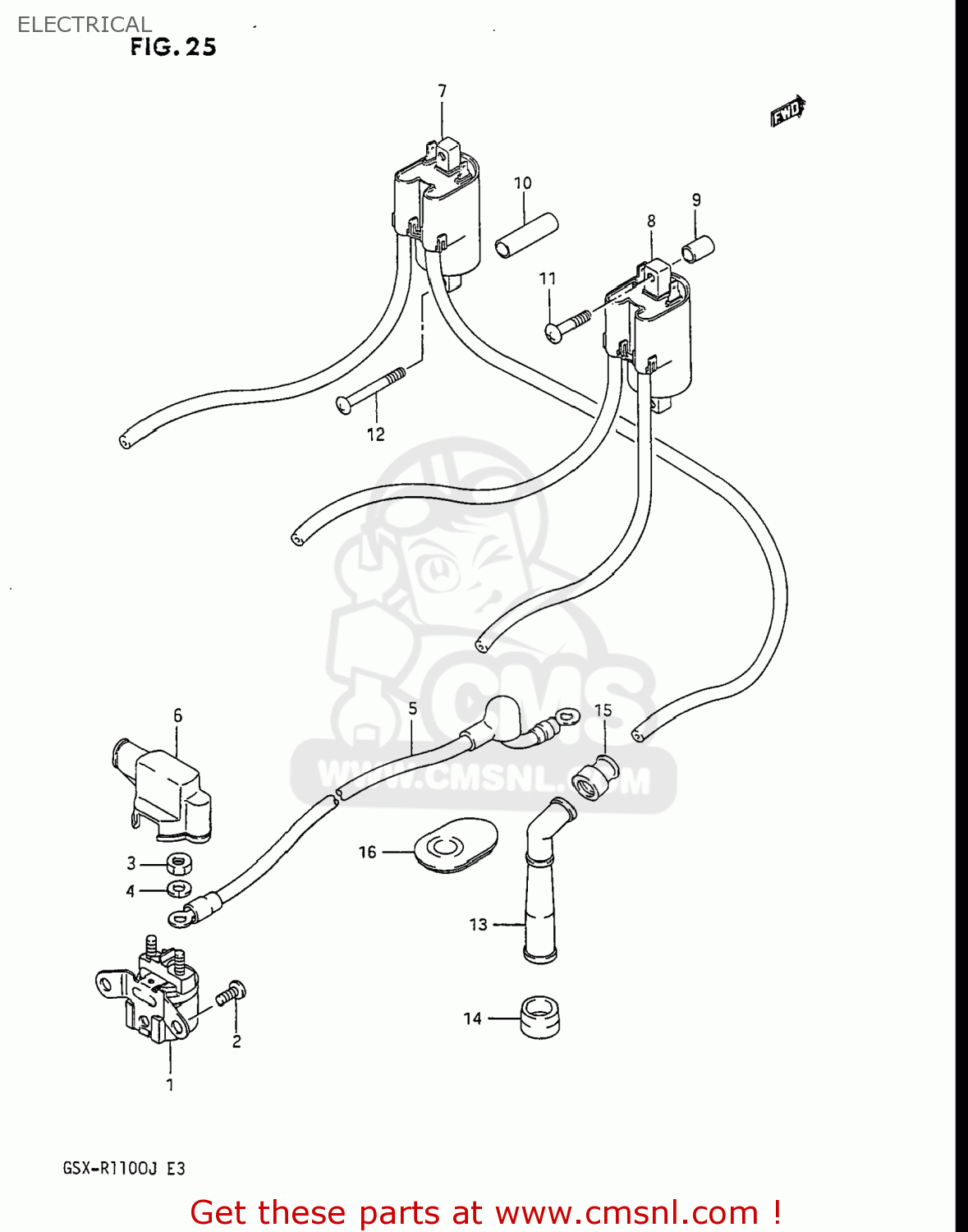

Electrical diagram GSXR1100 1987 (H) USA (E03)
ELECTRICAL GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0211206106
ref: 2
02112-0610B
SCREW
€ 1.50
3
0831011066
ref: 3
08310-0006A
NUT
€ 2.00
4
0832121066
ref: 4
08321-0106A
WASHER,LOCK
€ 2.00
5
3385006B00
ref: 5
WIRE,STARTER MOTOR LEAD
€ 30.00
6
3186144500
ref: 6
31861-46D00
CAP,STARTER RELAY
€ 6.50
7
3341027A00
ref: 7
33410-31311
COIL ASSEMBLY,IGNITION
€ 182.00
8
3342027A00
ref: 8
33410-31311
COIL ASSEMBLY,IGNITION
€ 182.00
9
0918006061
ref: 9
09180-06079
SPACER
€ 2.50
10
0918006130
ref: 10
SPACER(6.5X10.5X40)
€ 10.00
11
0211206356
ref: 11
02112-0635B
SCREW
€ 2.50
12
0211206606
ref: 12
02112-0660B
SCREW
€ 2.50
13-1
3351027A11
ref: 13-1
33510-48B10
CAP,SPARK PLUG
€ 29.50
13-2
3351048B10
ref: 13-2
CAP,SPARK PLUG
€ 29.50
14
3354127A22
ref: 14
33541-23E01
SEAL,SPARK PLUG
€ 7.00
15
3354298000
ref: 15
33542-38B00
SEAL,SPARK PLU
€ 4.50
16
3354327A21
ref: 16
33543-48B00
COVER,SPARK PLUG CAP
€ 12.50
