STAND
GSXR1100 1987 (H) USA (E03)

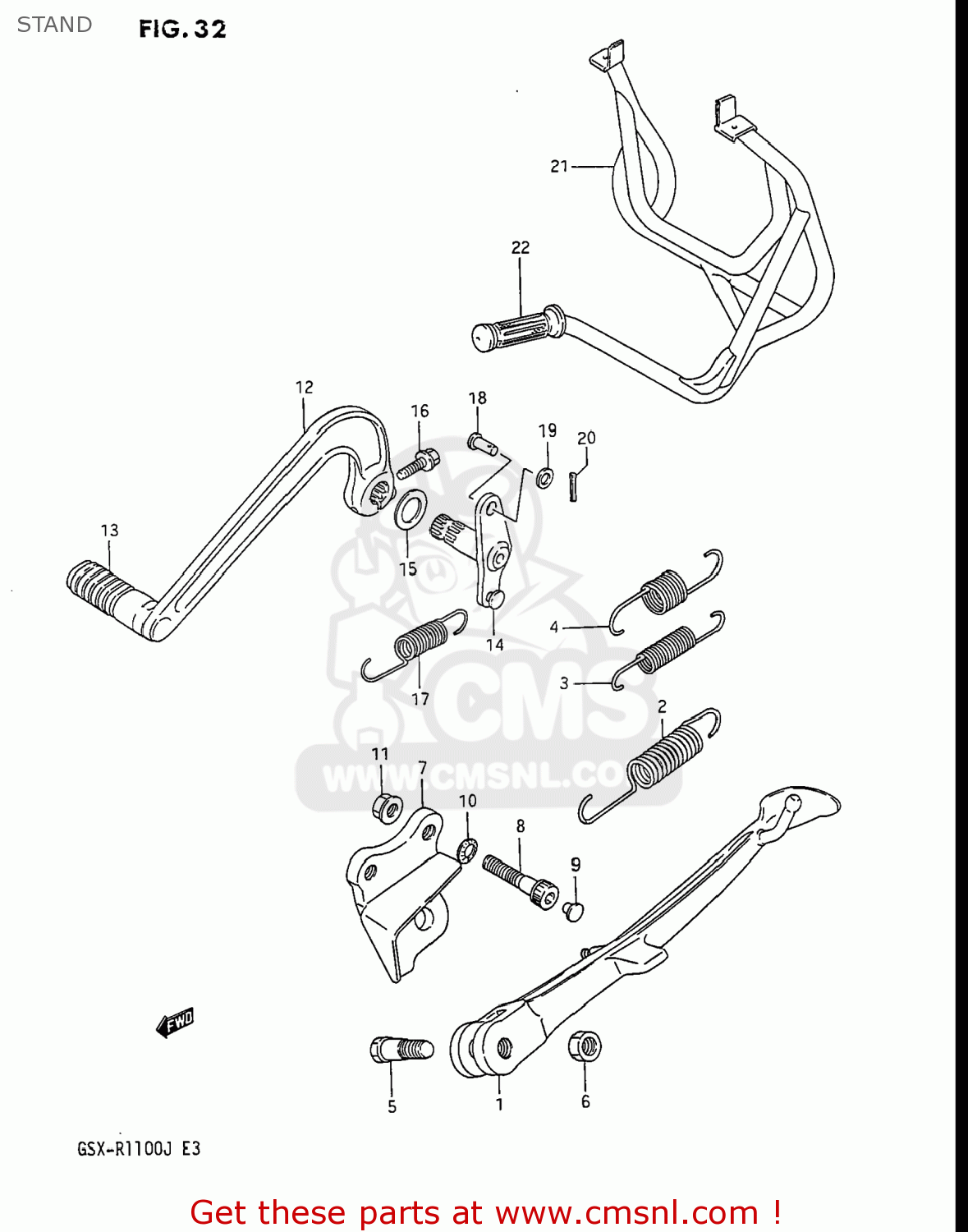

Stand diagram GSXR1100 1987 (H) USA (E03)
STAND GSXR1100 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231006B0013L
ref: 1
STAND,PROP
€ 60.00
2
0944314040
ref: 2
09443-14040-XC0
SPRING
€ 4.00
3
0944314038
ref: 3
09443-14038-XC0
SPRING
€ 8.50
4
0944322006
ref: 4
SPRING
€ 9.50
5
0911110036
ref: 5
BOLT(10X38)
€ 5.50
6
0831022107
ref: 6
08310-00107
NUT
€ 2.50
7-1
4233006B0113L
ref: 7-1
42330-06B20
BRACKET,PROP STAND
€ 30.50
7-2
4233006B20
ref: 7-2
BRACKET,PROP STAND
€ 30.50
8
0711008358
ref: 8
07130-08357
BOLT, FRONT RH
€ 4.50
9
4157504A00
ref: 9
CAP,ENGINE MOUNTING
€ 2.00
10
0916408015
ref: 10
WASHER
€ 3.00
11
0831616088
ref: 11
08316-10087
NUT
€ 2.50
12-1
4311027A01
ref: 12-1
43110-05C03
PEDAL,BRAKE
€ 129.00
12-2
4311027A30
ref: 12-2
43110-05C03
PEDAL,BRAKE
€ 129.00
13
4315104701
ref: 13
RUBBER,BRAKE PEDAL
€ 6.00
14
4312027A00
ref: 14
ARM COMP,BRAKE ROD
€ 28.50
15
4321204A00
ref: 15
WASHER,BRAKE PEDAL
€ 2.00
16-1
0910306119
ref: 16-1
BOLT
€ 2.50
16-2
0910306072
ref: 16-2
BOLT 6X25
€ 2.50
17
0944314044
ref: 17
09443-14044-XC0
SPRING
€ 4.00
18
0920006037
ref: 18
09200-06068
PIN
€ 5.00
19
0832221067
ref: 19
08322-01067
WASHER
€ 2.00
20
0411120158
ref: 20
04111-2015A
PIN
€ 1.50
21
4210027A00
ref: 21
STAND,CENTER
€ 0.00
22
5721149510
ref: 22
GRIP,L
€ 26.50
