COWLING (MODEL K 9SR)
GSXR1100 1990 (L) USA (E03)

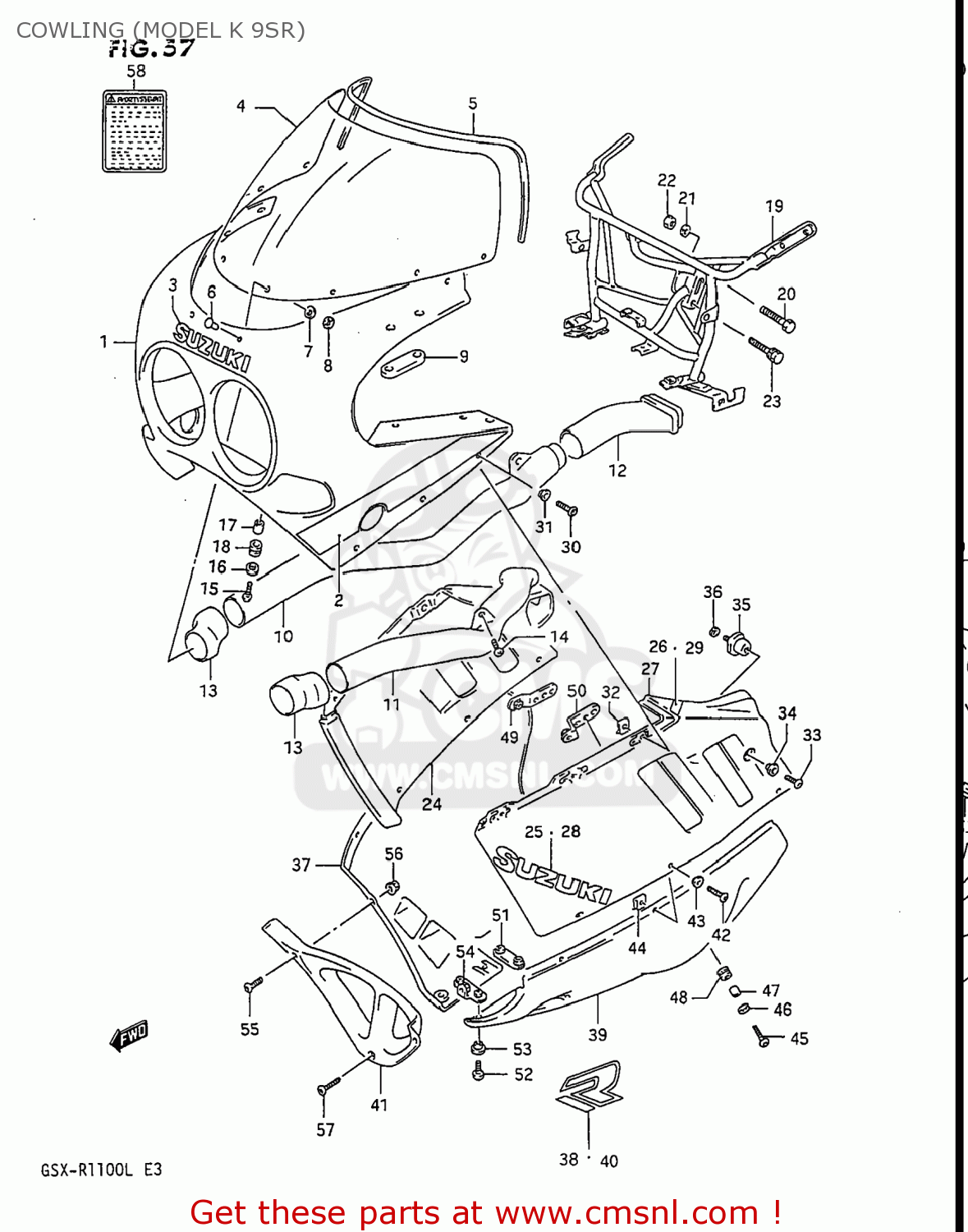

Cowling (model k 9sr) diagram GSXR1100 1990 (L) USA (E03)
COWLING (MODEL K 9SR) GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440040C019SR
ref: 1-1
BODY ASSY,COWLING
€ 981.50
1-1
9440040C019SR
ref: 1-1
BODY ASSY,COWLING
€ 981.50
1-2
9440040C029SR
ref: 1-2
94400-40C01-9SR
COWLING ASSEMBLY,BODY
€ 981.50
1-2
9440040C029SR
ref: 1-2
94400-40C01-9SR
COWLING ASSEMBLY,BODY
€ 981.50
2
6827040C0039K
ref: 2
TAPE SET,COWLING,UPPER
€ 38.50
3
6818505C1022R
ref: 3
68185-05C10-13L
EMBLEM,COWLING,FRONT
€ 10.50
4
9461040C00
ref: 4
SCREEN SET,WINDOW
€ 455.50
5
9463140C00
ref: 5
94631-44110
MOLDING
€ 18.00
6
9461640C01
ref: 6
94616-10D00
PIN,WINDSCREEN
€ 2.50
7
0932004007
ref: 7
09320-04501
CUSHION
€ 3.00
8
0914804032
ref: 8
NUT
€ 2.50
9
9457612C00
ref: 9
CUSHION,RR VIEW MIRRORR
€ 4.50
10
9445140C00
ref: 10
PIPE,AIR INTAKE FR,R
€ 33.00
11
9445240C00
ref: 11
PIPE,AIR INTAKE,FRONT
€ 34.00
12
9445317C00
ref: 12
PIPE,AIR INTAKE RR,R
€ 23.50
13
9445440C00
ref: 13
JOINT,AIR INTAKE
€ 16.00
14
0214206205
ref: 14
02142-0620A
SCREW, CENTER
€ 2.00
15
0913906056
ref: 15
SCREW(6X20)
€ 3.00
16
0916006056
ref: 16
WASHER(6.5X18X1)
€ 2.00
17
0918006152
ref: 17
09180-06262
SPACER
€ 3.00
18
0932009016
ref: 18
CUSHION
€ 2.50
19
9451040C02
ref: 19
94510-40C13
BRACE,COWLING
€ 236.50
20
0110708355
ref: 20
01500-0835B
BOLT
€ 3.50
21
0832121084
ref: 21
08321-0108A
WASHER,LOCK,8.
€ 2.50
22
0831012085
ref: 22
08310-0008A
NUT ,8MM
€ 1.50
23
0113708355
ref: 23
01570-0835A
BOLT
€ 2.00
24-1
9443040C009SR
ref: 24-1
COVER COMP,COWLING SIDE,RIGHT
€ 559.50
24-2
9443040C019SR
ref: 24-2
94430-40C00-9SR
COVER ASSEMBLY,COWLING
€ 559.50
25
681124340022R
ref: 25
EMBLEM
€ 9.50
26
6868540C0039K
ref: 26
TAPE,COWLING SIDE,RIGHT
€ 10.00
27-1
9444040C009SR
ref: 27-1
COVER COMP,COWLING SIDE,LEFT
€ 280.00
27-2
9444040C019SR
ref: 27-2
94440-40C00-9SR
COVER COMP,COWLING SIDE,LEFT
€ 280.00
28
681124340022R
ref: 28
EMBLEM
€ 9.50
29
6869540C0039K
ref: 29
TAPE,COWLING SIDE,LEFT
€ 12.50
29
6869540C0039K
ref: 29
TAPE,COWLING SIDE,LEFT
€ 12.50
29
6869540C0039K
ref: 29
TAPE,COWLING SIDE,LEFT
€ 12.50
29
6869540C0039K
ref: 29
TAPE,COWLING SIDE,LEFT
€ 12.50
30
0913905032
ref: 30
SCREW(5X18)
€ 2.50
31
0916105017
ref: 31
WASHER(5.2X14X1.5)
€ 3.00
32
9448432B00
ref: 32
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
33
0913906027
ref: 33
SCREW(6X12)
€ 3.00
34
0916106021
ref: 34
WASHER(6.3X16X1.5)
€ 2.50
35
9457004A00
ref: 35
CUSHION,COWLING
€ 12.50
36
0832121064
ref: 36
08321-0106A
WASHER,LOCK
€ 2.00
37-1
9447040C502GZ
ref: 37-1
COWLING,UNDER,R
€ 239.50
37-2
9447040C512GZ
ref: 37-2
94470-40C50-2GZ
COWLING COMP,UNDER,RIGHT
€ 239.50
38
6819106B002GR
ref: 38
EMBLEM,COWLING UNDER
€ 19.00
39-1
9448040C502GZ
ref: 39-1
COWLING COMP,UNDER,LEFT
€ 371.00
39-2
9448040C512GZ
ref: 39-2
94480-40C50-2GZ
COWLING COMP,UNDER,LEFT
€ 371.00
40
6819106B002GR
ref: 40
EMBLEM,COWLING UNDER
€ 19.00
41-1
9449817C0022R
ref: 41-1
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
41-2
9449817C01
ref: 41-2
94498-17C02-019
COWLING,UNDER,CENTER
€ 80.50
42
0913905032
ref: 42
SCREW(5X18)
€ 2.50
43
0916105017
ref: 43
WASHER(5.2X14X1.5)
€ 3.00
44
9448432B00
ref: 44
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
45
0913906028
ref: 45
SCREW(6X20)
€ 3.50
46
0916006056
ref: 46
WASHER(6.5X18X1)
€ 2.00
47
0918006152
ref: 47
09180-06262
SPACER
€ 3.00
48
0932009016
ref: 48
CUSHION
€ 2.50
49
9458017C01
ref: 49
94580-40C00
BRACKET
€ 6.00
50
9459017C01
ref: 50
94590-40C00
BRACE,COWLING UNDER,LH
€ 7.00
51
9449306B00
ref: 51
BRACE,COWLING LWR COVER RR
€ 4.00
52
0913906039
ref: 52
SCREW(6X16)
€ 2.50
53
0916106021
ref: 53
WASHER(6.3X16X1.5)
€ 2.50
54
9449006B00
ref: 54
BRACE,COWLING LWR COVER
€ 4.50
55
0913905025
ref: 55
SCREW(5X14)
€ 2.00
56
0831626055
ref: 56
08316-2005A
NUT
€ 2.00
57
0913906030
ref: 57
SCREW(6X16)
€ 3.50
58-1
6861248B00
ref: 58-1
68922-14F00
LABEL (WARNING SCREEN)
€ 6.50
58-2
6861340C11
ref: 58-2
68613-21E10
LABEL (WARNING)
€ 8.50
58-2
6861340C11
ref: 58-2
68613-21E10
LABEL (WARNING)
€ 8.50
58-2
6861340C11
ref: 58-2
68613-21E10
LABEL (WARNING)
€ 8.50
58-2
6861340C11
ref: 58-2
68613-21E10
LABEL (WARNING)
€ 8.50
