Buy Suzuki GSXR Parts Online
home
MUFFLER
GSXR1100 1990 (L) USA (E03)

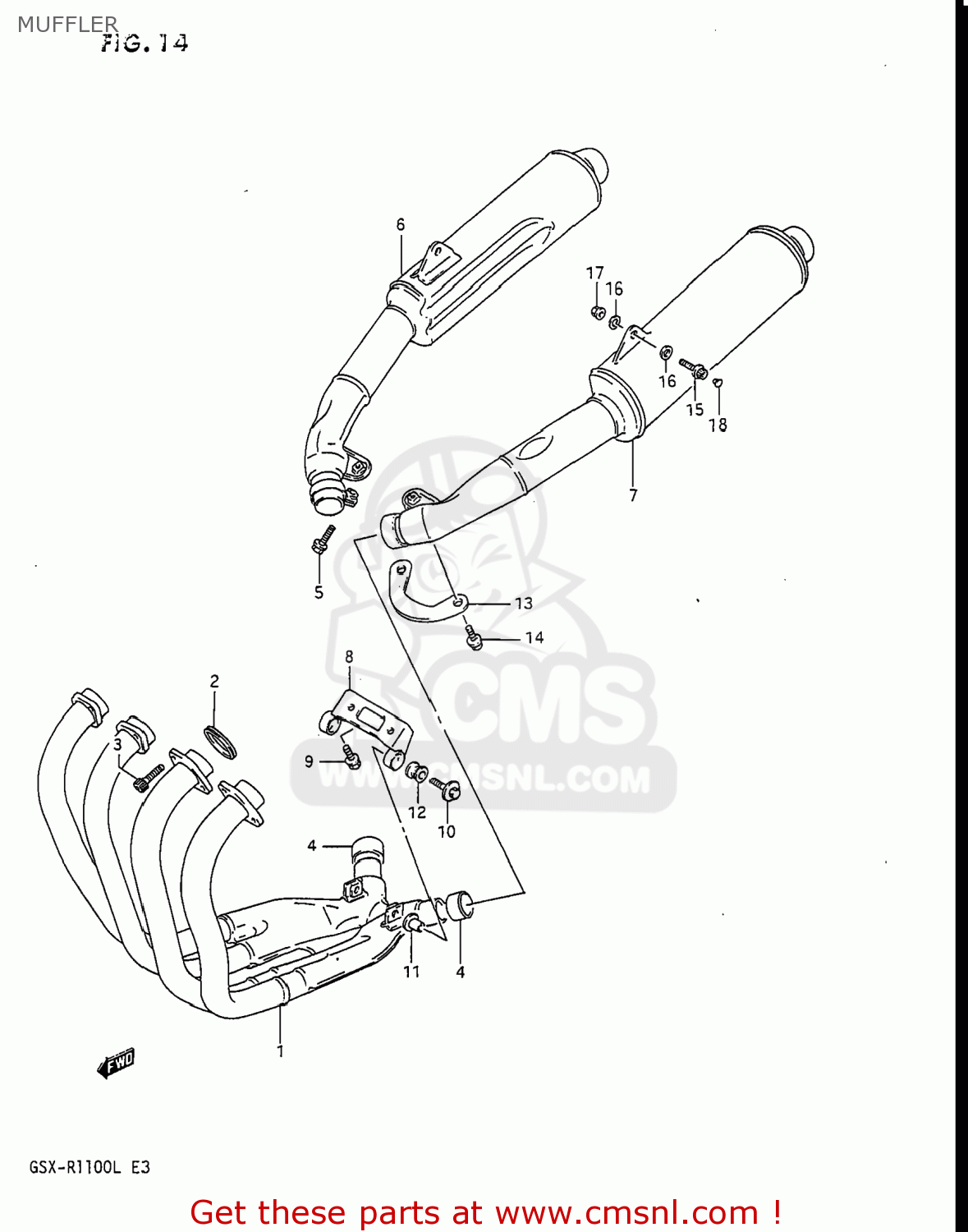

Muffler diagram GSXR1100 1990 (L) USA (E03)
MUFFLER GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1410040C01H01
ref: 1-1
14100-40C04-H01
PIPE,EXHAUST
€ 813.00
1-2
1410040C03H01
ref: 1-2
14100-40C04-H01
PIPE,EXHAUST
€ 813.00
2
1418140C00
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3
0711008255
ref: 3
07130-0825B
BOLT
€ 3.50
4
1477144B00
ref: 4
CONNECTOR,MUFFLER
€ 19.50
5
0151708408
ref: 5
01550-08407
BOLT (8X40)
€ 3.50
6-1
1431040C21H01
ref: 6-1
14310-40C71-H01
BODY,MUFFLER
€ 323.00
6-2
1431040C70H01
ref: 6-2
14310-40C71-H01
BODY,MUFFLER
€ 323.00
7-1
1434040C21H01
ref: 7-1
14340-40C72-H01
BODY,MUFFLER
€ 346.00
7-2
1434040C70H01
ref: 7-2
14340-40C72-H01
BODY,MUFFLER
€ 346.00
8
1477040C01
ref: 8
14770-40C10
DAMPER,MUFFLER SUPPORT
€ 33.50
9
0910008240
ref: 9
09100-08299
BOLT(8X20)
€ 3.50
10
0911808080
ref: 10
BOLT(8X35)
€ 2.50
11
0918008157
ref: 11
SPACER(8.6X12X18.5)
€ 5.50
12
0932012038
ref: 12
09320-12033
CUSHION
€ 52.00
13
1476140C00
ref: 13
14761-40C01
PLATE,MUFFLER JOINT
€ 16.00
14
0112708166
ref: 14
01550-0816A
BOLT
€ 3.00
15
0712010357
ref: 15
07120-1035B
BOLT
€ 4.00
16
0916010066
ref: 16
09160-10093
WASHER (10.5X24X2.3)
€ 2.00
17
0831616105
ref: 17
08316-1010B
NUT
€ 2.00
18
0925008012
ref: 18
CAP(OD:12)
€ 2.00
