WIRING HARNESS
GSXR1100 1990 (L) USA (E03)

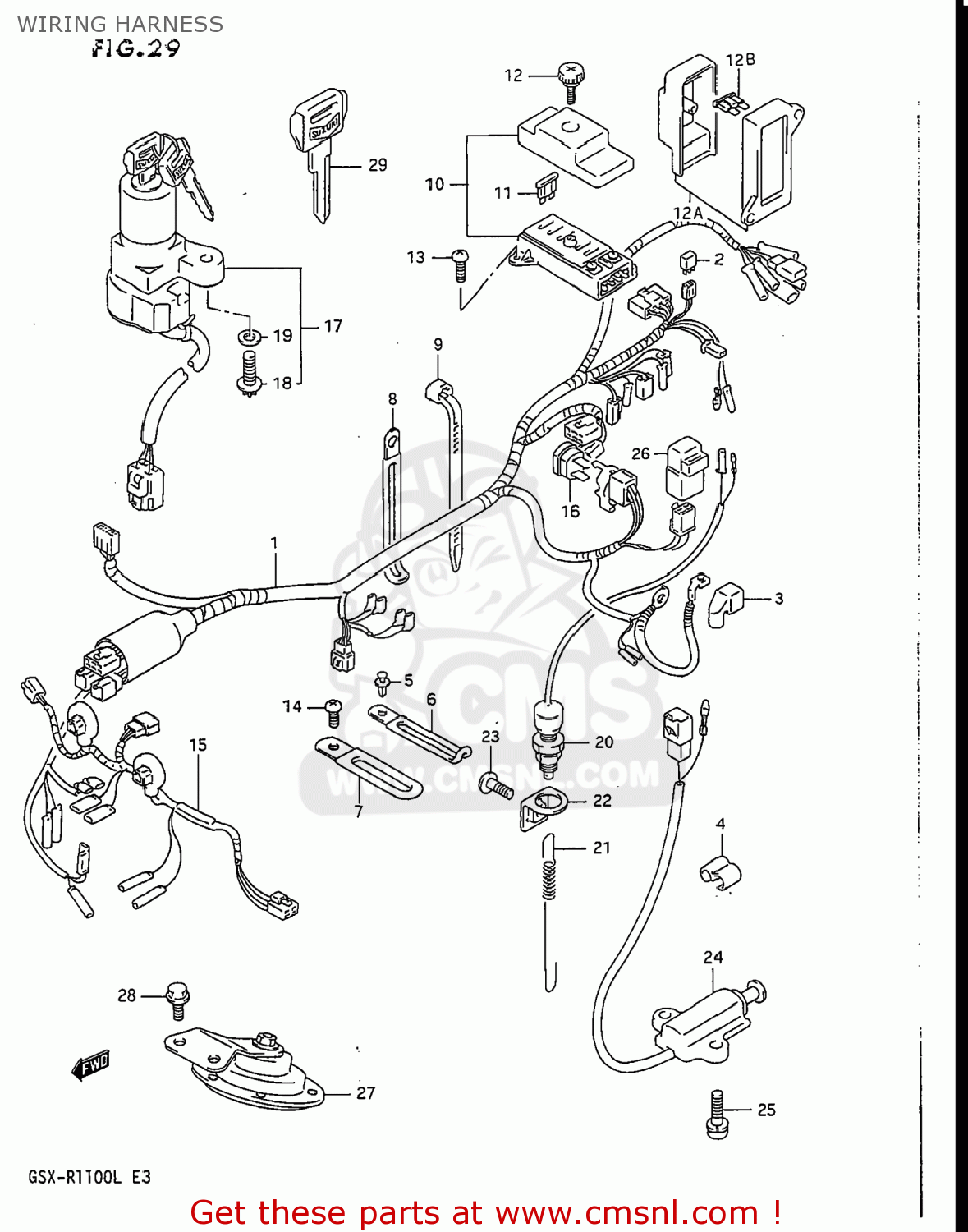

Wiring harness diagram GSXR1100 1990 (L) USA (E03)
WIRING HARNESS GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661040C10
ref: 1-1
36610-40C52
HARNESS,WIRING
€ 327.00
1-2
3661040C50
ref: 1-2
36610-40C52
HARNESS,WIRING
€ 327.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3362427A00
ref: 3
33624-43500
CAP,BATTERY PLUS
€ 3.50
4
0940800002
ref: 4
CLIP
€ 2.00
5
0940907305
ref: 5
09409-07305-5PK
CLIP
€ 1.50
6-1
0940406403
ref: 6-1
09404-06432
CLAMP
€ 2.50
6-2
0940406404
ref: 6-2
09404-06433
CLAMP
€ 3.00
7
0940405403
ref: 7
CLAMP
€ 2.00
8
0940406415
ref: 8
09404-06433
CLAMP
€ 3.00
9-1
0940714403
ref: 9-1
CLAMP(L:125)
€ 2.50
9-2
0940718402
ref: 9-2
CLAMP(L:165)
€ 2.50
10
3674017C00
ref: 10
36740-27A00
BOX ASSEMBLY,FUSE
€ 77.50
11
0948110101
ref: 11
FUSE(10A)
€ 2.50
12
3672117C00
ref: 12
03541-0420A
SCREW,FUSE BOX
€ 2.50
12A
3674017D00
ref: 12A
BOX ASSY,FUSE
€ 72.00
12B-1
0948110101
ref: 12B-1
FUSE(10A)
€ 2.50
12B-2
0948120101
ref: 12B-2
FUSE(20A)
€ 2.00
13
0214205164
ref: 13
02142-0516A
SCREW
€ 2.50
14
0214205128
ref: 14
02142-05127
SCREW
€ 1.50
15-1
3685640C00
ref: 15-1
36856-17D00
WIRE,HEADLAMP LEAD
€ 61.50
15-2
3685617D00
ref: 15-2
WIRE,HEADLAMP LEAD
€ 61.50
16
3675005A00
ref: 16
BREAKER ASSY,CIRCUT
€ 36.50
17
3710017C00
ref: 17
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
18
0913906026
ref: 18
SCREW(6X18)
€ 2.50
19
0832131066
ref: 19
08321-0106A
WASHER
€ 2.00
20
3774004A10
ref: 20
SWITCH ASSY,STOP LAMP
€ 22.00
21
0944306012
ref: 21
SPRING
€ 3.00
22
4325117C01
ref: 22
BRACKET,STOP LAMP SWITCH
€ 9.50
23
0913906027
ref: 23
SCREW(6X12)
€ 3.00
24
3784017C01
ref: 24
37840-32C01
SWITCH ASSEMBLY,SIDE STAND
€ 67.50
25
0211236165
ref: 25
02112-3616A
SCREW
€ 2.50
26
3874024B10
ref: 26
38740-24X50
RELAY ASSEMBLY
€ 37.50
27
3850040C00
ref: 27
HORN ASSEMBLY
€ 57.00
28
0151706108
ref: 28
01550-06107
BOLT
€ 2.50
29
3714603A80
ref: 29
37146-26D10
KEY,BLANK
€ 41.50
