FUEL COCK

GSXR1100 1990 (L) USA (E03)

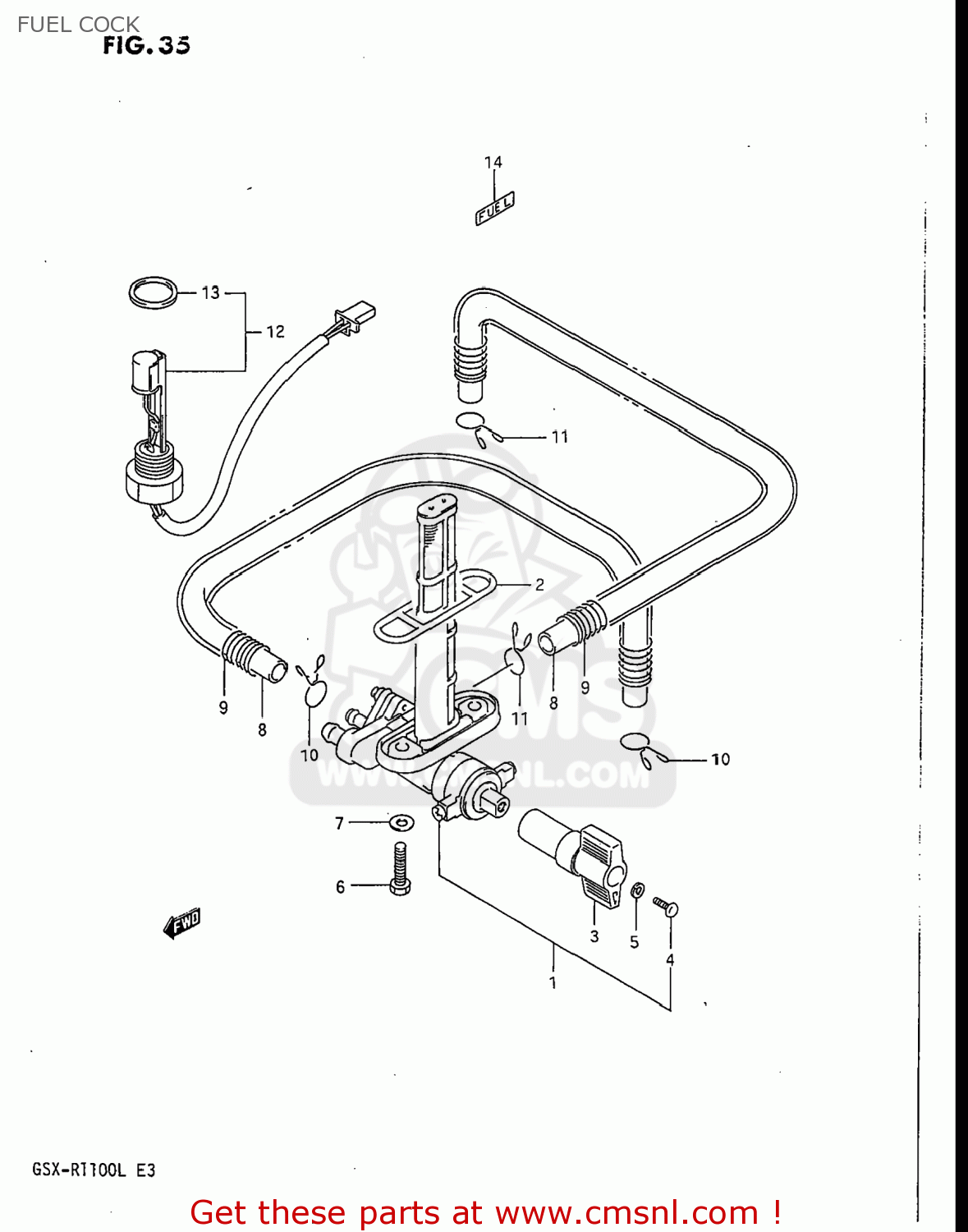

Fuel cock diagram GSXR1100 1990 (L) USA (E03)

FUEL COCK GSXR1100 1990 (L) USA (E03)

FUEL COCK GSXR1100 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4430017C00
ref: 1-1
44300-17CV0

COCK ASSEMBLY,FUEL

€ 243.00

1-2

4430017C01
ref: 1-2
44300-17CV0

COCK ASSEMBLY,FUEL

€ 243.00

2

4430517C00
ref: 2

O RING,FUEL TANK JOINT

€ 9.00

3

4430617C00
ref: 3

LEVER,FUEL COCK

€ 16.00

4

0211204126
ref: 4
02112-0412A

SCREW

€ 1.50

5

0832121046
ref: 5
08321-0104A

LOCK WASHER

€ 2.00

6

0912806006
ref: 6
09128-06057

BOLT(6X20)

€ 2.00

7

0916806026
ref: 7

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

8

0935270103300
ref: 8
09352-70103-600

HOSE

€ 8.00

9

0944013047
ref: 9

SPRING

€ 6.00

10

0940110402
ref: 10

CLIP

€ 7.00

11

0940110201
ref: 11
09401-10201-XC0

CLIP

€ 2.00

12

3481040C00
ref: 12
34810-40C01

GAUGE ASSEMBLY,FUEL LEVEL

€ 120.50

13

3482540C00
ref: 13

GASKET,FUEL LEVEL GAUGE (NAS)

€ 6.50

14

4439517C00
ref: 14

LABEL (FUEL)

€ 0.00
