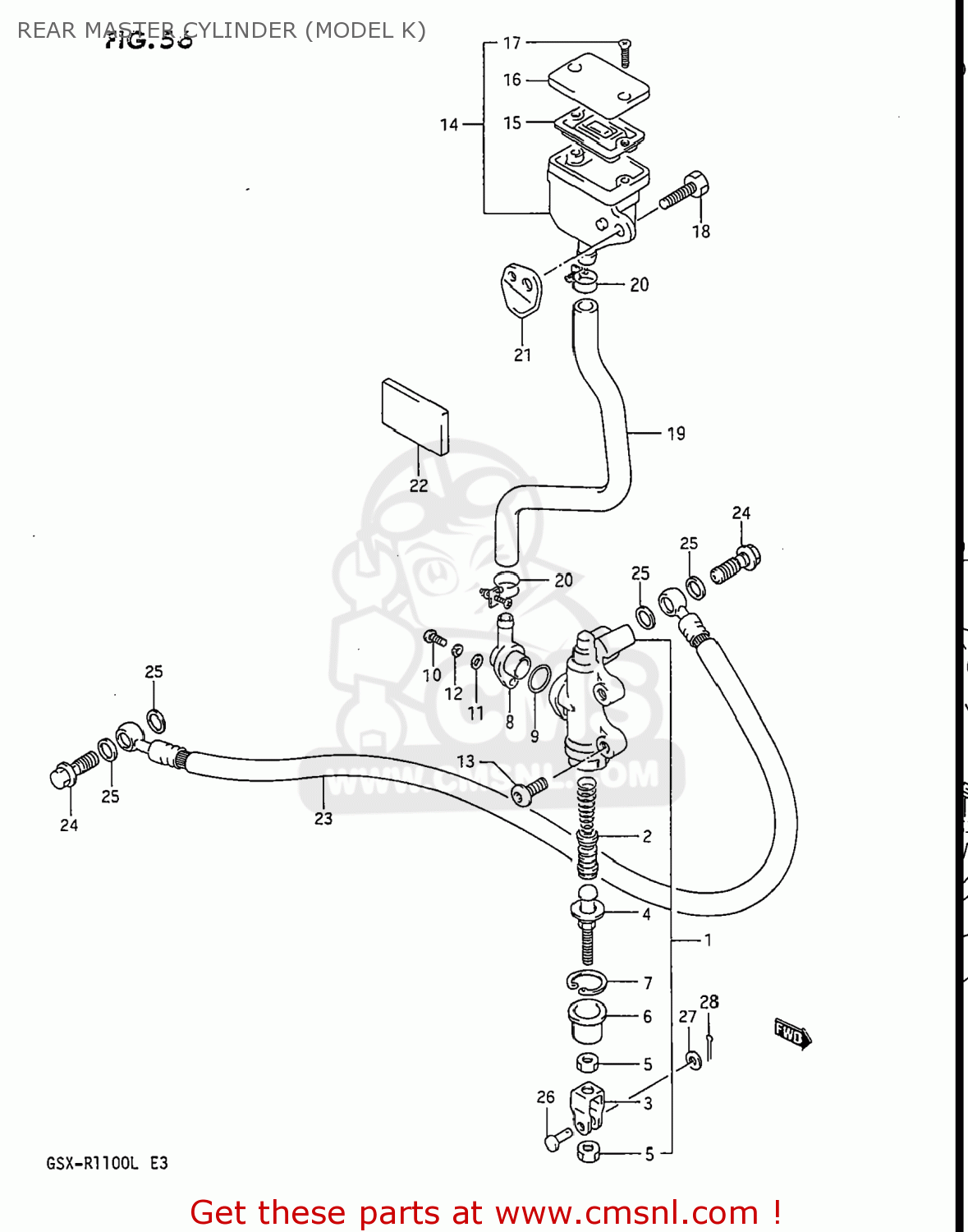

REAR MASTER CYLINDER (MODEL K)

ref

part #

description

quantity

1

6960017C00
ref: 1
69600-17C01

CYLINDER ASSEMBLY,REAR MASTER

€ 194.50

1

6960017C00
ref: 1
69600-17C01

CYLINDER ASSEMBLY,REAR MASTER

€ 194.50

2

6960016820
ref: 2
69600-04810

PISTON/CUP SET

€ 42.50

3

6969227A30
ref: 3

YOKE

€ 12.50

4

6967048B00
ref: 4

ROD,PUSH

€ 20.50

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6967205A00
ref: 8

CONNECTOR

€ 4.50

9

6968634200
ref: 9

O RING

€ 3.50

10

0211204124
ref: 10
02112-0412A

SCREW

€ 1.50

11

0832221045
ref: 11
08322-0104A

WASHER

€ 5.00

12

0832121045
ref: 12
08321-0104A

LOCK WASHER

€ 2.00

13

0913908009
ref: 13

SCREW(8X22)

€ 6.50

14

6974038B20
ref: 14
69740-38B21

TANK ASSEMBLY,RESERVOIR

€ 85.50

15

5966704700
ref: 15

DIAPHRAGM

€ 8.00

16

6966924A00
ref: 16
69669-24A01

CAP

€ 12.00

17

6968904A00
ref: 17

SCREW

€ 2.00

18

0110706257
ref: 18
01500-06257

BOLT

€ 2.00

19

6973117C10
ref: 19

HOSE,RESERVOIR TANK

€ 20.00

20

0940016302
ref: 20
09400-16304

CLAMP

€ 4.50

21

6975117C00
ref: 21

BRACKET,RESERVOIR TANK RR

€ 4.50

22

6973217C01
ref: 22
47451-38A01

CUSHION,PANEL

€ 3.00

23

6948040C00
ref: 23

HOSE COMP,REAR BRAKE

€ 88.50

24

0936010017
ref: 24

BOLT UNION

€ 6.50

25

0916110009
ref: 25

WASHER(10X15X1.5)

€ 2.00

26

0920006037
ref: 26
09200-06068

PIN

€ 5.00

27

0832221067
ref: 27
08322-01067

WASHER

€ 2.00

28

0411120158
ref: 28
04111-2015A

PIN

€ 1.50

28

0411120158
ref: 28
04111-2015A

PIN

€ 1.50
