REAR SWINGING ARM (MODEL L)
GSXR1100 1990 (L) USA (E03)

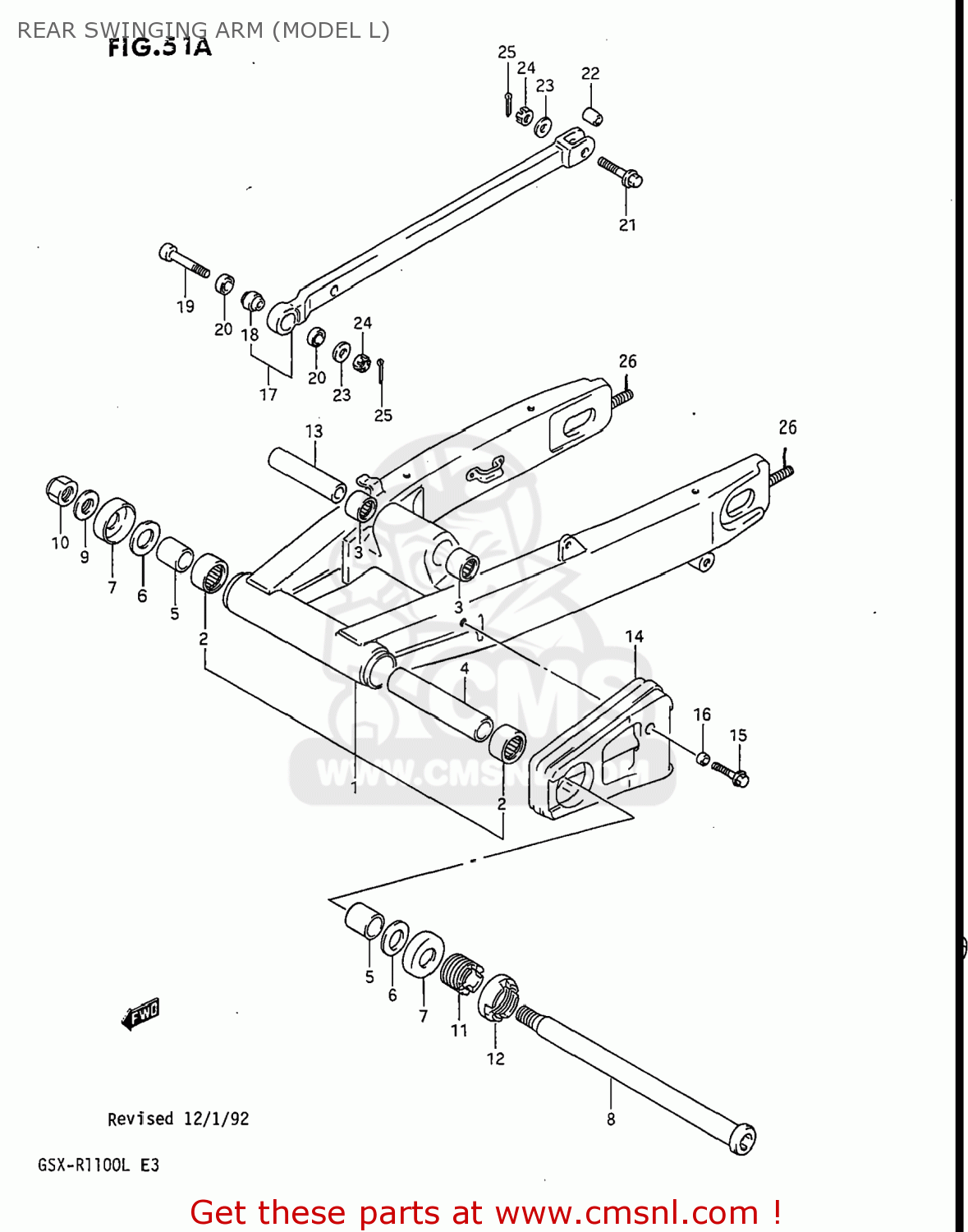

Rear swinging arm (model l) diagram GSXR1100 1990 (L) USA (E03)
REAR SWINGING ARM (MODEL L) GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100040C10
ref: 1
SWING ARM ASSEMBLY,REAR
€ 1,130.00
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
6128217C00
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 11.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
€ 36.00
6-1
0821120381
ref: 6-1
WASHER
€ 3.00
6-2
0821120382
ref: 6-2
WASHER
€ 3.00
7
6126217C00
ref: 7
DUST SEAL,RR SWGARM PIVOT
€ 8.00
8
6121140C00
ref: 8
SHAFT,REAR SWING ARM PIVOT
€ 90.50
9
0832211188
ref: 9
08322-0118B
WASHER
€ 2.50
10
0915918007
ref: 10
NUT
€ 14.00
11
6121340C30
ref: 11
BOLT,RR SWGARM PIVOT
€ 63.50
12
6121440C30
ref: 12
61214-40C31
NUT,REAR SWING ARM PIVOT
€ 16.50
13
6231740C10
ref: 13
SPACER,RR CUSHION ROD
€ 28.50
14
6127340C00
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
€ 41.00
15
0911606111
ref: 15
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
16
0918006002
ref: 16
09180-06283
SPACER
€ 2.00
17
6430040820
ref: 17
64300-40821
TORQUE LINK SET,REAR
€ 158.50
18
6435240411
ref: 18
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
19
0910608048
ref: 19
BOLT(8X48)
€ 4.50
20
6433940410
ref: 20
6433940410
21
0910308160
ref: 21
BOLT(8X38)
€ 6.00
22
6433620A00
ref: 22
SPACER,RR TORQUE LINK RR
€ 8.00
23
0832211088
ref: 23
08322-01087
WASHER
€ 2.00
24
0831441088
ref: 24
08314-4008B
NUT 8MM
€ 2.50
25
0411120208
ref: 25
04111-2020A
PIN 20X20
€ 1.50
