HEADLAMP
GSXR1100 1990 (L) USA (E03)

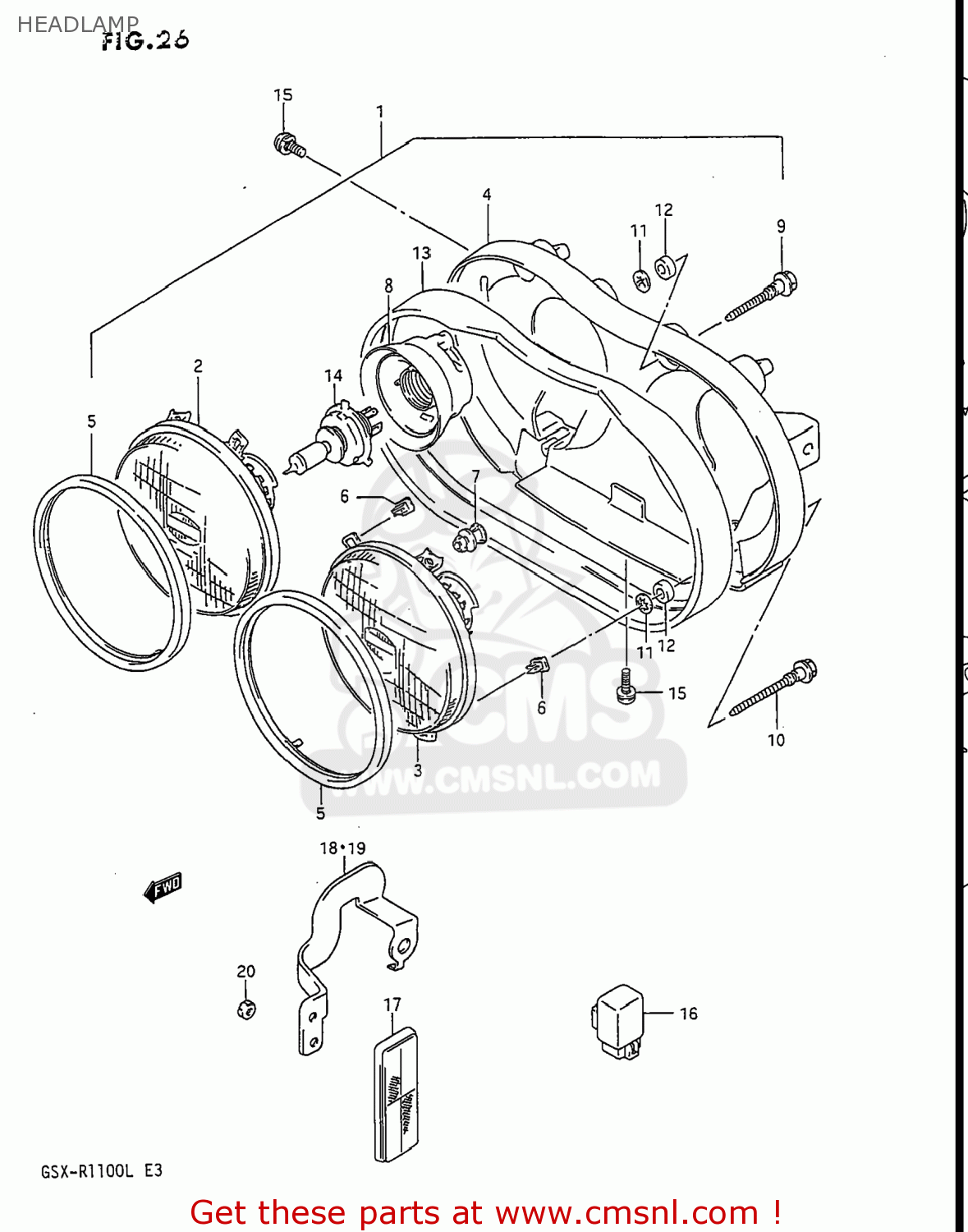

Headlamp diagram GSXR1100 1990 (L) USA (E03)
HEADLAMP GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510040C30999
ref: 1
35100-40C31-999
HEADLAMP ASSEMBLY
€ 151.50
2
3512117C30
ref: 2
LAMP UNIT,L
€ 0.00
3
3532117C30
ref: 3
LAMP UNIT,R
€ 0.00
4
3524005C02
ref: 4
HOUSING,HEAD LAMP
€ 67.50
5
3512704A00
ref: 5
RING,RETAINING
€ 15.00
6
3515205C00
ref: 6
35135-12E20
NUT,HEADLAMP ADJUSTER
€ 2.50
7
3516204A00
ref: 7
SCREW,SPHERICAL
€ 2.00
8-1
3517320A01
ref: 8-1
COVER,SOCKET
€ 14.50
8-2
3517306B50
ref: 8-2
COVER, SOCKET,LH
€ 10.00
9
3515105C00
ref: 9
35153-05C00
SCREW,HEADLAMP ADJUST
€ 4.50
10
3515305C00
ref: 10
SCREW,ADJUSTER
€ 4.50
11
3515732B00
ref: 11
09148-05006
WASHER
€ 1.50
12
3516705C00
ref: 12
BUSHING
€ 1.50
13
3524240C00
ref: 13
GASKET,HEADLAMP HOUSING (NAS)
€ 47.50
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
0211236165
ref: 15
02112-3616A
SCREW
€ 2.50
16
3864017C00
ref: 16
38740-24X50
RELAY ASSY,HEADLAMP
€ 37.50
17
3595040C00
ref: 17
35950-43431
REFLEX REFLECTOR ASSEMBLY
€ 12.00
18
3595640C01
ref: 18
BRACKET,FR SIDE REFLECTOR,R
€ 7.50
19
3595740C01
ref: 19
BRACKET,FR SIDE REFLECTOR,L
€ 7.50
20
0836115055
ref: 20
08361-1505B
NUT
€ 2.50
