CYLINDER

GSXR1100 1990 (L) USA (E03)

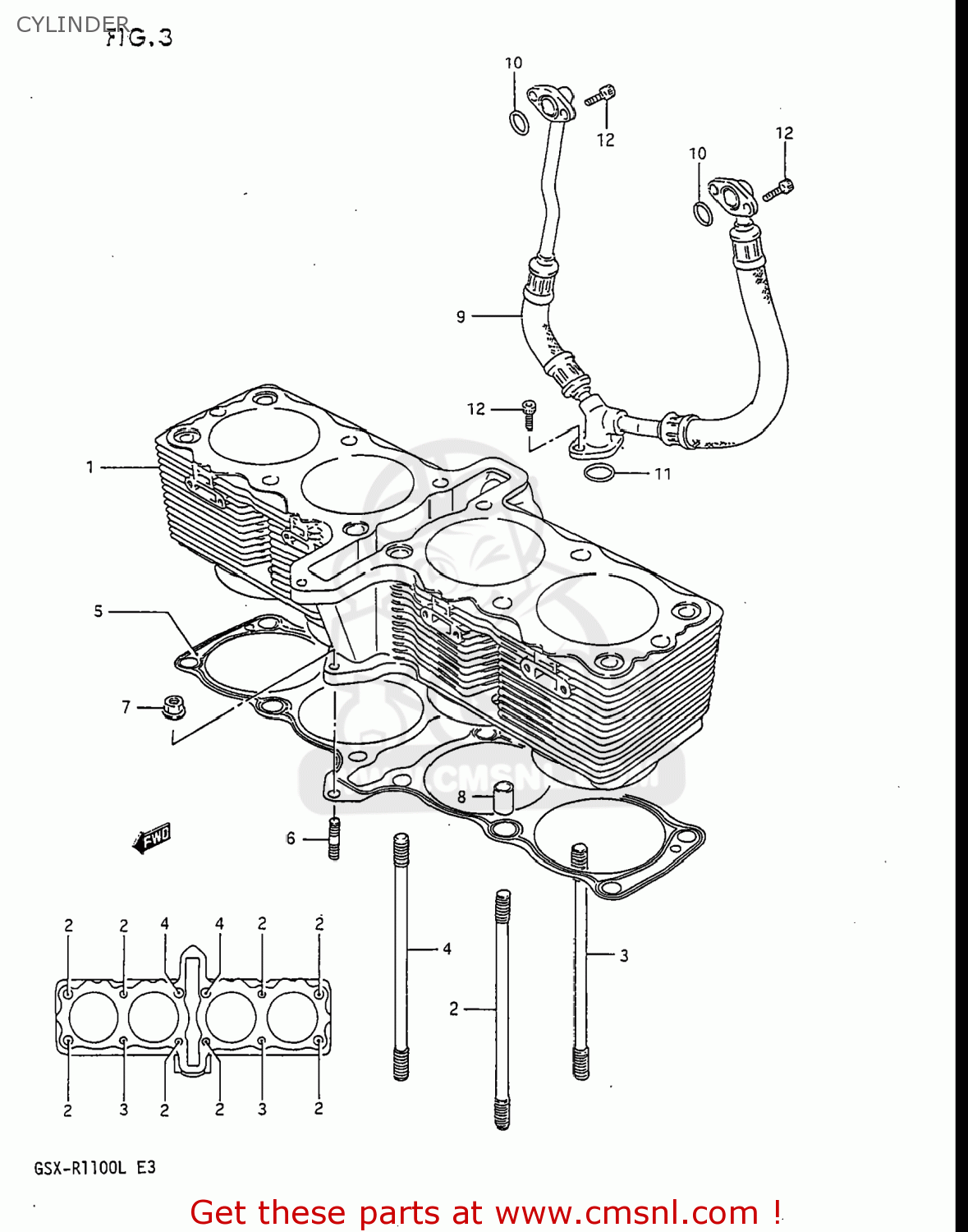

Cylinder diagram GSXR1100 1990 (L) USA (E03)

CYLINDER GSXR1100 1990 (L) USA (E03)

CYLINDER GSXR1100 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121040C00
ref: 1-1
11210-40C02

CYLINDER

€ 829.00

1-2

1121040C01
ref: 1-2
11210-40C02

CYLINDER

€ 829.00

1-3

1121040C10
ref: 1-3
11210-40C12

CYLINDER

€ 1,160.00

1-4

1121040C11
ref: 1-4
11210-40C12

CYLINDER

€ 1,160.00

2

0910810081
ref: 2
09108-10145

BOLT,STUD

€ 12.50

3

0910810099
ref: 3

BOLT,STUD

€ 15.50

4

0910810108
ref: 4
09108-10112

BOLT,STUD

€ 9.00

5

1124148B00
ref: 5
11241-32F00

GASKET,CYLINDER (NAS)

€ 18.00

6

0142106205
ref: 6
01421-0620A

STUD BOLT L:20

€ 2.50

7

0831616064
ref: 7
08316-1006B

NUT 6MM

€ 2.50

8

0920613006
ref: 8
09206-13017

PIN

€ 9.00

9

1132848B01
ref: 9
11328-48B04

HOSE

€ 283.50

10

0928014011
ref: 10

O RING(D:2.5,ID:13.8)

€ 3.50

11

0928015007
ref: 11

O RING(D:2.4,ID:15.8)

€ 2.00

12

0711006165
ref: 12
07130-0616B

BOLT

€ 3.00
