STEERING STEM (MODEL L)

GSXR1100 1990 (L) USA (E03)

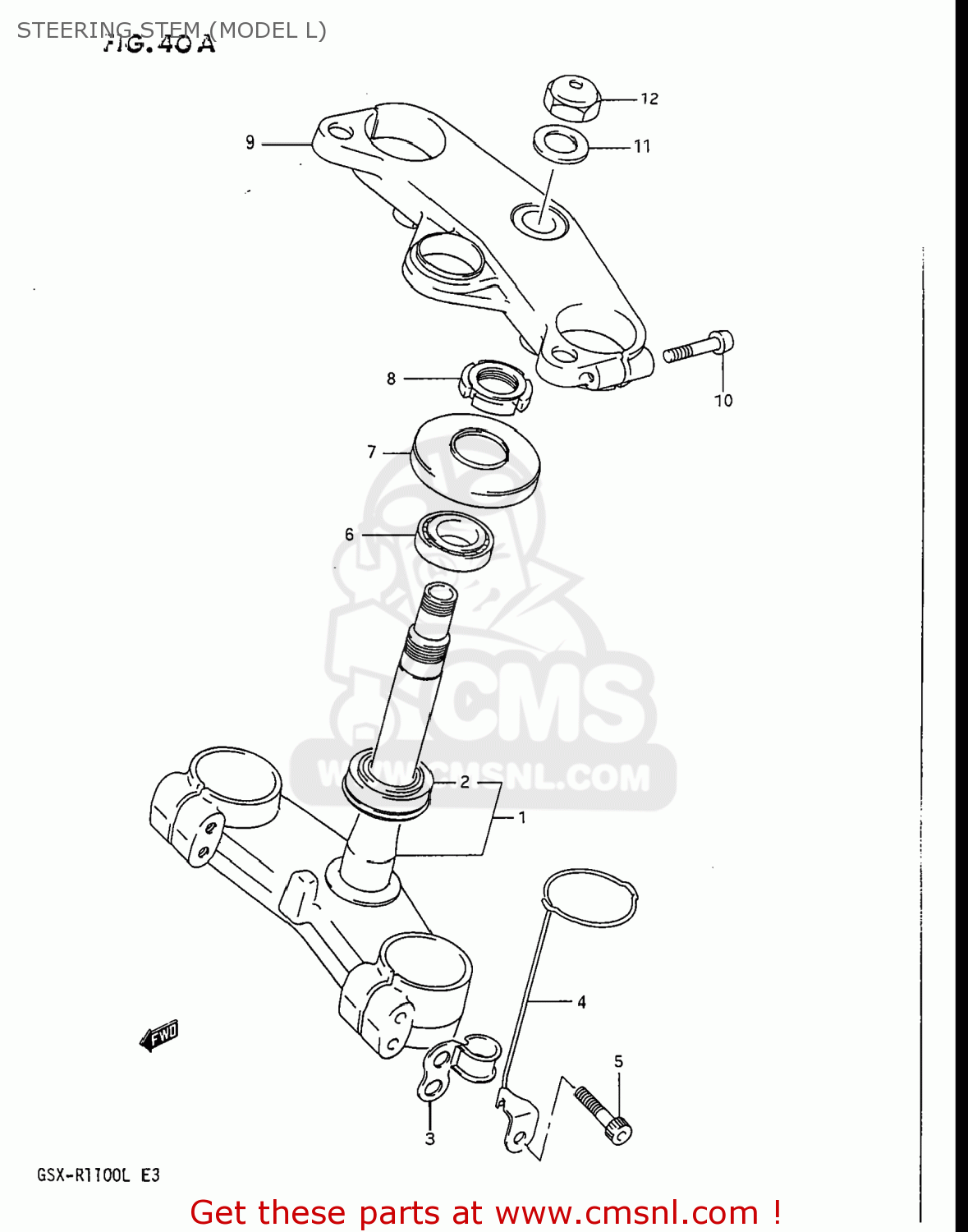

Steering stem (model l) diagram GSXR1100 1990 (L) USA (E03)

STEERING STEM (MODEL L) GSXR1100 1990 (L) USA (E03)

STEERING STEM (MODEL L) GSXR1100 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141040C00
ref: 1

STEM,STEERING

€ 422.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

3493840C50
ref: 3
34938-17E00

GUIDE,METER CABLE NO.2

€ 8.00

4

5174040C00
ref: 4

HOLDER,STEERING DAMPER

€ 11.50

5

0711010455
ref: 5
09106-10022-XC0

BOLT

€ 4.00

6

0926525008
ref: 6
09265-25019

TAPER,ROLLER BEARING

€ 48.50

7

0928534007
ref: 7
09285-34010

SEAL OIL

€ 18.50

8

5163128000
ref: 8

NUT,STEERING STEM(25X44X10)

€ 12.50

9

5131140C30
ref: 9

STEM HEAD,STEERING

€ 0.00

10

5145127A40
ref: 10
51451-41C00

BOLT,FORK INNER TUBE F

€ 17.50

11

5135624B01
ref: 11

WASHER(22.5X32X1.6)

€ 3.00

12

5135328A10
ref: 12

NUT

€ 30.00
