CYLINDER HEAD COVER
GSXR1100 1990 (L) USA (E03)

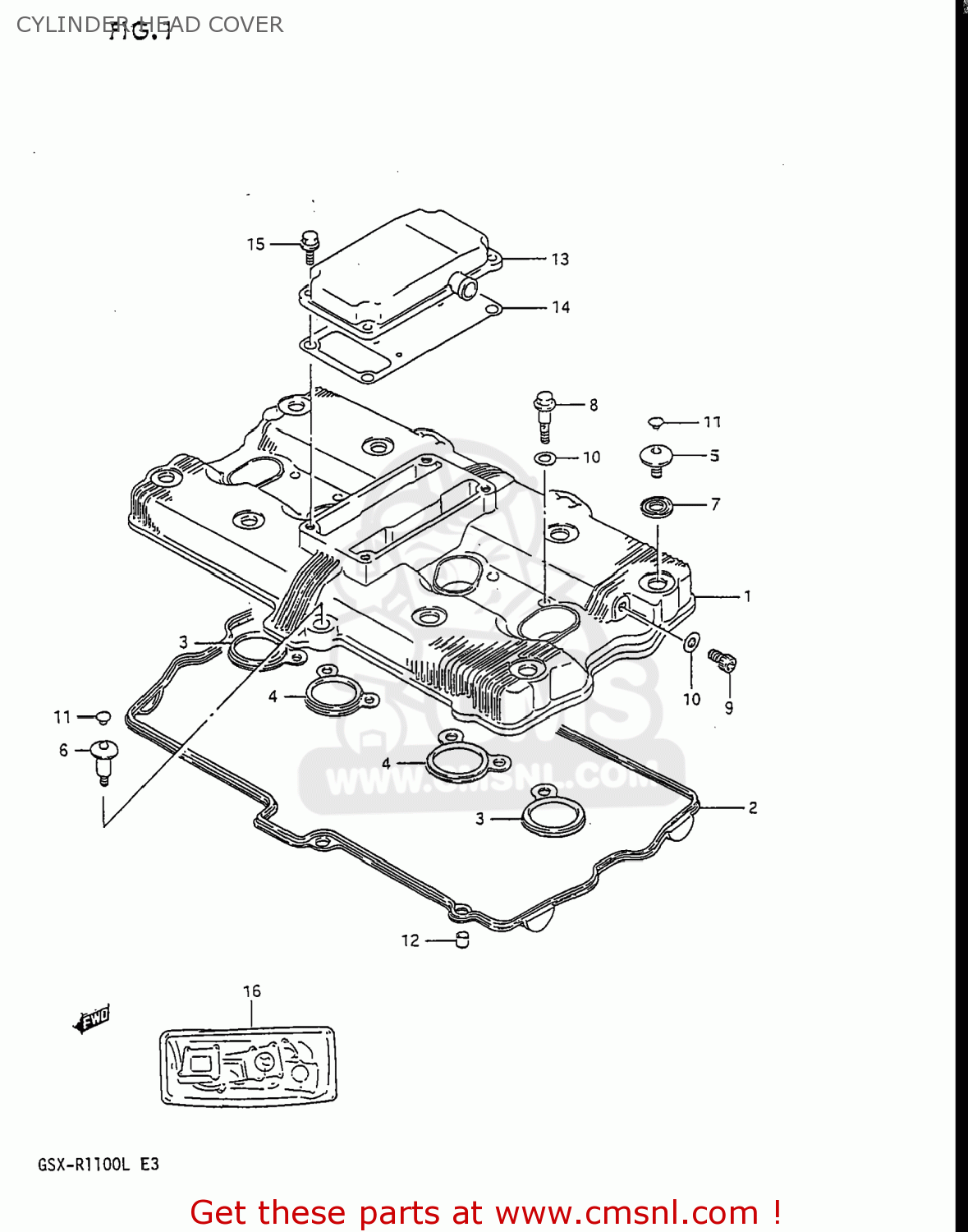

Cylinder head cover diagram GSXR1100 1990 (L) USA (E03)
CYLINDER HEAD COVER GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117117C00
ref: 1
COVER,CYLINDER HEAD
€ 461.00
2
1117306B02
ref: 2
11173-06B03
GASKET,CYLINDER HEAD COVER (NAS)
€ 34.50
3
1117827A01
ref: 3
11178-27A02
GASKET,HEAD COVER NO.2 (NAS)
€ 5.50
4
1117927A02
ref: 4
11179-27A03
GASKET,HEAD COVER NO.3 (NAS)
€ 7.50
5
0910607009
ref: 5
BOLT(7X17.5)
€ 4.50
6
0910607010
ref: 6
BOLT(7X31)
€ 4.50
7
0916111006
ref: 7
09161-11008
WASHER
€ 4.50
8
0936008009
ref: 8
11180-27820
BOLT,UNION 8X35
€ 26.50
9
0711008125
ref: 9
07130-0812A
PLUG, HEAD COVER
€ 2.50
10
0916808008
ref: 10
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
11
0925006008
ref: 11
CAP(OD:10)
€ 3.00
12
0422108129
ref: 12
PIN
€ 2.00
13-1
1117640C00
ref: 13-1
11176-48B10
COVER,BREATHER
€ 26.00
13-2
1117648B10
ref: 13-2
COVER,BREATHER
€ 26.00
14
1117748B00
ref: 14
11177-48B00-H17
GASKET (NAS)
€ 10.50
15
0151706205
ref: 15
01550-0620A
BOLT
€ 2.50
16
1140148813
ref: 16
11402-48811
GASKET SET (NAS)
€ 338.00
