REAR SWINGING ARM (MODEL K)
GSXR1100 1990 (L) USA (E03)

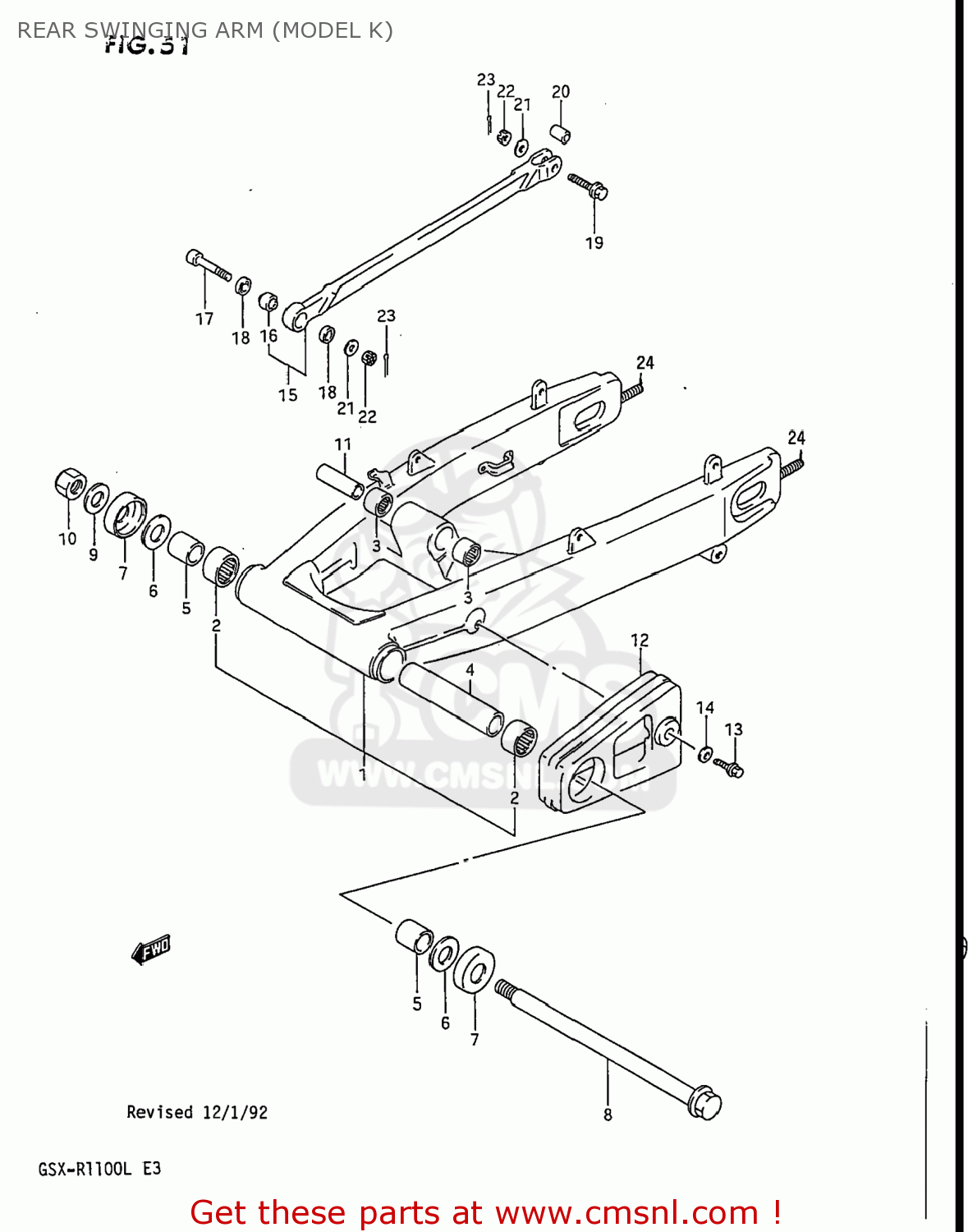

Rear swinging arm (model k) diagram GSXR1100 1990 (L) USA (E03)
REAR SWINGING ARM (MODEL K) GSXR1100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100040C00
ref: 1
SWING ARM ASSEMBLY,REAR
€ 1,045.50
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
6128217C00
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 11.50
5
6125117C00
ref: 5
SPACER,RR SWGARM PIVOT BERRING
€ 36.00
6-1
0821120381
ref: 6-1
WASHER
€ 3.00
6-2
0821120382
ref: 6-2
WASHER
€ 3.00
7
6126217C00
ref: 7
DUST SEAL,RR SWGARM PIVOT
€ 8.00
8
6121117C00
ref: 8
SHAFT,REAR SWING ARM PIVOT
€ 62.00
9
0832211188
ref: 9
08322-0118B
WASHER
€ 2.50
10
0915918007
ref: 10
NUT
€ 14.00
11
6231717C00
ref: 11
SPACER,RR CUSHION LEVER
€ 26.00
12
6127317C01
ref: 12
BUFFER,CHAIN TOUCH DEFENCE
€ 55.50
13
0151706164
ref: 13
01550-0616A
BOLT
€ 2.50
14
0916906055
ref: 14
WASHER
€ 2.00
15
6430040810
ref: 15
64300-40811
TORQUE LINK SET,REAR
€ 113.50
16
6435240411
ref: 16
64352-40401
SPHERICAL BEARING,TORQUE
€ 69.50
17
0910608048
ref: 17
BOLT(8X48)
€ 4.50
18
6433940410
ref: 18
6433940410
19
0910308161
ref: 19
09103-08160
BOLT
€ 6.00
20
6433620A00
ref: 20
SPACER,RR TORQUE LINK RR
€ 8.00
21
0832211088
ref: 21
08322-01087
WASHER
€ 2.00
22
0831441088
ref: 22
08314-4008B
NUT 8MM
€ 2.50
23
0411120208
ref: 23
04111-2020A
PIN 20X20
€ 1.50
23
0411120208
ref: 23
04111-2020A
PIN 20X20
€ 1.50
