FRAME

GSXR1100 1990 (L) USA (E03)

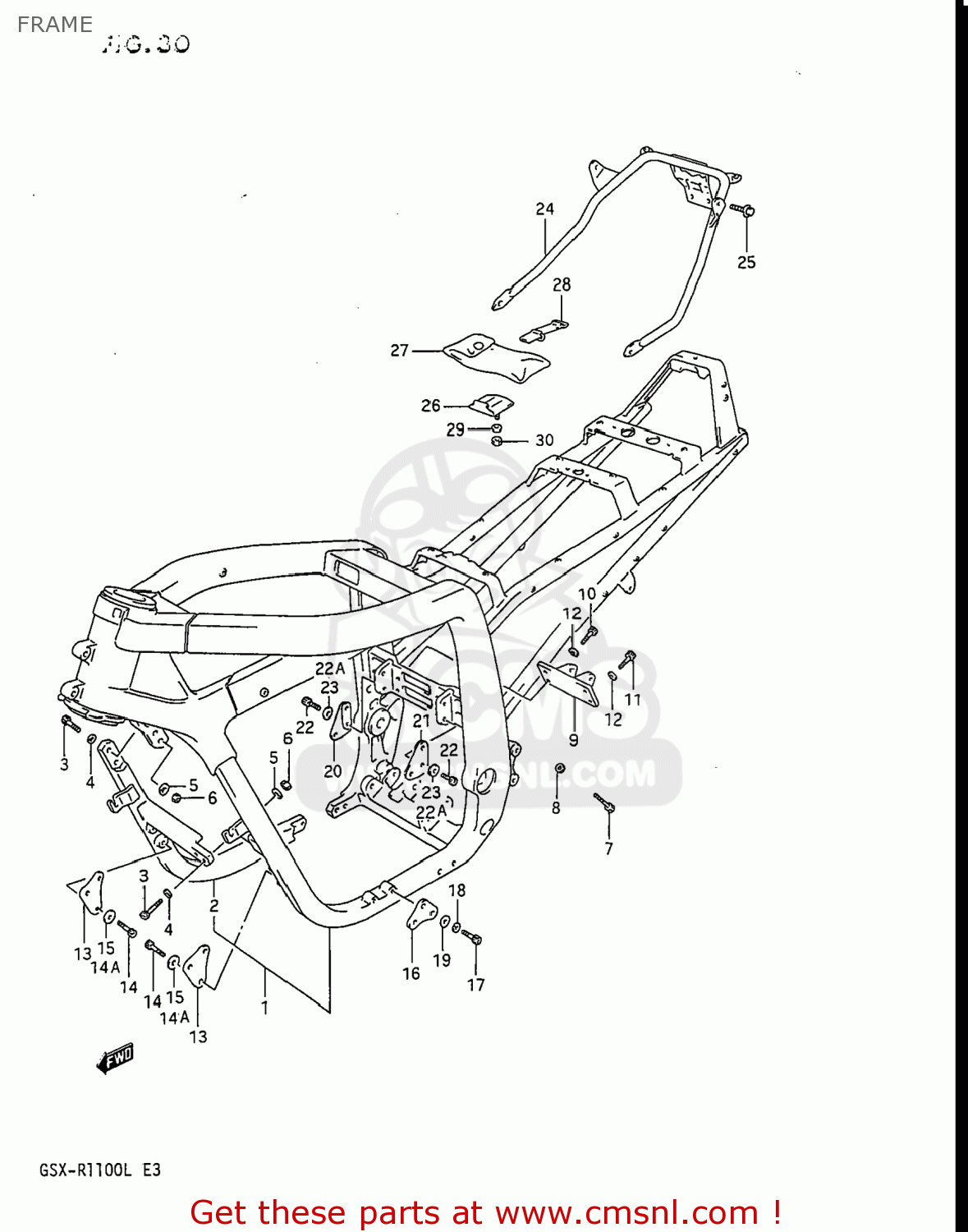

Frame diagram GSXR1100 1990 (L) USA (E03)

FRAME GSXR1100 1990 (L) USA (E03)
FRAME GSXR1100 1990 (L) USA (E03)
FRAME GSXR1100 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4110040810
ref: 1-1
41100-40830
FRAME
€ 2,186.00
1-2
4110040830
ref: 1-2
FRAME SET
€ 2,186.00
1-3
4110040840
ref: 1-3
41100-40850
FRAME
€ 2,335.50
1-4
4110040850
ref: 1-4
FRAME SET
€ 2,335.50
2-1
4114040C00
ref: 2-1
TUBE COMP,FRAME DOWN,RIGHT
€ 310.00
2-2
4114040C30
ref: 2-2
TUBE COMP,FRAME DOWN,RIGHT
€ 0.00
3
0711010357
ref: 3
07130-10357
BOLT, LH
€ 3.50
4
0916010013
ref: 4
09160-10123
WASHER (10.1X21X2.3)
0916010013
€ 2.00
5
0916410005
ref: 5
09164-10010
WASHER
0916410005
€ 6.50
6
0915910027
ref: 6
NUT
0915910027
€ 3.00
7
0110706207
ref: 7
01500-06207
BOLT
0110706207
€ 2.00
8
0916806001
ref: 8
GASKET(6.2X11X1) (NAS)
0916806001
€ 1.50
9
4138440C00
ref: 9
BRACKET,REAR CUSHION UNIT
€ 130.50
10
0910610017
ref: 10
BOLT 10X27
0910610017
€ 2.50
11
0711010357
ref: 11
07130-10357
BOLT, LH
€ 3.50
12
0916410005
ref: 12
09164-10010
WASHER
0916410005
€ 6.50
13
4191140C00
ref: 13
41911-41C00
PLATE,ENGINE MOUNTING
€ 25.00
14
0711008257
ref: 14
07130-08257
BOLT, FRONT LH
0711008257
€ 3.50
14A
0832131088
ref: 14A
08321-01087
WASHER,LOCK,8.
€ 2.00
15
0916008010
ref: 15
09160-08054
WASHER (8.2X20X1.6)
0916008010
€ 1.50
16
4192117C02
ref: 16
PLATE,ENGINE MOUNT NO.2
4192117C02
€ 17.00
17
0711008257
ref: 17
07130-08257
BOLT, FRONT LH
0711008257
€ 3.50
18
0832131087
ref: 18
08321-01087
WASHER,LOCK
€ 2.00
19
0916008010
ref: 19
09160-08054
WASHER (8.2X20X1.6)
0916008010
€ 1.50
20
4194040C01
ref: 20
PLATE,ENGINE MOUNT NO.3,R
€ 15.50
21
4195040C01
ref: 21
PLATE,ENGINE MOUNTING NO
€ 14.00
22
0910608005
ref: 22
BOLT(8X22)
0910608005
€ 2.00
22A
0832131088
ref: 22A
08321-01087
WASHER,LOCK,8.
€ 2.00
23
0916008010
ref: 23
09160-08054
WASHER (8.2X20X1.6)
0916008010
€ 1.50
24-1
4398017C10
ref: 24-1
GRIP
4398017C10
€ 88.50
24-2
4398040C40
ref: 24-2
GRIP COMP,REAR
€ 85.50
25
0151708207
ref: 25
01550-08207
BOLT
€ 3.00
26
4155049200
ref: 26
41550-49201
HOLDER,TOOL
€ 10.00
27-1
0980020026
ref: 27-1
09800-21017
TOOL ASSY
€ 59.00
27-2
0980020032
ref: 27-2
09800-21017
TOOL SET
€ 59.00
28
0946200072
ref: 28
BAND
0946200072
€ 3.50
29
0916006006
ref: 29
09160-06084
WASHER
0916006006
€ 2.00
30
0831921068
ref: 30
08319-2106A
NUT 6MM
0831921068
€ 2.00
