COWLING FITTING SET
GSXR750 1992 (N) USA (E03)

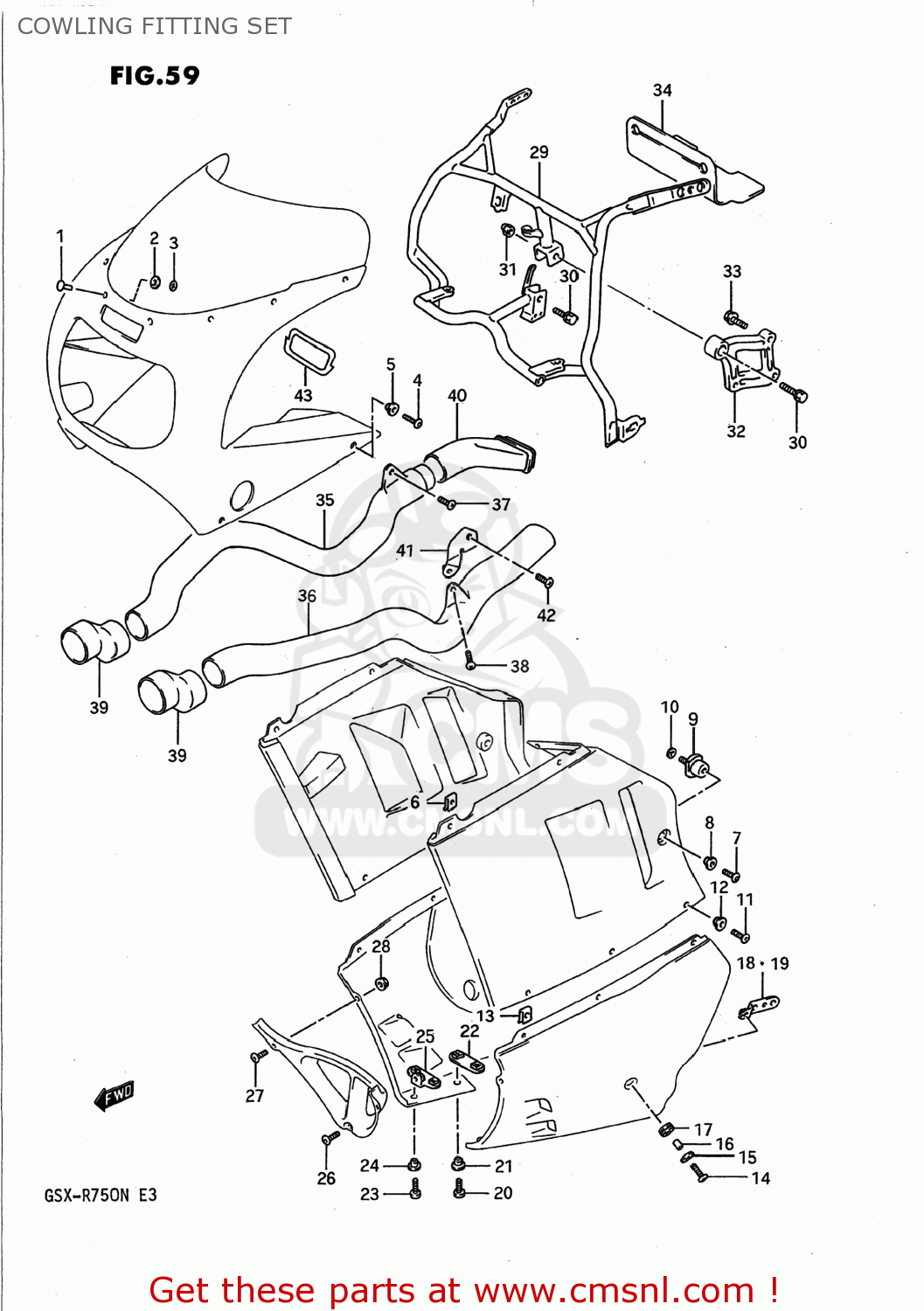

Cowling fitting set diagram GSXR750 1992 (N) USA (E03)
COWLING FITTING SET GSXR750 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
€ 2.50
2
0932004007
ref: 2
09320-04501
CUSHION
€ 3.00
3
0914804032
ref: 3
NUT
€ 2.50
4
0913905032
ref: 4
SCREW(5X18)
€ 2.50
5
0916105017
ref: 5
WASHER(5.2X14X1.5)
€ 3.00
6
9448432B00
ref: 6
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
7
0913906027
ref: 7
SCREW(6X12)
€ 3.00
8
0916106021
ref: 8
WASHER(6.3X16X1.5)
€ 2.50
9
9457004A00
ref: 9
CUSHION,COWLING
€ 12.50
10
0832121064
ref: 10
08321-0106A
WASHER,LOCK
€ 2.00
11
0913905032
ref: 11
SCREW(5X18)
€ 2.50
12
0916105017
ref: 12
WASHER(5.2X14X1.5)
€ 3.00
13
9448432B00
ref: 13
94484-24F00
NUT,HEADLAMP HOUSING,UPPER
€ 4.00
14
0913906028
ref: 14
SCREW(6X20)
€ 3.50
15
0916006056
ref: 15
WASHER(6.5X18X1)
€ 2.00
16
0918006152
ref: 16
09180-06262
SPACER
€ 3.00
17
0932009016
ref: 17
CUSHION
€ 2.50
18
9458040C00
ref: 18
BRACE,COWLING LWR,R
€ 6.00
19
9459040C00
ref: 19
BRACE,COWLING LWR,L
€ 7.00
20
0913906039
ref: 20
SCREW(6X16)
€ 2.50
21
0916106021
ref: 21
WASHER(6.3X16X1.5)
€ 2.50
22
9449306B00
ref: 22
BRACE,COWLING LWR COVER RR
€ 4.00
23
0913906039
ref: 23
SCREW(6X16)
€ 2.50
24
0916106021
ref: 24
WASHER(6.3X16X1.5)
€ 2.50
25
9449006B00
ref: 25
BRACE,COWLING LWR COVER
€ 4.50
26
0913906030
ref: 26
SCREW(6X16)
€ 3.50
26
0913906030
ref: 26
SCREW(6X16)
€ 3.50
27
0913905025
ref: 27
SCREW(5X14)
€ 2.00
28
0831626055
ref: 28
08316-2005A
NUT
€ 2.00
29
9451018D00
ref: 29
BRACE,COWLING
€ 229.50
30
0113708305
ref: 30
01570-0830A
BOLT, BRACE (8X30)
€ 2.50
31
0831321085
ref: 31
08313-2008A
NUT ,8MM
€ 2.50
32
9453141C00
ref: 32
BRACE,COWLING CTR
€ 46.50
33
0118708405
ref: 33
01580-0840A
BOLT, BRACE CENTER (8X40)
€ 2.50
34
9453341C00
ref: 34
SHEET,COWLING HEAT GUARD
€ 14.50
35
9445118D00
ref: 35
PIPE,AIR INTAKE,FRONT
€ 34.00
36
9445218D00
ref: 36
PIPE,AIR INTAKE FR,L
€ 37.00
37
0214206207
ref: 37
SCREW
€ 2.00
38
0214206125
ref: 38
02142-0612A
SCREW 6X12
€ 2.00
39
9445418D00
ref: 39
JOINT,AIR INTAKE
€ 17.50
40
9445317C00
ref: 40
PIPE,AIR INTAKE RR,R
€ 23.50
41
9445517D00
ref: 41
PLATE,AIR INTAKE,LEFT
€ 4.50
42
0113706165
ref: 42
01570-0616A
BOLT
€ 2.50
43
9441541C00
ref: 43
CUSHION,FR POSITION LAMP
€ 7.50
