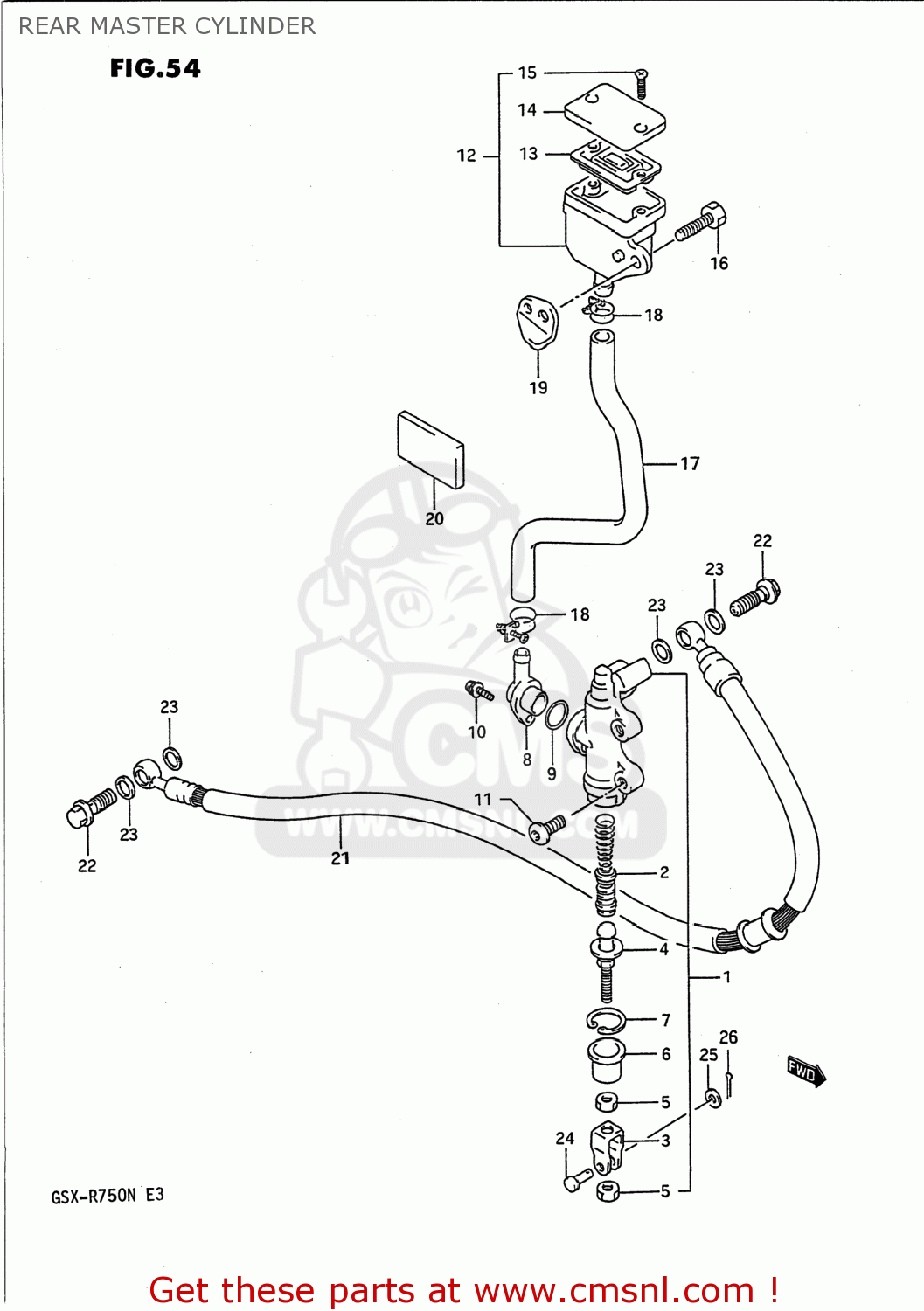

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960017C01
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

1

6960017C01
ref: 1

CYLINDER ASSY,RR MASTER

€ 194.50

2

6960016820
ref: 2
69600-04810

PISTON/CUP SET

€ 42.50

3

6969227A30
ref: 3

YOKE

€ 12.50

4

6967048B00
ref: 4

ROD,PUSH

€ 20.50

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6967205A00
ref: 8

CONNECTOR

€ 4.50

9

6968634200
ref: 9

O RING

€ 3.50

10

0211274125
ref: 10
02112-7412A

SCREW

€ 2.50

11

0913908009
ref: 11

SCREW(8X22)

€ 6.50

12

6974038B20
ref: 12
69740-38B21

TANK ASSEMBLY,RESERVOIR

€ 85.50

13

5966704700
ref: 13

DIAPHRAGM

€ 8.00

14

6966924A01
ref: 14

CAP

€ 12.00

15

6968904A00
ref: 15

SCREW

€ 2.00

16

0110706257
ref: 16
01500-06257

BOLT

€ 2.00

17

6973117D00
ref: 17

HOSE,RESERVOIR TANK

€ 16.50

18

0940016302
ref: 18
09400-16304

CLAMP

€ 4.50

19

6975117C00
ref: 19

BRACKET,RESERVOIR TANK RR

€ 4.50

20

6973217C01
ref: 20
47451-38A01

CUSHION,PANEL

€ 3.00

21

6948017D10
ref: 21

HOSE,REAR BRAKE

€ 74.50

22

0936010017
ref: 22

BOLT UNION

€ 6.50

23

0916110009
ref: 23

WASHER(10X15X1.5)

€ 2.00

24

0920006037
ref: 24
09200-06068

PIN

€ 5.00

25

0832221067
ref: 25
08322-01067

WASHER

€ 2.00

26

0411120158
ref: 26
04111-2015A

PIN

€ 1.50

all assemblies
