CYLINDER HEAD
GSXR750 1992 (N) USA (E03)

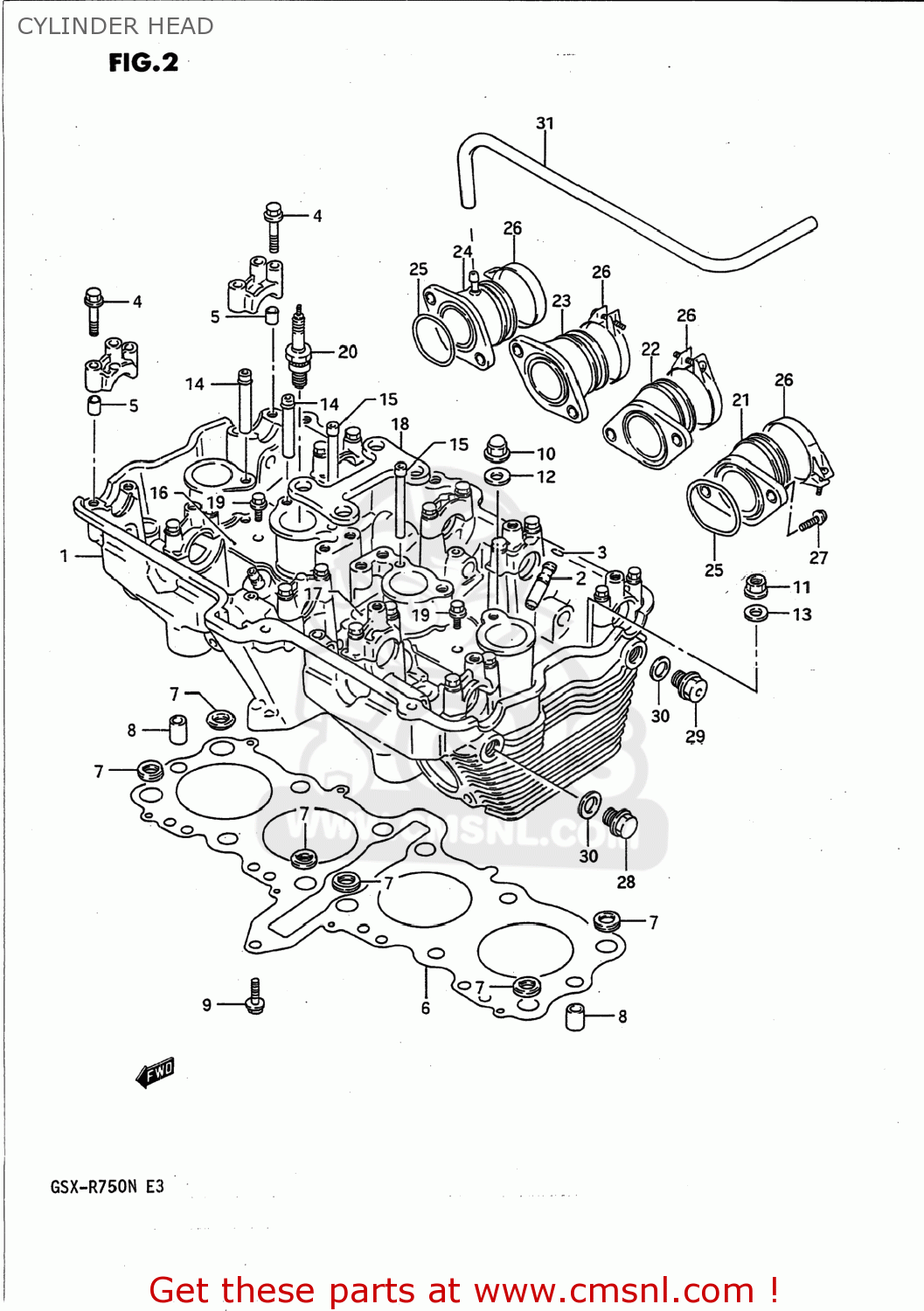

Cylinder head diagram GSXR750 1992 (N) USA (E03)
CYLINDER HEAD GSXR750 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110018D00
ref: 1-1
HEAD ASSY,CYLINDER
€ 1,173.00
1-2
1110018D10
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 779.00
2
1111618D70
ref: 2
GUIDE,VALVE
€ 19.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6-1
1114107D01
ref: 6-1
11141-17D10
GASKET,CYLINDER HEAD
€ 99.50
6-2
1114117D10
ref: 6-2
GASKET,CYLINDER HEAD (NAS)
€ 99.50
7
1114306B00
ref: 7
O RING,HEAD GASKET
€ 8.00
8
0421111189
ref: 8
PIN
€ 2.00
9
0151706305
ref: 9
01550-0630A
BOLT 6X30
€ 2.50
10
0915910069
ref: 10
NUT
€ 5.00
11
0831616106
ref: 11
08316-1010B
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
€ 2.00
13
0916010060
ref: 13
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
€ 4.00
18
1113840C00
ref: 18
PLATE,HEAD REINF
€ 34.50
19
0151706128
ref: 19
01550-06127
BOLT
€ 2.50
20-1
0948200462
ref: 20-1
PLUG,SPARK(CR10EK)
€ 10.50
20-2
0948200463
ref: 20-2
PLUG,SPARK(U31ETR)
€ 10.50
20-3
0948200410
ref: 20-3
PLUG,SPARK(CR9EK)
€ 10.50
20-4
0948200411
ref: 20-4
09482-00459
PLUG,SPARK(U27ETR)
€ 8.50
21-1
1311017D00
ref: 21-1
13101-17D00
PIPE,INTAKE
€ 41.00
21-2
1311017D10
ref: 21-2
13101-17D10
PIPE,INTAKE
€ 35.00
22-1
1312017D00
ref: 22-1
13102-17D00
PIPE,INTAKE
€ 41.00
22-2
1312017D10
ref: 22-2
13102-17D10
PIPE COMP,INTAKE NO.2
€ 15.00
23-1
1313017D00
ref: 23-1
13103-17D00
NET,INTAKE
€ 41.00
23-2
1313017D10
ref: 23-2
13103-17D10
NET,INTAKE
€ 32.50
24-1
1314017D00
ref: 24-1
13104-17D00
PIPE,INTAKE
€ 50.00
24-2
1314017D10
ref: 24-2
13104-17D10
PIPE COMP,INTAKE NO.4
€ 19.00
25
0928042003
ref: 25
O RING(D:2.4,ID:41.7)
€ 8.50
26
0940256208
ref: 26
09402-56901
CLAMP
€ 3.50
27
0215206165
ref: 27
02112-0616A
SCREW
€ 2.00
28-1
0924714034
ref: 28-1
PLUG
€ 3.50
28-2
0924714032
ref: 28-2
PLUG
€ 5.00
29
0924714032
ref: 29
PLUG
€ 5.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
€ 2.50
31
0935250823300
ref: 31
44420-44AR0
HOSE
€ 13.00
