CYLINDER
GSXR750 1992 (N) USA (E03)

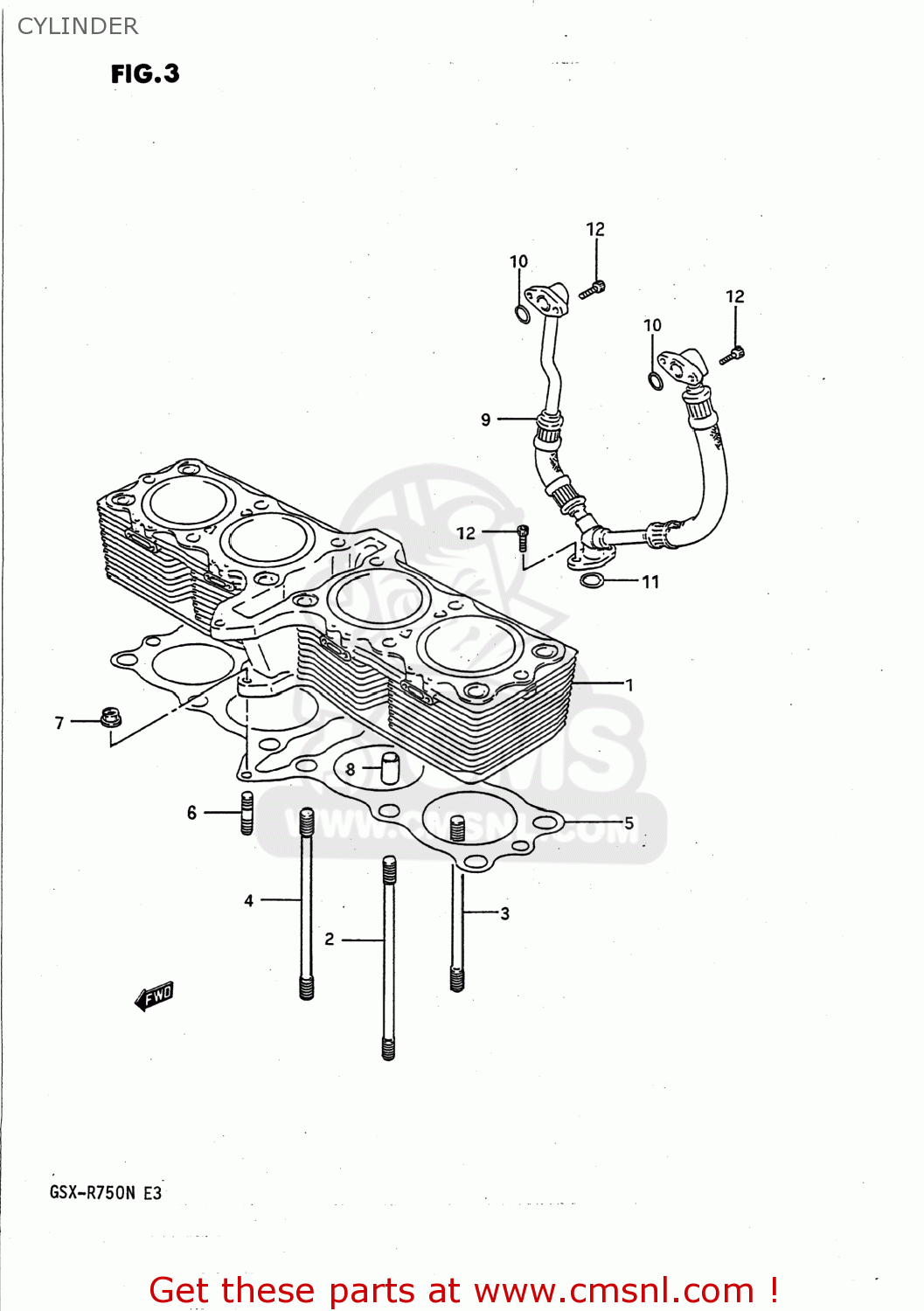

Cylinder diagram GSXR750 1992 (N) USA (E03)
CYLINDER GSXR750 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121007D00
ref: 1-1
11210-07D10
CYLINDER
€ 791.00
1-2
1121017D10
ref: 1-2
CYLINDER COMP
€ 544.00
2
0910810109
ref: 2
09108-10144
STUD BOLT (L:150)
€ 11.00
3
0910810073
ref: 3
BOLT,STUD
€ 9.50
4
0910810110
ref: 4
09108-10099
STUD
€ 15.50
5
1124127A02
ref: 5
11241-27A04
GASKET,CYLINDER (NAS)
€ 20.00
6
0142106205
ref: 6
01421-0620A
STUD BOLT L:20
€ 2.50
7
0831616064
ref: 7
08316-1006B
NUT 6MM
€ 2.50
8
0920613006
ref: 8
09206-13017
PIN
€ 9.00
9
1132827A03
ref: 9
11328-27A04
HOSE
€ 241.00
10
0928014011
ref: 10
O RING(D:2.5,ID:13.8)
€ 3.50
11
0928015007
ref: 11
O RING(D:2.4,ID:15.8)
€ 2.00
12
0711006165
ref: 12
07130-0616B
BOLT
€ 3.00
