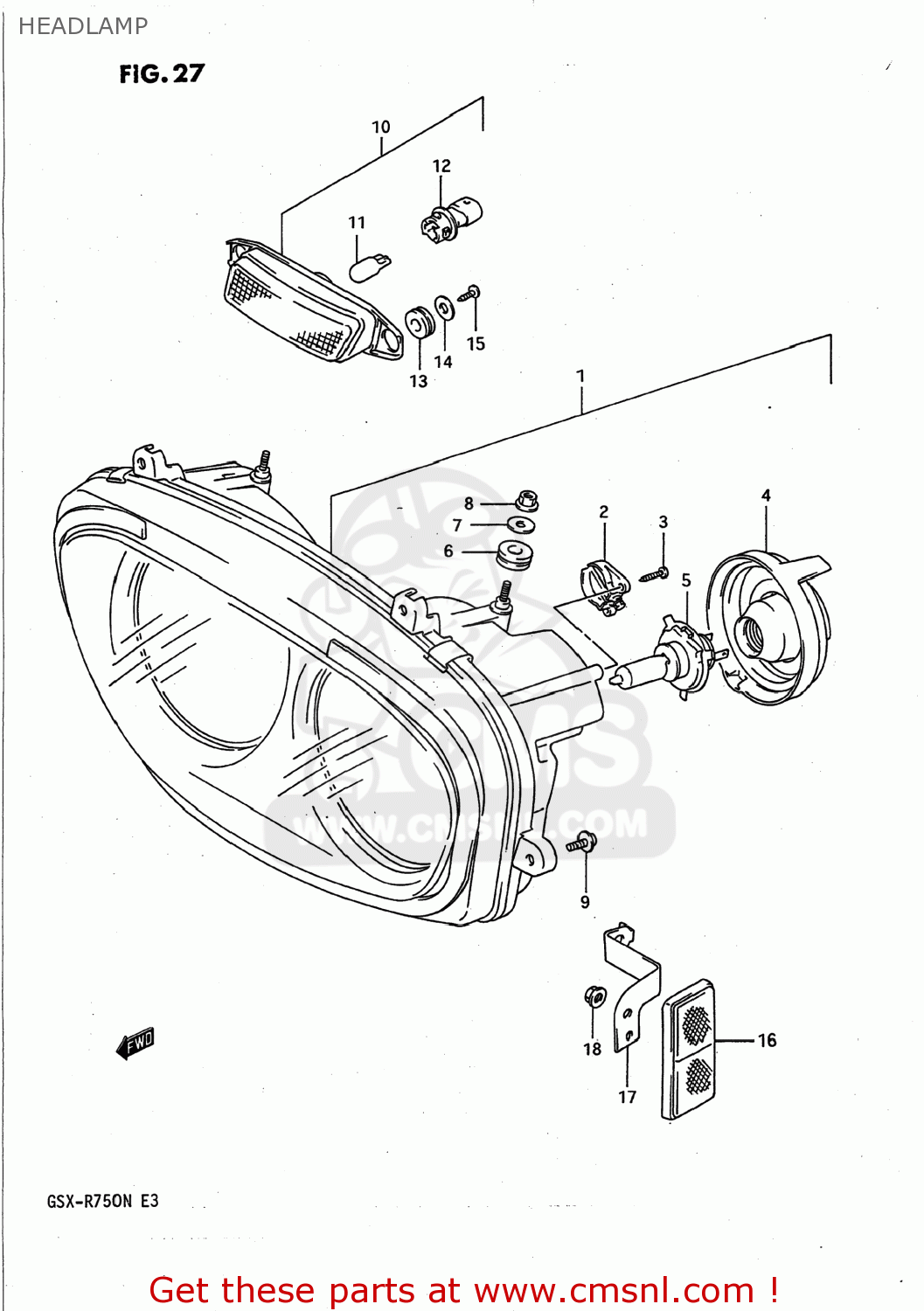

HEADLAMP

ref

part #

description

quantity

1

3510018D00
ref: 1
35100-18D00-999

HEADLAMP ASSEMBLY

€ 491.00

2

3525033C10
ref: 2

GEAR UNIT ASSY,LWR

€ 7.50

3

0351104165
ref: 3
03511-0416A

SCREW

€ 1.50

4

3517341C00
ref: 4

COVER,SOCKET

€ 14.00

5

0947112060
ref: 5

BULB(12V60/55W,H4)

€ 8.00

6

0932009034
ref: 6

GROMMET

€ 4.50

7

0916006092
ref: 7
09160-06128

WASHER

€ 2.50

8

0831616064
ref: 8
08316-1006B

NUT 6MM

€ 2.50

9

0211275165
ref: 9
02112-7516A

SCREW

€ 2.50

10-1

3611018D00
ref: 10-1
36110-18D01

LAMP ASSEMBLY,FRONT POSITION

€ 45.50

10-2

3611018D01
ref: 10-2

LAMP ASSY,FR POSITION

€ 45.50

11

0947112081
ref: 11

BULB(12V5W)

€ 1.50

12

3611841C00
ref: 12

SOCKET ASSY

€ 10.50

13

0932008051
ref: 13
09320-08066

CUSHION

€ 7.50

14

0916004014
ref: 14
09160-04026

WASHER (4X16X1.2)

€ 1.50

15

0354104105
ref: 15
03541-0410A

SCREW

€ 1.50

16

3595043431
ref: 16

REFLEX REFLECTOR,FR SIDE

€ 12.00

17-1

3595617D00
ref: 17-1

BRACKET,FR SIDE RR,R

€ 6.50

17-2

3595717D00
ref: 17-2

BRACKET,FR SIDE RR,L

€ 6.50

18

0836115055
ref: 18
08361-1505B

NUT

€ 2.50
