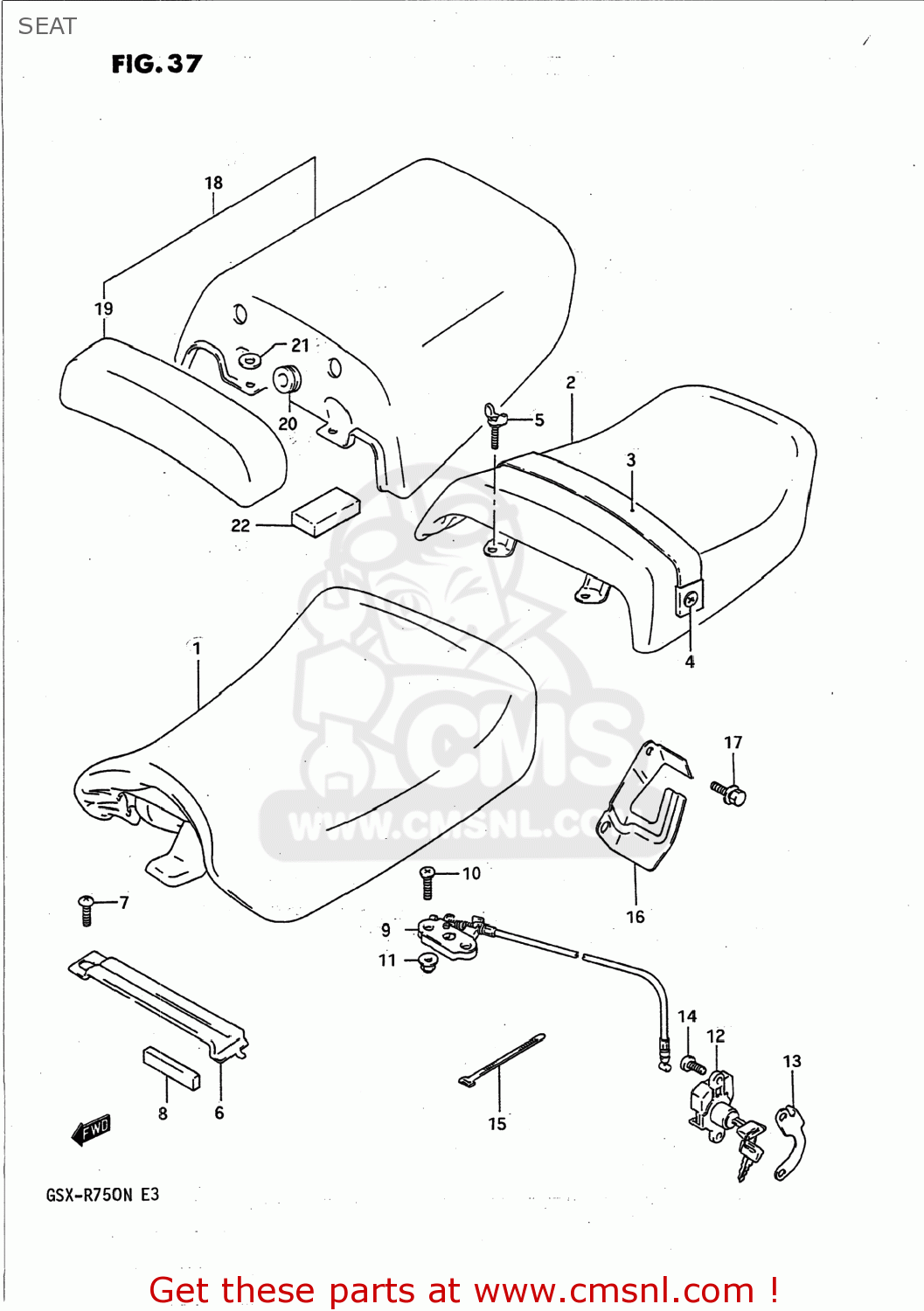

SEAT

ref

part #

description

quantity

1

4510041C0058R
ref: 1

SEAT ASSY

€ 264.00

2

4530041C1058R
ref: 2
45300-41C11-58R

SEAT ASSEMBLY,PILLION

€ 359.00

3

4518041C0058R
ref: 3

BAND COMP,SEAT

€ 54.50

4

4518606B00
ref: 4

BOLT

€ 5.00

5

0913906056
ref: 5

SCREW(6X20)

€ 3.00

6

4527117C01
ref: 6

PLATE,SEAT SUPPORT RR

€ 12.50

7

0214206126
ref: 7
02142-0612A

SCREW

€ 2.00

8

4527217C02
ref: 8

CUSHION,PLATE SEAT SUPPORT

€ 3.50

9

4522017C00
ref: 9

BRACKET,SEAT SUPPORT RR

€ 65.50

10

0212206255
ref: 10
02122-0625A

SCREW

€ 2.00

11

0831931067
ref: 11

NUT

€ 2.50

12

4570019840
ref: 12
45700-19841

LOCK SET,SEAT

€ 59.50

13

4512317C00
ref: 13

PLATE,SEAT LOCK

€ 4.50

14

0913906075
ref: 14

SCREW(6X12)

€ 3.00

15

0940709402
ref: 15

CLAMP

€ 3.00

16-1

4529041C01
ref: 16-1

PLATE,SEAT LOCK CABLE

€ 13.00

16-2

4528840C01
ref: 16-2

PLATE,SEAT LOCK CABLE

€ 8.50

17-1

0111706165
ref: 17-1
01550-0616A

BOLT

€ 2.50

17-2

0214206164
ref: 17-2
02142-0616A

SCREW

€ 2.50

18-1

45500418100JW
ref: 18-1
45500-41811-0JW

COVER SET,SINGLE SEAT

€ 190.50

18-2

455004181033J
ref: 18-2
45500-41811-33J

COVER SET,SINGLE SEAT

€ 339.00

19

4622041C0058R
ref: 19

BACKREST,SEAT(BLACK)

€ 94.50

20

0932012031
ref: 20

CUSHION

€ 3.00

21

0916006006
ref: 21
09160-06084

WASHER

€ 2.00

22

6341135B00
ref: 22
51827-01A00

MUD GUARD,REAR FENDER

€ 2.50
