OIL PAN
GSXR750 1992 (N) USA (E03)

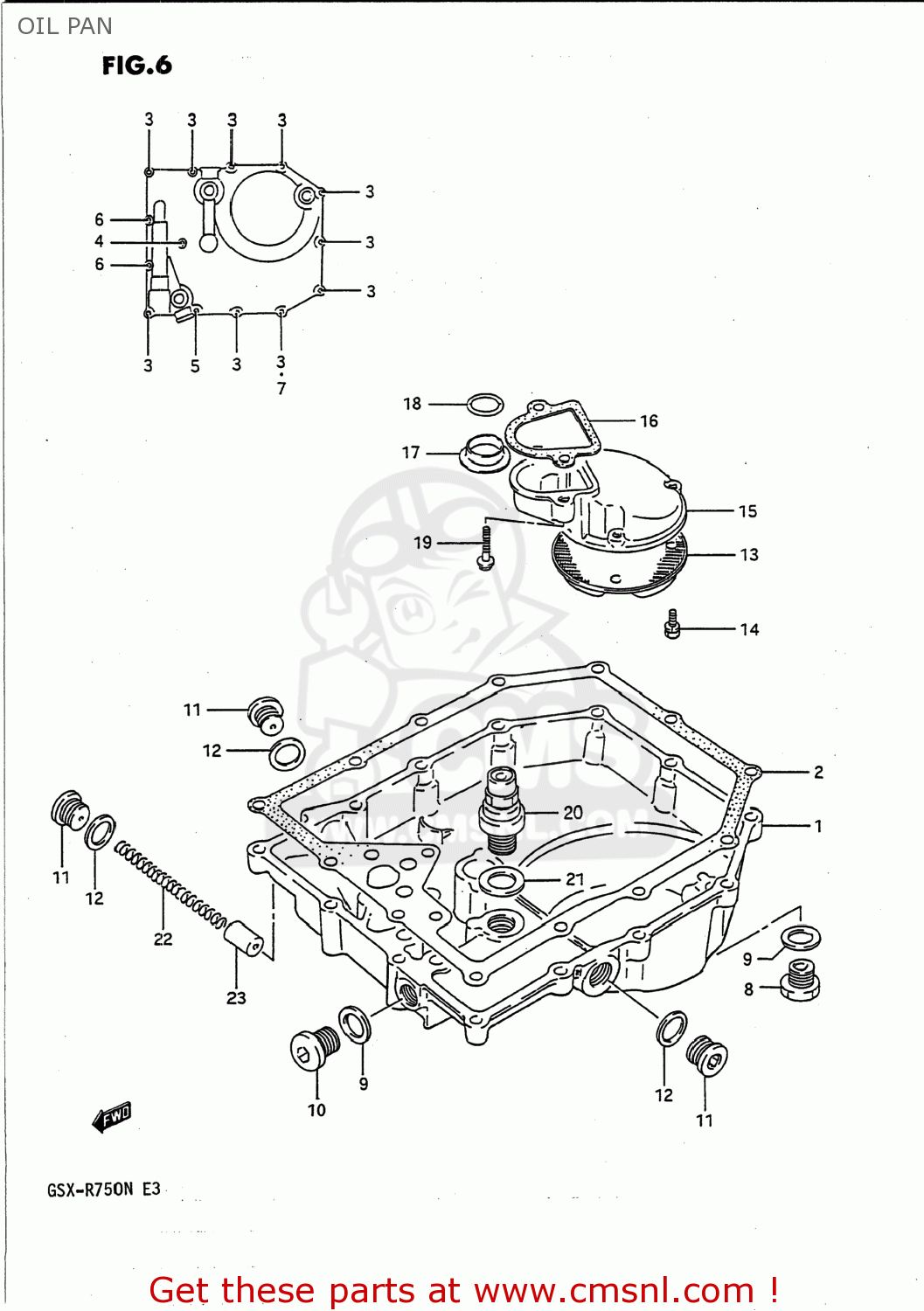

Oil pan diagram GSXR750 1992 (N) USA (E03)
OIL PAN GSXR750 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151117D01
ref: 1
PAN,OIL
€ 156.00
2
1148927A10
ref: 2
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
3
0711006257
ref: 3
07130-06257
BOLT
€ 2.50
4
0711006357
ref: 4
07130-06357
BOLT
€ 3.50
5
0711006408
ref: 5
07130-06407
BOLT
€ 2.50
6
0711006458
ref: 6
07130-0645B
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8
0924714001
ref: 8
09247-14002
PLUG
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10
0924814005
ref: 10
PLUG,14X12
€ 5.00
11
0924816010
ref: 11
09248-16012
PLUG
€ 4.50
12
0916816002
ref: 12
GASKET(16X22X2) (NAS)
€ 2.00
13
1652009301
ref: 13
STRAINER,ENGINE OIL
€ 14.00
14
0113706128
ref: 14
01570-06127
BOLT
€ 2.50
15
1652506B00
ref: 15
PROTECTOR,OIL STRAINER
€ 33.50
16
1652827A10
ref: 16
16528-27A21
O-RING
€ 9.00
17
1652927A01
ref: 17
GASKET,OIL OUTLET (NAS)
€ 2.00
18
0928018009
ref: 18
O RING(D:3.2,ID:17.8)
€ 8.00
19
0151706257
ref: 19
01550-06257
BOLT 6X25
€ 2.50
20
1644017C00
ref: 20
16440-17C10
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
0944009027
ref: 22
SPRING
€ 4.50
23
1644234301
ref: 23
PLUNGER,OIL CONTROLL
€ 16.00
