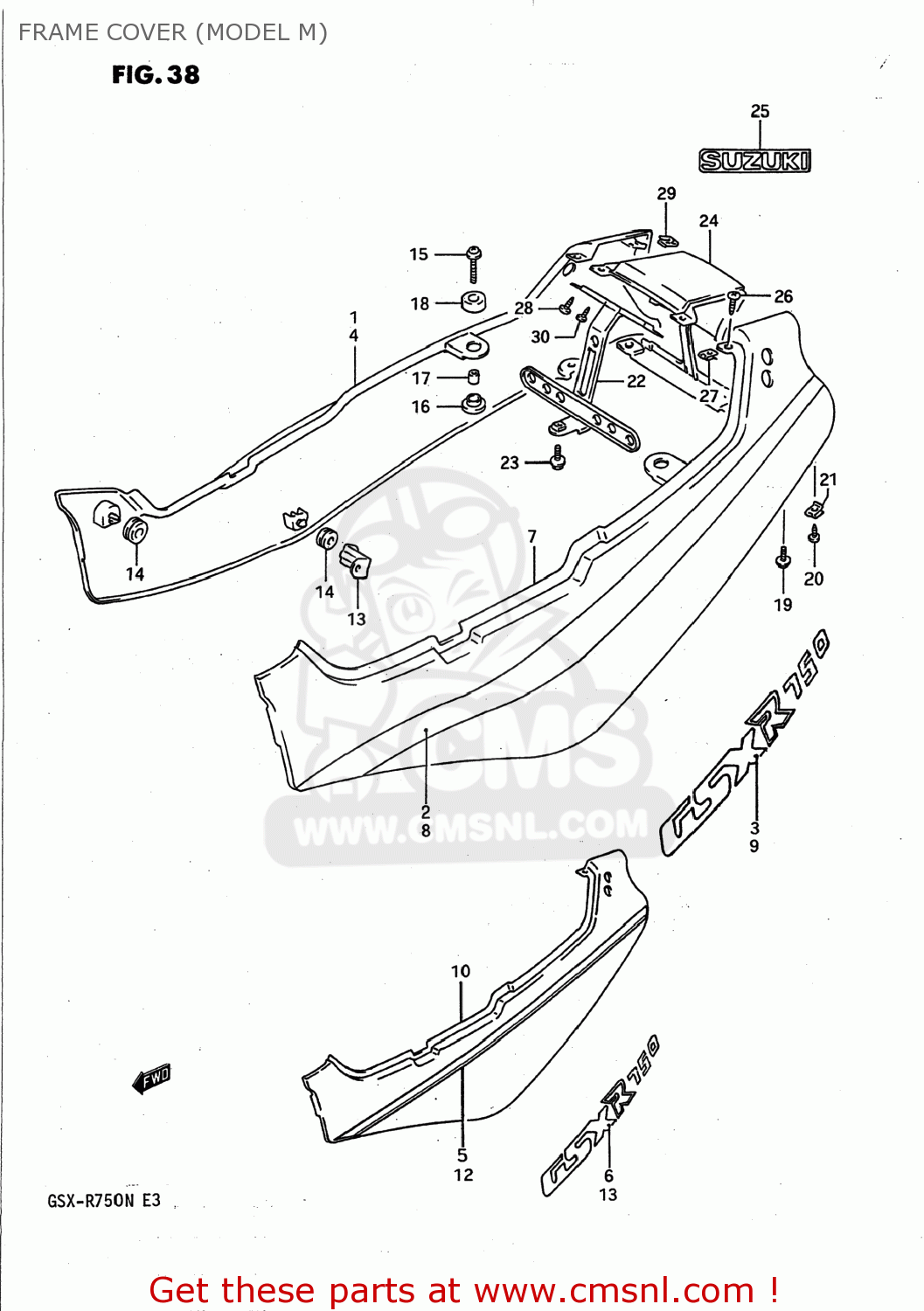

FRAME COVER (MODEL M)

ref

part #

description

quantity

1

4711018D003SL
ref: 1

COVER COMP,FRAME,RIGHT

€ 374.50

2

6813518D010NE
ref: 2

TAPE,FRAME COVER,RIGHT (BLUE)

€ 36.50

3

6813118D00H04
ref: 3

EMBLEM,FRAME COVER

€ 23.50

4

4711018D1005X
ref: 4
47110-18D10-3CG

COVER COMP,FRAME,RIGHT

€ 459.50

5

6813518D11H17
ref: 5

TAPE,FRAME COVER,R

€ 54.50

6

6813118D00H15
ref: 6

EMBLEM,FRAME COVER

€ 21.00

7

4721018D003SL
ref: 7

COVER COMP,FRAME,LEFT

€ 364.50

8

6814518D010NE
ref: 8

TAPE,FRAME COVER,LEFT (BLUE)

€ 36.50

9

6813118D00H04
ref: 9

EMBLEM,FRAME COVER

€ 23.50

10

4721018D1005X
ref: 10
47210-18D10-3CG

COVER COMP,FRAME,LEFT

€ 543.00

11

6814518D11H17
ref: 11

TAPE,FRAME COVER,LEFT

€ 49.00

12

6813118D00H15
ref: 12

EMBLEM,FRAME COVER

€ 21.00

13

4381541C00
ref: 13
43815-41C0V

BRACKET,FRAME COVER

€ 8.00

14

0932008018
ref: 14

CUSHION

€ 4.00

15

0913606062
ref: 15
09136-06017

SCREW (6X16)

€ 2.50

16

4532617C00
ref: 16

CUSHION,FRAME COVER LWR

€ 7.00

17

0918006143
ref: 17
09180-06286

SPACER

€ 2.50

18

4514904A00
ref: 18

CUSHION,TAIL COVER UPR

€ 2.00

19

0913606083
ref: 19

SCREW(6X30)

€ 3.00

20

0314204125
ref: 20
03142-0412B

SCREW

€ 1.50

21

0914804024
ref: 21

NUT

€ 2.00

22

4741041C00
ref: 22

BRACKET,TAIL LAMP

€ 35.50

23

0911606064
ref: 23
09116-06109

BOLT

€ 1.50

24-1

4731041C000JW
ref: 24-1

COVER,FRAME CTR

€ 69.00

24-2

4731041C0033J
ref: 24-2
47310-41C20-36X

COVER,FRAME COVER,CENTER (

€ 62.50

25-1

68166313000NE
ref: 25-1

EMBLEM

€ 7.00

25-2

681663130013L
ref: 25-2

EMBLEM

€ 5.00

26

0324115125
ref: 26
03241-1512B

SCREW, BRACKET

€ 2.50

27

0914805019
ref: 27

NUT

€ 2.00

28

0324115125
ref: 28
03241-1512B

SCREW, BRACKET

€ 2.50

29

0914805038
ref: 29

NUT

€ 2.50

30

0354104125
ref: 30
03541-0412A

SCREW

€ 1.50

30

0354104125
ref: 30
03541-0412A

SCREW

€ 1.50
