SIGNAL GENERATOR

GSXR750 1992 (N) USA (E03)

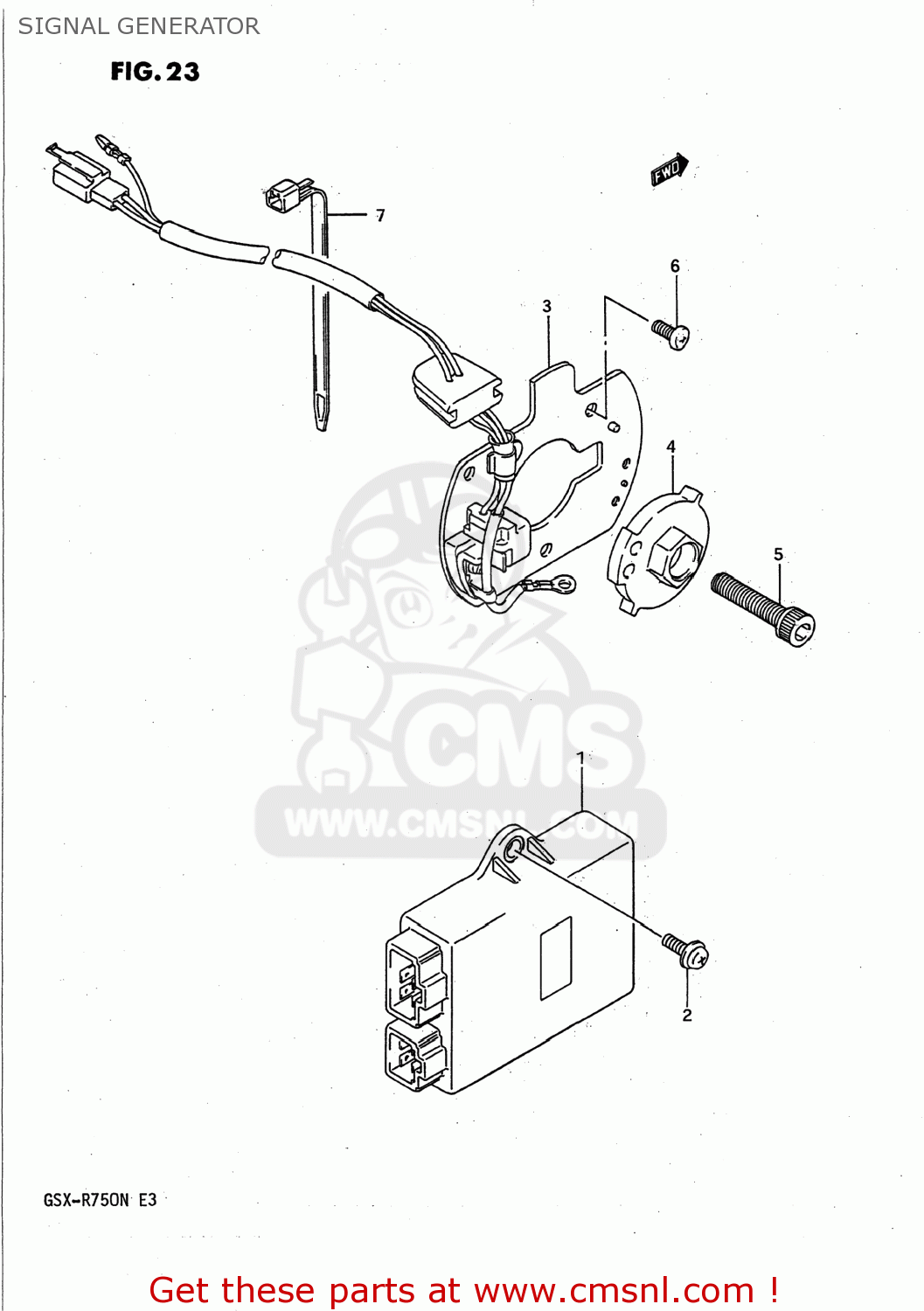

Signal generator diagram GSXR750 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290017D00
ref: 1-1

IGNITOR

€ 514.00

1-2

3290017D20
ref: 1-2

IGNITER UNIT

€ 387.50

0211216126
ref: 2
02112-1612B

SCREW

€ 2.00

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4-1

3312019C00
ref: 4-1
33120-19C20

ROTOR,SIGNAL

€ 182.00

4-2

3312048B20
ref: 4-2

ROTOR,SIGNAL

€ 115.50

0711008306
ref: 5
07130-0830A

BOLT

€ 3.00

0211205107
ref: 6

SCREW

€ 2.00

0940714403
ref: 7

CLAMP(L:125)

€ 2.50
