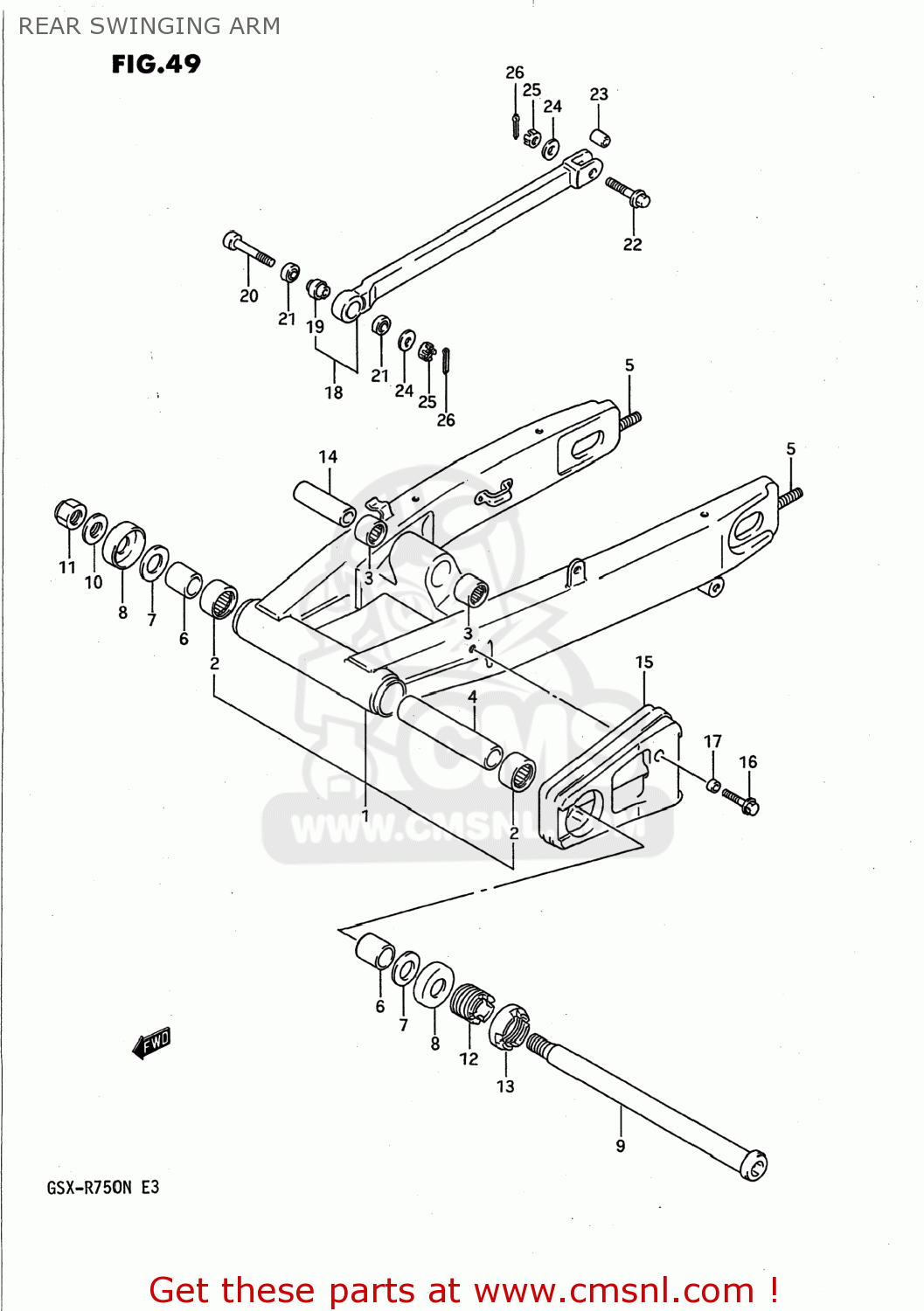

REAR SWINGING ARM

ref

part #

description

quantity

1

6100017D00
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,130.00

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6128217C00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 11.50

5

6143140C00
ref: 5
09108-08261

STUD,CHAIN ADJUSTER BOLT

€ 7.50

6

6125117C00
ref: 6

SPACER,RR SWGARM PIVOT BERRING

€ 36.00

7-1

0821120381
ref: 7-1

WASHER

€ 3.00

7-2

0821120382
ref: 7-2

WASHER

€ 3.00

8

6126217C00
ref: 8

DUST SEAL,RR SWGARM PIVOT

€ 8.00

9

6121140C00
ref: 9

SHAFT,REAR SWING ARM PIVOT

€ 90.50

10

0832211188
ref: 10
08322-0118B

WASHER

€ 2.50

11

0915918007
ref: 11

NUT

€ 14.00

12

6121340C30
ref: 12

BOLT,RR SWGARM PIVOT

€ 63.50

13

6121440C30
ref: 13
61214-40C31

NUT,REAR SWING ARM PIVOT

€ 16.50

14

6231717C00
ref: 14

SPACER,RR CUSHION LEVER

€ 26.00

15

6127340C00
ref: 15

BUFFER,CHAIN TOUCH DEFENSE

€ 41.00

16

0911606111
ref: 16
09116-06152

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

17

0918006002
ref: 17
09180-06283

SPACER

€ 2.00

18

6430007810
ref: 18
64300-07811

TORQUE LINK SET,REAR

€ 165.00

19

6435240411
ref: 19
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

20

0910608048
ref: 20

BOLT(8X48)

€ 4.50

21

6433940410
ref: 21

6433940410

22

0910308160
ref: 22

BOLT(8X38)

€ 6.00

23

6433620A00
ref: 23

SPACER,RR TORQUE LINK RR

€ 8.00

24

0832211088
ref: 24
08322-01087

WASHER

€ 2.00

25

0831441088
ref: 25
08314-4008B

NUT 8MM

€ 2.50

26

0411120208
ref: 26
04111-2020A

PIN 20X20

€ 1.50
