Buy Suzuki LS Parts Online


AIR CLEANER

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

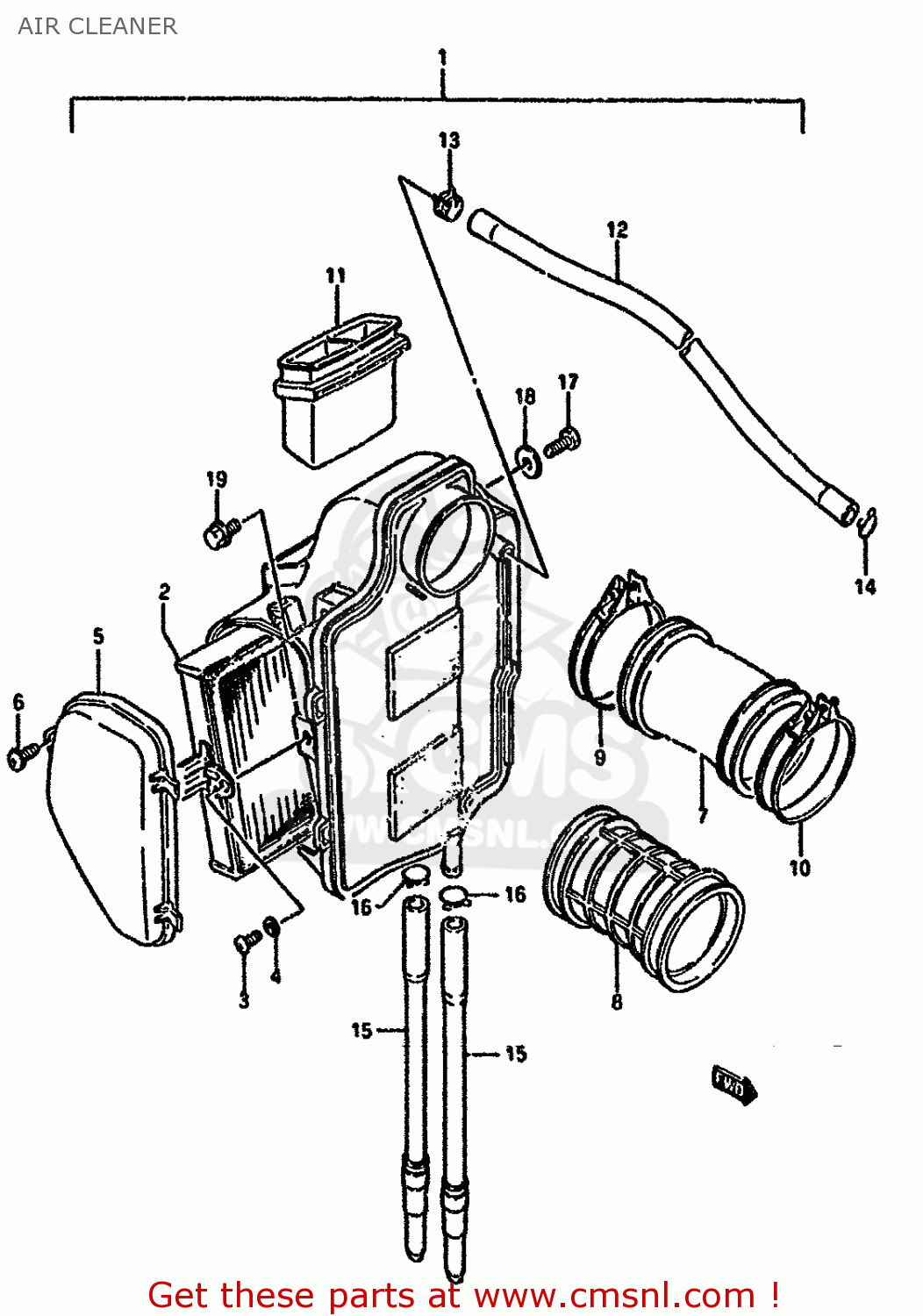

Air cleaner diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

AIR CLEANER LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
AIR CLEANER LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
AIR CLEANER LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
prices are in EUR
ref
part #
description
quantity
1-1
1370024B10
ref: 1-1
MODEL G, 13700-24B12
CLEANER ASSY,AIR
€ 159.00
1-2
1370024B12
ref: 1-2
MODEL J/K/L
CLEANER ASSY,AIR
€ 159.00
1-3
1370024B13
ref: 1-3
MODEL M/R
CLEANER,AIR
1370024B13
€ 159.00
2-1
1378024B00
ref: 2-1
MODEL G/J/K/L
FILTER,AIR CLEANER
1378024B00
€ 31.50
2-2
1378024B01
ref: 2-2
MODEL M/R
FILTER ASSY,AIR
1378024B01
€ 31.50
3
0211205107
ref: 3
SCREW
0211205107
€ 2.00
4
0832121057
ref: 4
LOCK WASHER
0832121057
€ 2.00
5-1
1374024B00
ref: 5-1
MODEL G/J/K/L
CAP,AIR CLEANER
€ 13.50
5-2
1374024B01
ref: 5-2
MODEL M/R
CAP,AIR CLEANER
1374024B01
€ 13.50
6
0214205124
ref: 6
SCREW, FRONT & REAR
€ 1.50
7
1388124B00
ref: 7
MODEL G, 13881-24B01
TUBE,AIR CLEANER OUTLET
1388124B00
€ 17.50
8
1388124B01
ref: 8
MODEL J/K/L/M/R
TUBE,AIR CLEANER OUTLET
1388124B01
€ 17.50
9
0940270207
ref: 9
CLAMP
0940270207
€ 6.00
10
0940264208
ref: 10
CLAMP
0940264208
€ 6.00
11
1389124B10
ref: 11
TUBE,INLET
€ 15.00
12
1385100450
ref: 12
L:450 430
TUBE,BREATHER
€ 13.50
13
1382443400
ref: 13
CLIP
€ 2.00
14
0940114301
ref: 14
CLIP
0940114301
€ 2.00
15
1387011267
ref: 15
DRAIN TUBE
€ 13.50
16
1382400A00
ref: 16
CLIP
1382400A00
€ 2.50
17
0110706166
ref: 17
BOLT
€ 2.00
18
0916006057
ref: 18
WASHER
€ 2.00
19-1
0151706125
ref: 19-1
MODEL G/J/K/L/M
BOLT 6X12
0151706125
€ 2.50
19-2
0155006127
ref: 19-2
MODEL R
BOLT
0155006127
€ 2.50
