CAM SHAFT-VALVE

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

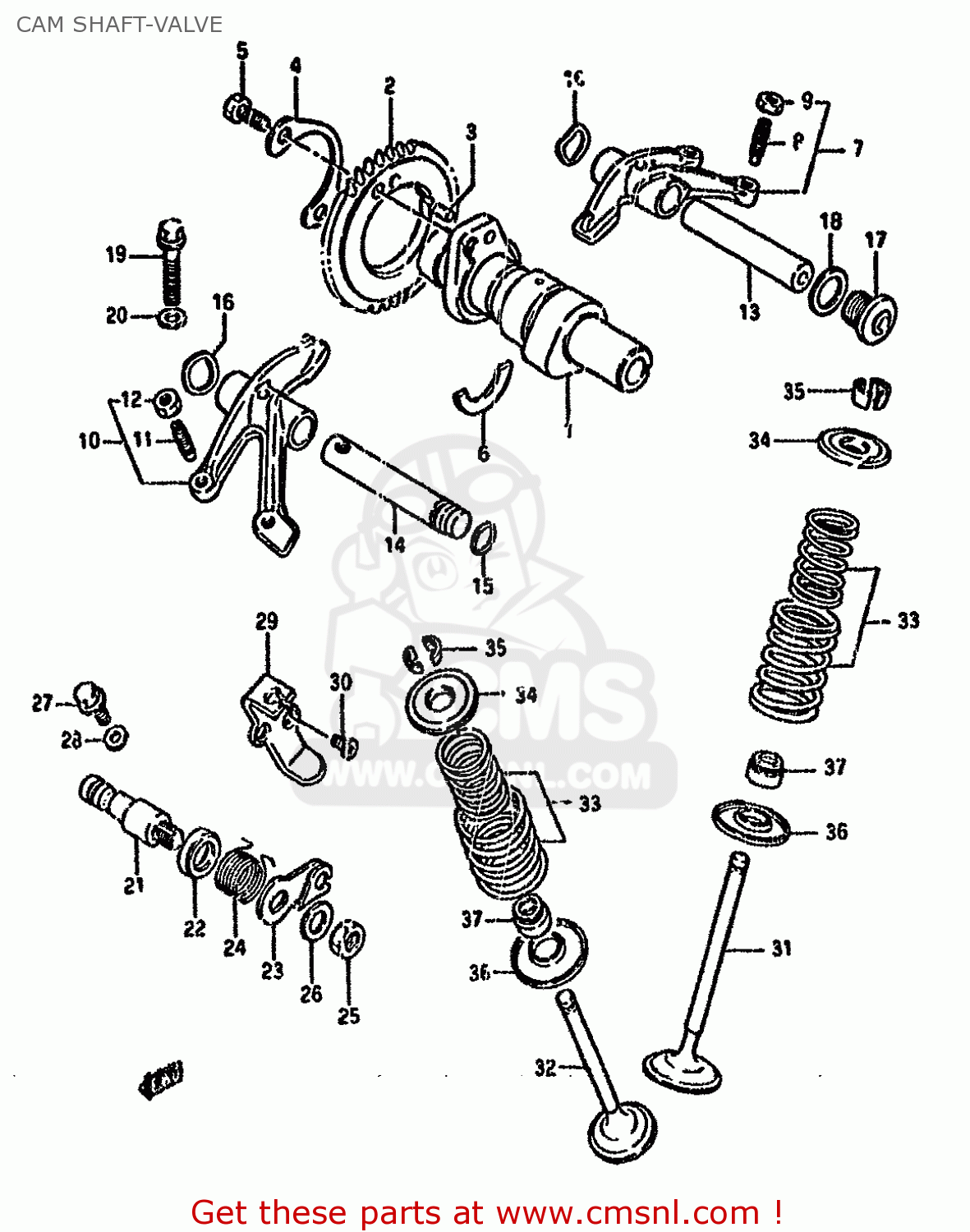

Cam shaft-valve diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

CAM SHAFT-VALVE LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
CAM SHAFT-VALVE LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
CAM SHAFT-VALVE LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
prices are in EUR
ref
part #
description
quantity
1
1271124B03
ref: 1
CAMSHAFT
1271124B03
€ 205.00
2
1274124B00
ref: 2
SPROCKET,CAMSHAFT
1274124B00
€ 35.50
3
0926105009
ref: 3
PIN(5X12.9)
0926105009
€ 1.50
4
1274744000
ref: 4
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
5
0911106053
ref: 5
BOLT(6X16)
0911106053
€ 4.00
6
0939025003
ref: 6
C RING
0939025003
€ 2.50
7
1284037401
ref: 7
ARM,VALVE ROCKER,INTAKE
1284037401
€ 80.50
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
1284232411
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
1284332400
€ 2.50
10
1285024B01
ref: 10
ARM,VALVE ROCKER,EXHAUST
1285024B01
€ 80.50
11
1284232411
ref: 11
SCREW,TAPPET ADJUSTING
1284232411
€ 5.00
12
1284332400
ref: 12
NUT,ADJUSTING SCREW
1284332400
€ 2.50
13
1286112D00
ref: 13
L:73, 12861-14A01
SHAFT,VALVE ROCKER ARM INTAKE
1286112D00
€ 19.50
14
1287114A00
ref: 14
L:78.5
SHAFT,EXHAUST VALVE ROCKER ARM
1287114A00
€ 20.00
15
0928009005
ref: 15
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
16
0916412018
ref: 16
WASHER
0916412018
€ 1.50
17-1
0924814004
ref: 17-1
MODEL G
PLUG
0924814004
€ 5.00
17-2
0924814005
ref: 17-2
MODEL J/K/L/M/R
PLUG,14X12
0924814005
€ 5.00
18
0916814002
ref: 18
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
19-1
0151706307
ref: 19-1
MODEL G/J/K/L/M
BOLT
0151706307
€ 2.00
19-2
0155006303
ref: 19-2
MODEL R
BOLT
0155006303
€ 2.50
20
0916806023
ref: 20
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
21
1294124B00
ref: 21
SHAFT,DECOMPRESSION,LEFT
€ 20.50
22
0928210012
ref: 22
SEAL,OIL(10X20X6)
0928210012
€ 7.50
23
1294224B00
ref: 23
LEVER,DECOMP SHAFT,L
1294224B00
€ 3.50
24
0944817020
ref: 24
SPRING
0944817020
€ 21.50
25-1
0831022085
ref: 25-1
MODEL G/J/K/L/M
NUT 8MM
0831022085
€ 2.00
25-2
0831000087
ref: 25-2
MODEL R
NUT
0831000087
€ 2.00
26-1
0832211084
ref: 26-1
MODEL G/J/K/L/M
WASHER
0832211084
€ 1.50
26-2
0832201087
ref: 26-2
MODEL R
WASHER
0832201087
€ 2.00
27
0910306090
ref: 27
BOLT(6X16)
0910306090
€ 2.00
28
0916806023
ref: 28
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
29
1294424B00
ref: 29
HOLDER,DECOMP CABLE,L
1294424B00
€ 8.50
30
0212205103
ref: 30
SCREW
0212205103
€ 1.00
31
1291124B01
ref: 31
VALVE,INTAKE
1291124B01
€ 28.50
32
1291224B01
ref: 32
VALVE,EXHAUST
1291224B01
€ 57.00
33
1292037402
ref: 33
SPRING SET,VALVE
1292037402
€ 12.50
34
1293145000
ref: 34
RETAINER,VALVE SPRING
1293145000
€ 6.00
35
1293282000
ref: 35
COTTER,VALVE
1293282000
€ 2.00
36
1293337400
ref: 36
SEAT,VALVE SPRING
1293337400
€ 3.50
37
0928907002
ref: 37
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
