FRONT MASTER CYLINDER (LS650FG/FJ/FK)

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

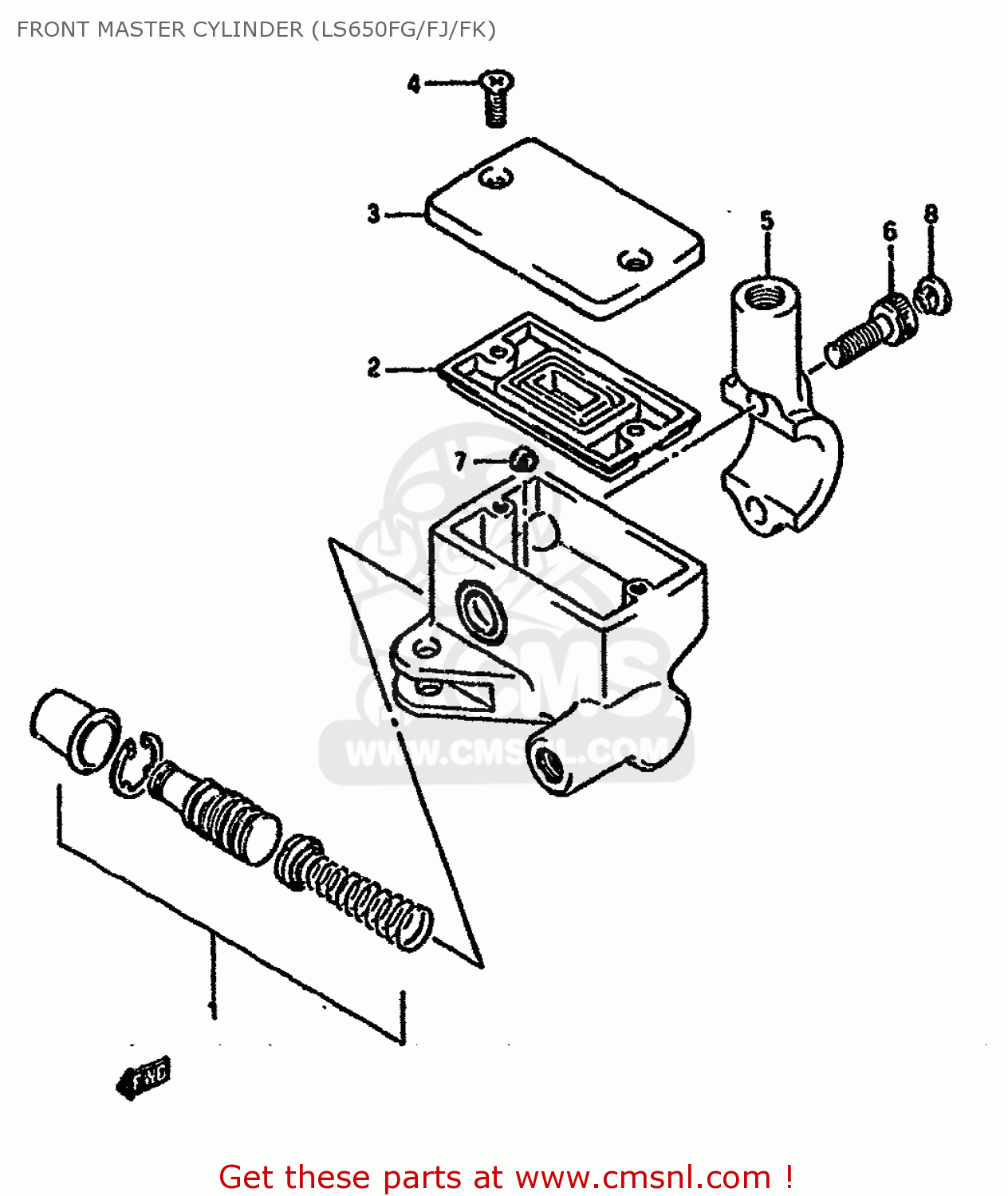

Front master cylinder (ls650fg/fj/fk) diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

FRONT MASTER CYLINDER (LS650FG/FJ/FK) LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

FRONT MASTER CYLINDER (LS650FG/FJ/FK) LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

prices are in EUR

ref

part #

description

quantity

0

5960024B00
ref: 0
LS650 FG/FJ

CYLINDER ASSEMBLY,FRONT MASTER

€ 395.50

0

5960024B40
ref: 0
LS650FK MICRO SWITCH

CYLINDER ASSY,FRONT MASTER (FLAT TYPE)

€ 260.00

1

5960036820
ref: 1

CUP SET,MASTER CYLINDER

€ 37.50

2

5966749460
ref: 2

5966749460

3-1

5966938A30
ref: 3-1
LS650FG/FJ

CAP

€ 45.50

3-2

5966924B00
ref: 3-2
LS650FK

CAP

€ 59.00

4

5969138A00
ref: 4

SCREW,RESERVOIR CAP

€ 2.00

5

5967138A00
ref: 5

HOLDER

€ 37.50

6

0711006208
ref: 6

BOLT ,6X20

€ 3.50

7

5966448B00
ref: 7
LS650FK FOR 59600-24

PROTECTOR

€ 8.00

8

0925005008
ref: 8

CAP(OD:10)

€ 5.00
