CRANKCASE

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

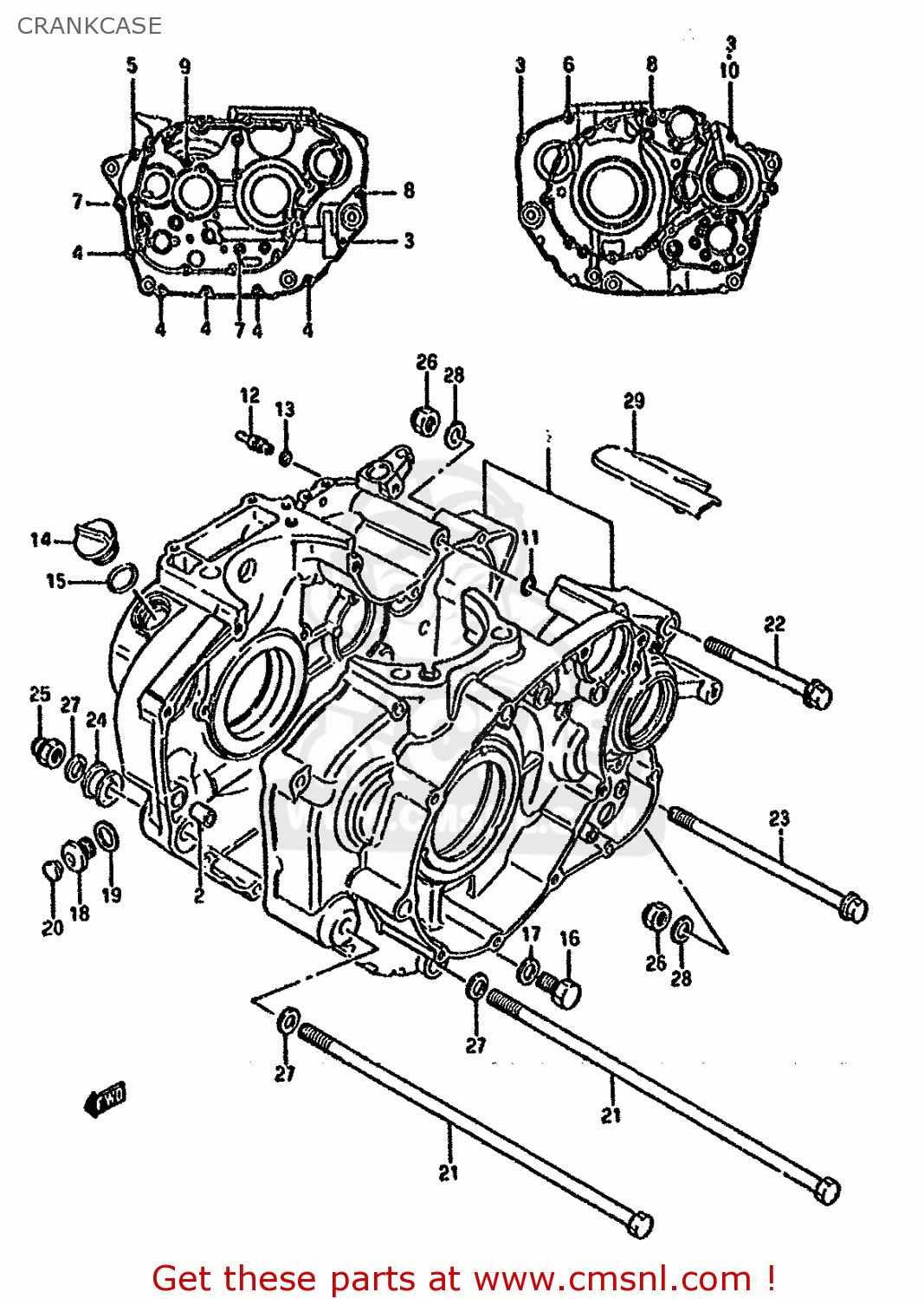

Crankcase diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

CRANKCASE LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
CRANKCASE LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
CRANKCASE LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
prices are in EUR
ref
part #
description
quantity
1
1130124812
ref: 1
CRANKCASE SET
€ 1,352.00
2
0920611005
ref: 2
PIN (11X20)(SUS)
€ 6.50
3
0154706407
ref: 3
BOLT
0154706407
€ 2.50
4
0154706457
ref: 4
BOLT
0154706457
€ 2.50
5
0154706557
ref: 5
BOLT
0154706557
€ 2.50
6
0154706607
ref: 6
BOLT
0154706607
€ 2.50
7
0154706657
ref: 7
BOLT
0154706657
€ 2.00
8
0154706707
ref: 8
BOLT
0154706707
€ 2.50
9
0154706757
ref: 9
BOLT
0154706757
€ 2.50
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
11
0928010013
ref: 11
O RING(D:2.4,ID:9.6)
0928010013
€ 5.50
12
0949336004
ref: 12
JET,OIL GALLERY(18)
0949336004
€ 8.00
13
0928004004
ref: 13
O RING(D:1.2,ID:4)
0928004004
€ 2.00
14
0925920007
ref: 14
09259-20009
PLUG(20X10)
0925920007
€ 6.50
15
0928017003
ref: 15
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
16-1
0110712208
ref: 16-1
MODEL G/J/K/L/M
BOLT
€ 3.00
16-2
0150012203
ref: 16-2
MODEL R
BOLT
0150012203
€ 3.00
17
0916812002
ref: 17
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
18
0924814005
ref: 18
PLUG,14X12
0924814005
€ 5.00
19
0916814002
ref: 19
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
20
0925008014
ref: 20
CAP(OD:12)
0925008014
€ 3.50
21
0910410034
ref: 21
BOLT(10X323)
0910410034
€ 16.50
22
0910310087
ref: 22
BOLT(10X105)
0910310087
€ 6.50
23
0910310053
ref: 23
BOLT(10X180)
0910310053
€ 7.50
24
1161038400
ref: 24
SPACER,ENGINE MOUNT(L20)
1161038400
€ 9.00
25
0915910064
ref: 25
NUT
0915910064
€ 8.50
26
0915910047
ref: 26
NUT
0915910047
€ 7.50
27
0832201107
ref: 27
WASHER
0832201107
€ 2.50
28-1
0832211104
ref: 28-1
MODEL G/J/K/L/M
WASHER 10MM
0832211104
€ 2.50
28-2
0832201103
ref: 28-2
MODEL R
WASHER
0832201103
€ 2.50
29
1138424B00
ref: 29
MODEL J/K/L/M/R
COVER,CRANKCASE START
€ 18.00
