CAM CHAIN

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

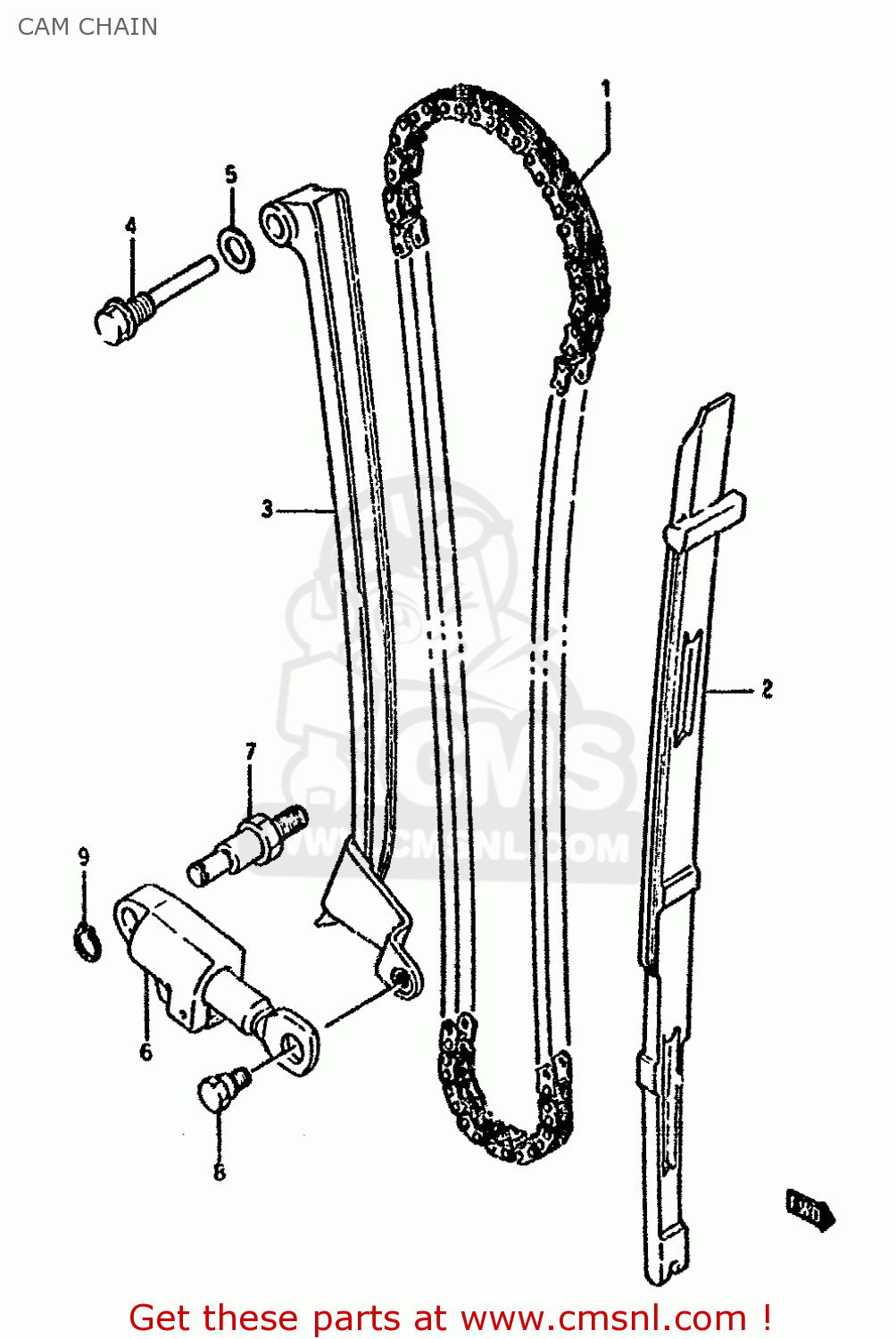

Cam chain diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

prices are in EUR

ref

part #

description

quantity

1276024B00
ref: 1
132LE

CHAIN,CAMSHAFT DRIVE

€ 154.00

1277124B01
ref: 2

GUIDE,CAM CHAIN

€ 36.50

1281124B00
ref: 3

TENSIONER,CAM CHAIN

€ 78.00

1281224B00
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 5.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283024B00
ref: 6

ADJUSTER ASSEMBLY,TENSIONER

€ 68.50

0910808194
ref: 7

BOLT,STUD

€ 9.50

0911906069
ref: 8

BOLT

€ 5.50

0833131086
ref: 9

CIRCLIP

€ 2.00
