MAGNETO

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

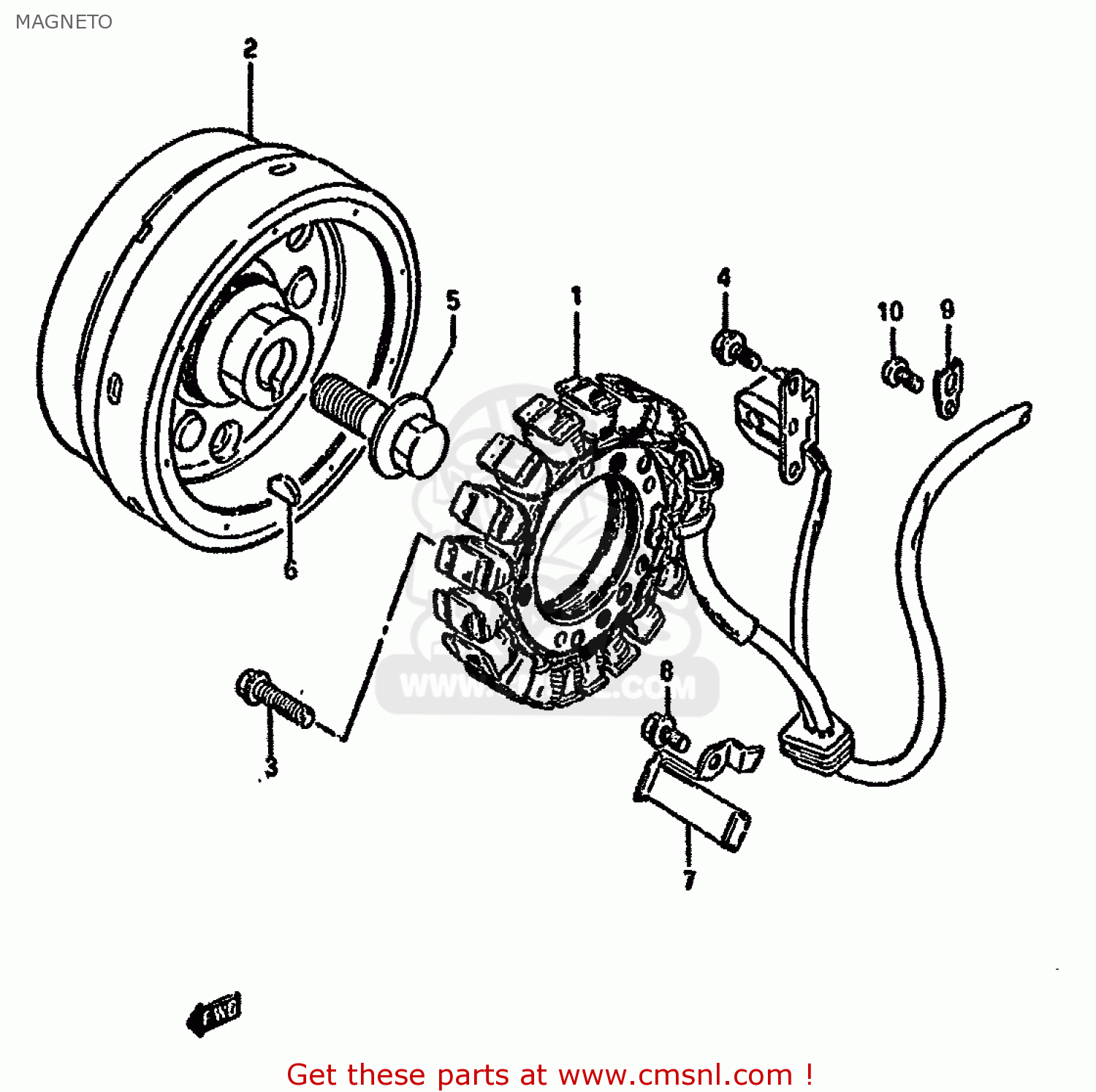

Magneto diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

prices are in EUR

ref

part #

description

quantity

3210124B00
ref: 1

STATOR ASSEMBLY

€ 603.00

3210224B00
ref: 2

ROTOR,FLYWHEEL

€ 422.50

0154706257
ref: 3

BOLT

€ 2.50

0154705107
ref: 4

BOLT

€ 1.50

0910314001
ref: 5

BOLT(14X43)

€ 7.00

0942005007
ref: 6

KEY

€ 3.00

3237124B00
ref: 7

CLAMP,MAGNETO LEAD WIRE NO.1

€ 3.00

0154705107
ref: 8

BOLT

€ 1.50

3149745000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205107
ref: 10

SCREW

€ 2.00
