WIRING HARNESS (MODEL G/J/K/L/M)

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

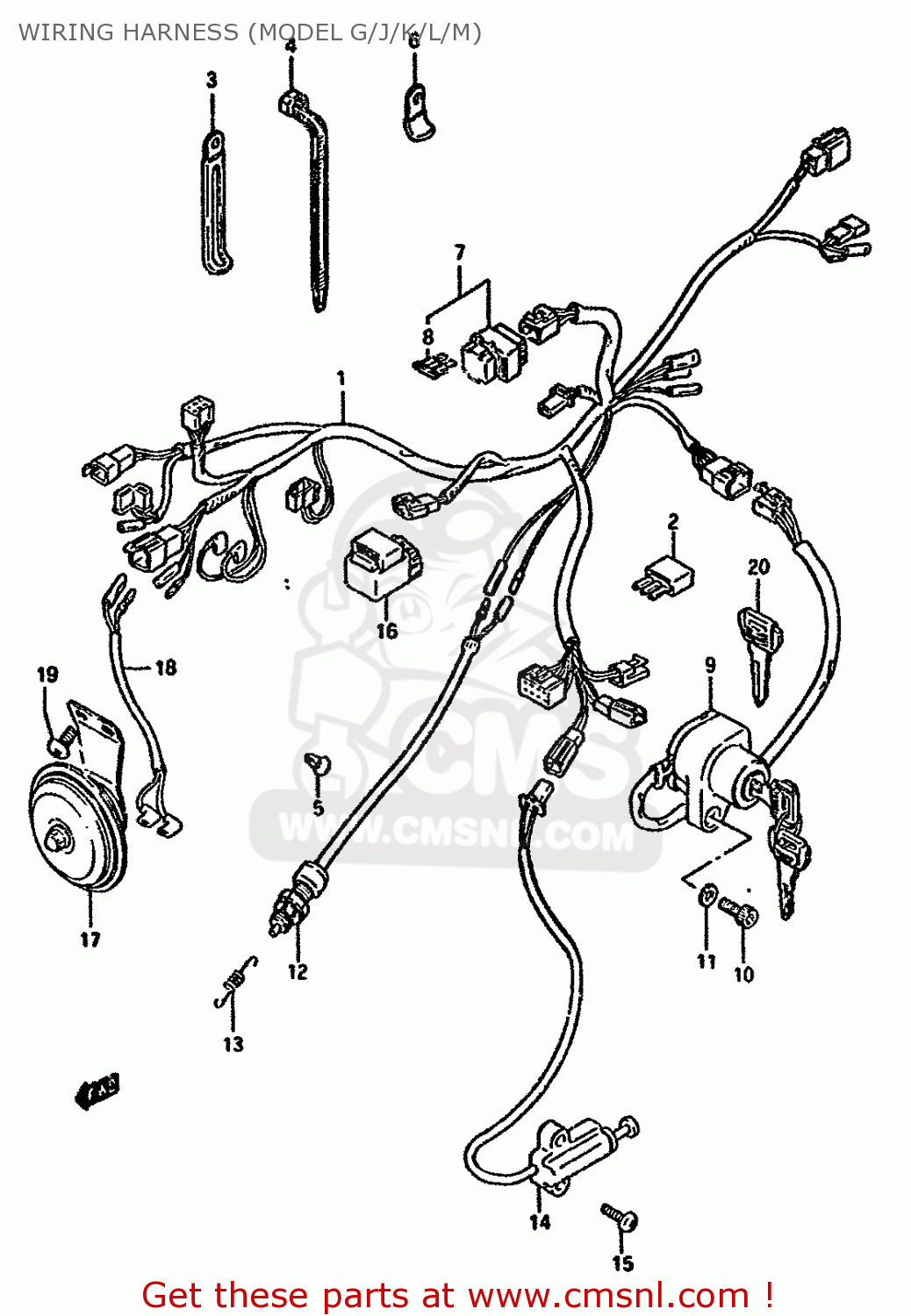

Wiring harness (model g/j/k/l/m) diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

WIRING HARNESS (MODEL G/J/K/L/M) LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
WIRING HARNESS (MODEL G/J/K/L/M) LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
WIRING HARNESS (MODEL G/J/K/L/M) LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
prices are in EUR
ref
part #
description
quantity
1
3661024B50
ref: 1
HARNESS,WIRING
€ 193.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3-1
0940406404
ref: 3-1
CLAMP
0940406404
€ 3.00
3-2
0940406422
ref: 3-2
CLAMP
€ 2.50
3-3
0940408404
ref: 3-3
CLAMP
€ 3.00
4-1
0940714403
ref: 4-1
CLAMP(L:125)
0940714403
€ 2.50
4-2
0940718402
ref: 4-2
CLAMP(L:165)
0940718402
€ 2.50
4-3
0940725401
ref: 4-3
CLAMP(L:235)
0940725401
€ 4.00
5
0940905306
ref: 5
CLIP
€ 2.00
6
3665124B00
ref: 6
CLAMP
€ 0.00
7
3674024B01
ref: 7
BOX ASSY,FUSE
3674024B01
€ 18.00
8
0948120101
ref: 8
FUSE(20A)
0948120101
€ 2.00
9
3711024B01
ref: 9
SWITCH ASSEMBLY,IGNITION
€ 71.00
10
0713005167
ref: 10
BOLT
0713005167
€ 2.50
11
0832101057
ref: 11
WASHER,LOCK
0832101057
€ 2.00
12
3774031D00
ref: 12
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
13
0944306077
ref: 13
SPRING
0944306077
€ 4.50
14
3784044A20
ref: 14
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
15
0155006203
ref: 15
BOLT
0155006203
€ 2.50
16
3874024B10
ref: 16
RELAY ASSEMBLY
3874024B10
€ 37.50
17
3850024B00
ref: 17
HORN ASSY
€ 52.00
18
3685224B10
ref: 18
WIRE,HORN LEAD
3685224B10
€ 5.50
19
0214206123
ref: 19
SCREW 6X12
0214206123
€ 2.00
20-1
3714603A00
ref: 20-1
OPT,TYPE C
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
20-2
3714603A10
ref: 20-2
OPT,TYPE D
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
20-3
3714603A20
ref: 20-3
OPT,TYPE E
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
20-4
3714603A30
ref: 20-4
OPT,TYPE F
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
18-2
3784024B61
ref: 18-2
MODEL L/M
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
19
0211206205
ref: 19
MODEL J/K/L/M
SCREW
€ 2.00
20
0832121064
ref: 20
MODEL J/K/L/M
WASHER,LOCK
0832121064
€ 2.00
21
3874024B10
ref: 21
MODEL J/K/L/M
RELAY ASSEMBLY
3874024B10
€ 37.50
22
3850024B00
ref: 22
MODEL G E2,E21,E24
HORN ASSY
€ 52.00
23
3850024B10
ref: 23
E1,E4,E15,E16,E17,E1
HORN ASSY
€ 64.50
24
3685224B10
ref: 24
E1,E4,E15,E16,E17,E1
WIRE,HORN LEAD
3685224B10
€ 5.50
25
0214206125
ref: 25
SCREW 6X12
0214206125
€ 2.00
26-1
3714603A00
ref: 26-1
OPT,TYPE C
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
26-2
3714603A10
ref: 26-2
OPT,TYPE D
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
26-3
3714603A20
ref: 26-3
OPT,TYPE E
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
26-4
3714603A30
ref: 26-4
OPT,TYPE F
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
