Buy Suzuki LS Parts Online


FOOTREST

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

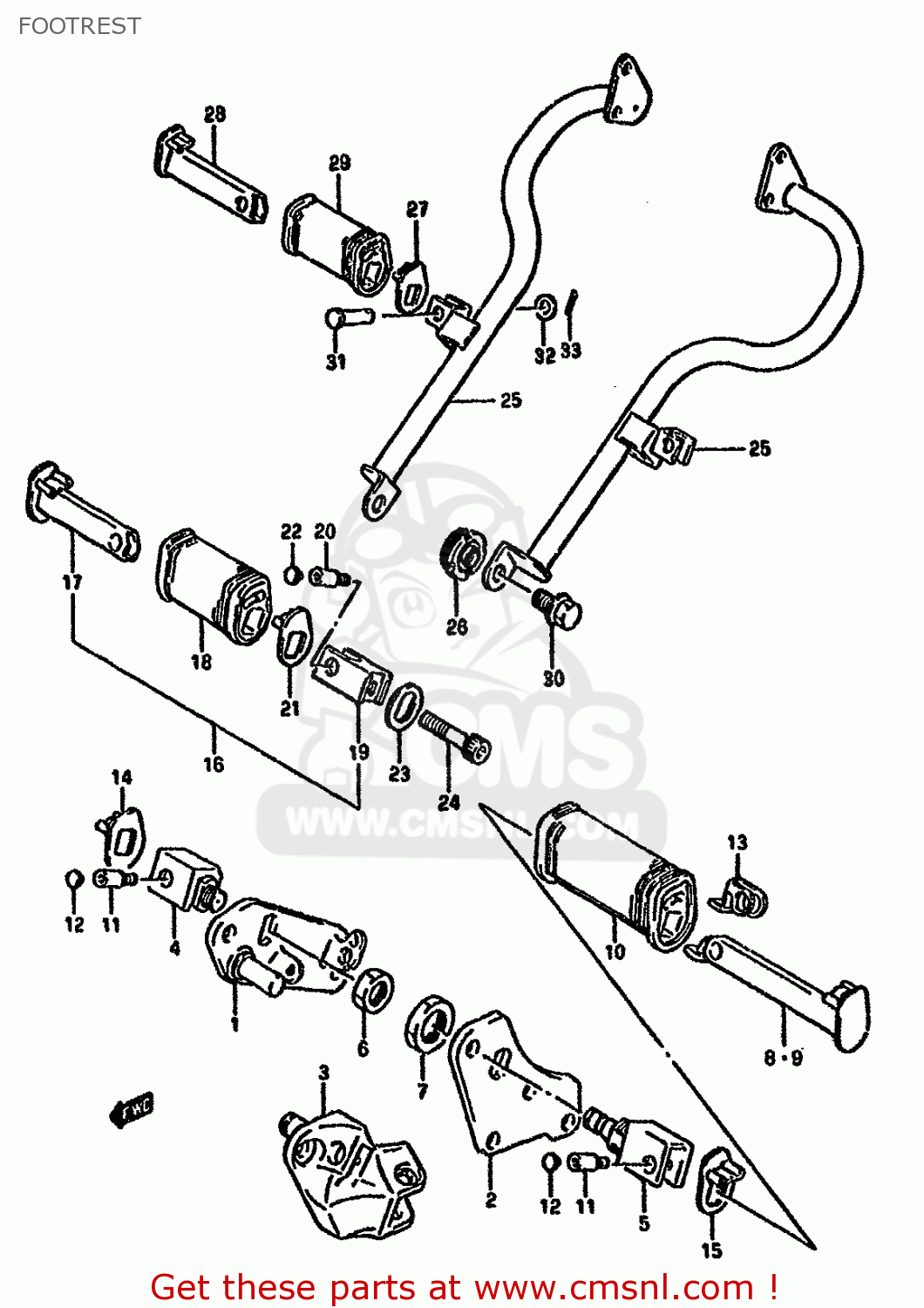

Footrest diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

FOOTREST LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
FOOTREST LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
FOOTREST LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
prices are in EUR
ref
part #
description
quantity
1
4351024B00
ref: 1
BRACKET,FR FOOTREST,R
4351024B00
€ 144.00
2-1
4352024B11
ref: 2-1
MODEL G
BRACKET,FRONT FOOTREST LH
4352024B11
€ 36.00
2-2
4352024B02
ref: 2-2
MODEL G E4,E17,E21,E
BRACKET,FRONT FOOTREST
4352024B02
€ 36.00
3
4352024B21
ref: 3
MODEL J/K/L/M/R
BRACKET,FRONT FOOTREST
4352024B21
€ 166.00
4
4351724B01
ref: 4
HOLDER,FR FOOTREST,R
4351724B01
€ 59.00
5
4352724B01
ref: 5
MODEL G
HOLDER,FR FOOTREST,L
4352724B01
€ 66.50
6
0914016029
ref: 6
NUT
0914016029
€ 3.50
7
0914022006
ref: 7
MODEL G
NUT
0914022006
€ 6.00
8-1
4353024B10
ref: 8-1
MODEL G
BAR,FRONT FOOTREST RH
4353024B10
€ 39.00
8-2
4353024B01
ref: 8-2
MODEL J/K/L/M/R
BAR,FRONT FOOTREST,RIGHT
4353024B01
€ 39.00
9-1
4354024B10
ref: 9-1
MODEL G
BAR,FRONT FOOTREST LH
€ 39.00
9-2
4354024B01
ref: 9-2
MODEL J/K/L/M/R
BAR,FRONT FOOTREST,LEFT
€ 39.00
10
4355138A00
ref: 10
RUBBER,FR FOOTREST
4355138A00
€ 9.00
11
4364138A00
ref: 11
BOLT,FRONT FOOTREST RUBBER
4364138A00
€ 5.00
12
4357624B00
ref: 12
CAP,PILLION FOOTREST BOLT
4357624B00
€ 3.00
13-1
4357024B00
ref: 13-1
MODEL G/J/K/L/M
CUSHION,FRONT FOOTREST
4357024B00
€ 5.50
13-2
4357024B01
ref: 13-2
MODEL R
CUSHION,FR FOOTREST
4357024B01
€ 5.50
14
4347024B00
ref: 14
WASHER,FR FOOTREST,R
4347024B00
€ 4.50
15
4348024B00
ref: 15
WASHER,FR FOOTREST,L
4348024B00
€ 4.50
16-1
4360024B00
ref: 16-1
FOOTREST ASSY,PILLION,R
4360024B00
€ 81.00
16-2
4370024B00
ref: 16-2
FOOTREST ASSY,PILLION,L
4370024B00
€ 81.00
17-1
4361024B00
ref: 17-1
BAR COMP,PILLION FOOTREST
4361024B00
€ 20.50
17-2
4371024B00
ref: 17-2
BAR,PILLION FOOTREST,LEFT
4371024B00
€ 24.00
18
4365124B00
ref: 18
RUBBER,PILLION FOOTREST
4365124B00
€ 9.50
19-1
4362124B00
ref: 19-1
MODEL G
BAR,PILLION FOOTREST
€ 38.50
19-2
4362124B10
ref: 19-2
MODEL J/K/L/M/R
HOLDER,PILLION FOOTREST
4362124B10
€ 38.50
20
4364138A00
ref: 20
BOLT,FRONT FOOTREST RUBBER
4364138A00
€ 5.00
21-1
4357038A00
ref: 21-1
WASHER,FR FOOTREST,R
4357038A00
€ 5.00
21-2
4358038A00
ref: 21-2
WASHER,FR FOOTREST,L
4358038A00
€ 8.50
22
4357624B00
ref: 22
CAP,PILLION FOOTREST BOLT
4357624B00
€ 3.00
23
4362224B00
ref: 23
WASHER,PILLION FOOTREST HOLDER
4362224B00
€ 2.00
24-1
0711010455
ref: 24-1
MODEL G/J/K
BOLT
€ 4.00
24-2
0910610022
ref: 24-2
MODEL L/M
BOLT 10X45
0910610022
€ 4.00
24-3
0713010453
ref: 24-3
MODEL R
BOLT
0713010453
€ 4.00
25-1
4365024B10
ref: 25-1
E34
HOLDER,PILLION FOOTREST RH
€ 0.00
25-2
4375024B10
ref: 25-2
E34
HOLDER,PILLION FOOTREST LH
€ 0.00
26
4376024B10
ref: 26
E34
BOSS,PILLION FOOTREST
€ 85.00
27-1
4357038A00
ref: 27-1
E34
WASHER,FR FOOTREST,R
4357038A00
€ 5.00
27-2
4358038A00
ref: 27-2
E34
WASHER,FR FOOTREST,L
4358038A00
€ 8.50
28-1
4361024B00
ref: 28-1
E34
BAR COMP,PILLION FOOTREST
4361024B00
€ 20.50
28-2
4371024B00
ref: 28-2
E34
BAR,PILLION FOOTREST,LEFT
4371024B00
€ 24.00
29
4365124B00
ref: 29
E34
RUBBER,PILLION FOOTREST
4365124B00
€ 9.50
30
0151712165
ref: 30
E34
BOLT
0151712165
€ 3.00
31
0920010016
ref: 31
E34
PIN
0920010016
€ 3.00
32
0832211104
ref: 32
E34
WASHER 10MM
0832211104
€ 2.50
33
0411125208
ref: 33
E34
PIN 25X20
0411125208
€ 2.00
