OIL PUMP

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

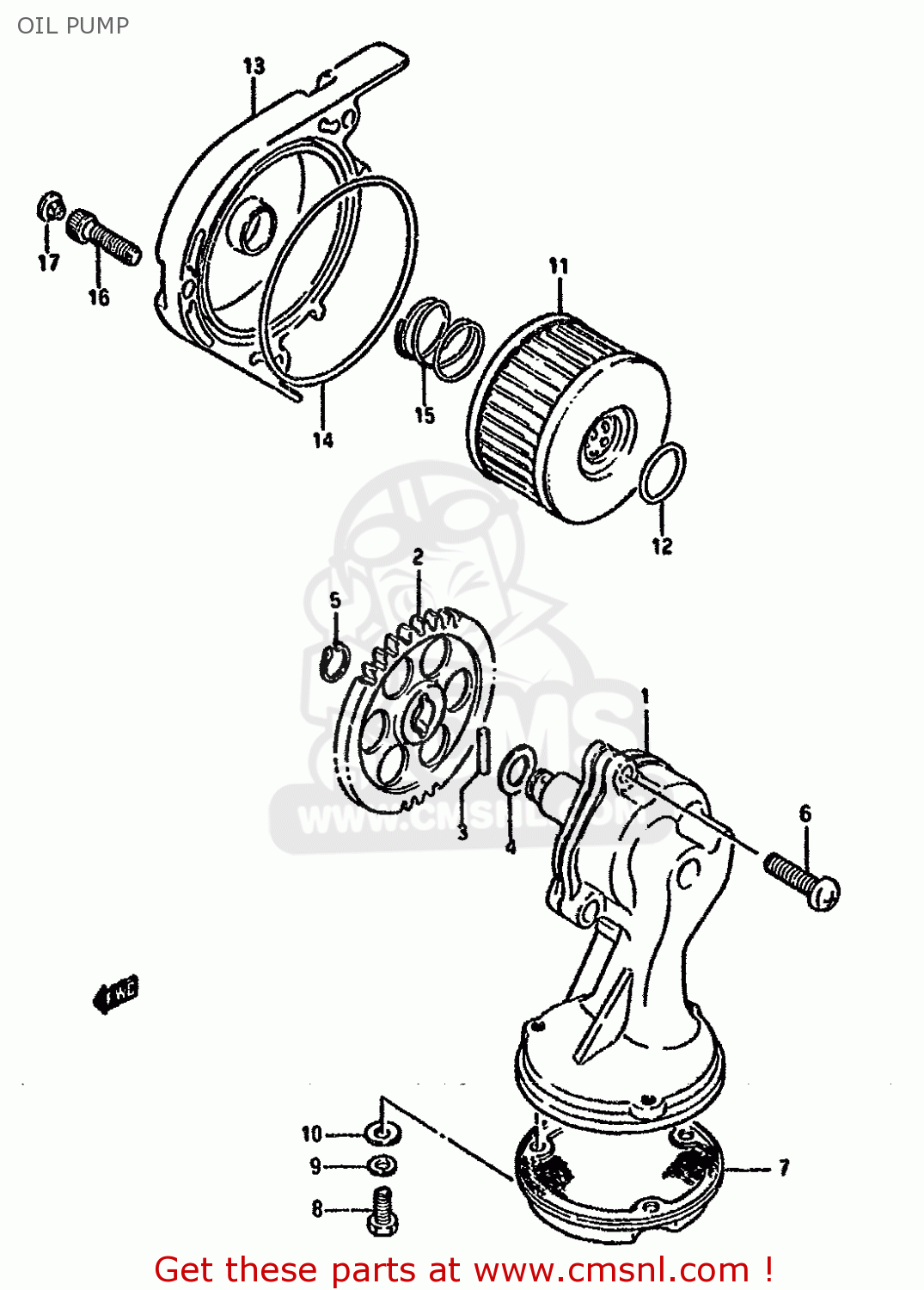

Oil pump diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

prices are in EUR

ref

part #

description

quantity

1640024B00
ref: 1

PUMP ASSY,ENGINE OIL

€ 150.00

1633124B00
ref: 2

GEAR,ENG OIL PUMP DRIVEN

€ 43.00

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

0822110185
ref: 4

SHIM

€ 2.00

0833131106
ref: 5

CIRCLIP,10MM

€ 2.00

0211206258
ref: 6

SCREW

€ 2.00

1652024B00
ref: 7

STRAINER,ENGINE OIL

€ 10.00

0110705127
ref: 8

BOLT 5X12

€ 2.00

0832121057
ref: 9

LOCK WASHER

€ 2.00

0832221057
ref: 10

WASHER

€ 2.50

1651037440
ref: 11

FILTER,ENGINE OIL

€ 7.50

0928016005
ref: 12

O RING(D:2.4,ID:15.8)

€ 1.50

1651224B00
ref: 13

CAP,OIL FILTER

€ 48.50

0928072001
ref: 14

O RING(D:2.4,ID:73)

€ 5.00

0944021004
ref: 15

SPRING

€ 13.00

16-1

0711006257
ref: 16-1
MODEL G/J/K/L/M

BOLT

€ 2.50

16-2

0713006257
ref: 16-2
MODEL R

BOLT

€ 2.50

0925005010
ref: 17
MODEL G

CAP(OD:10)

€ 4.50
