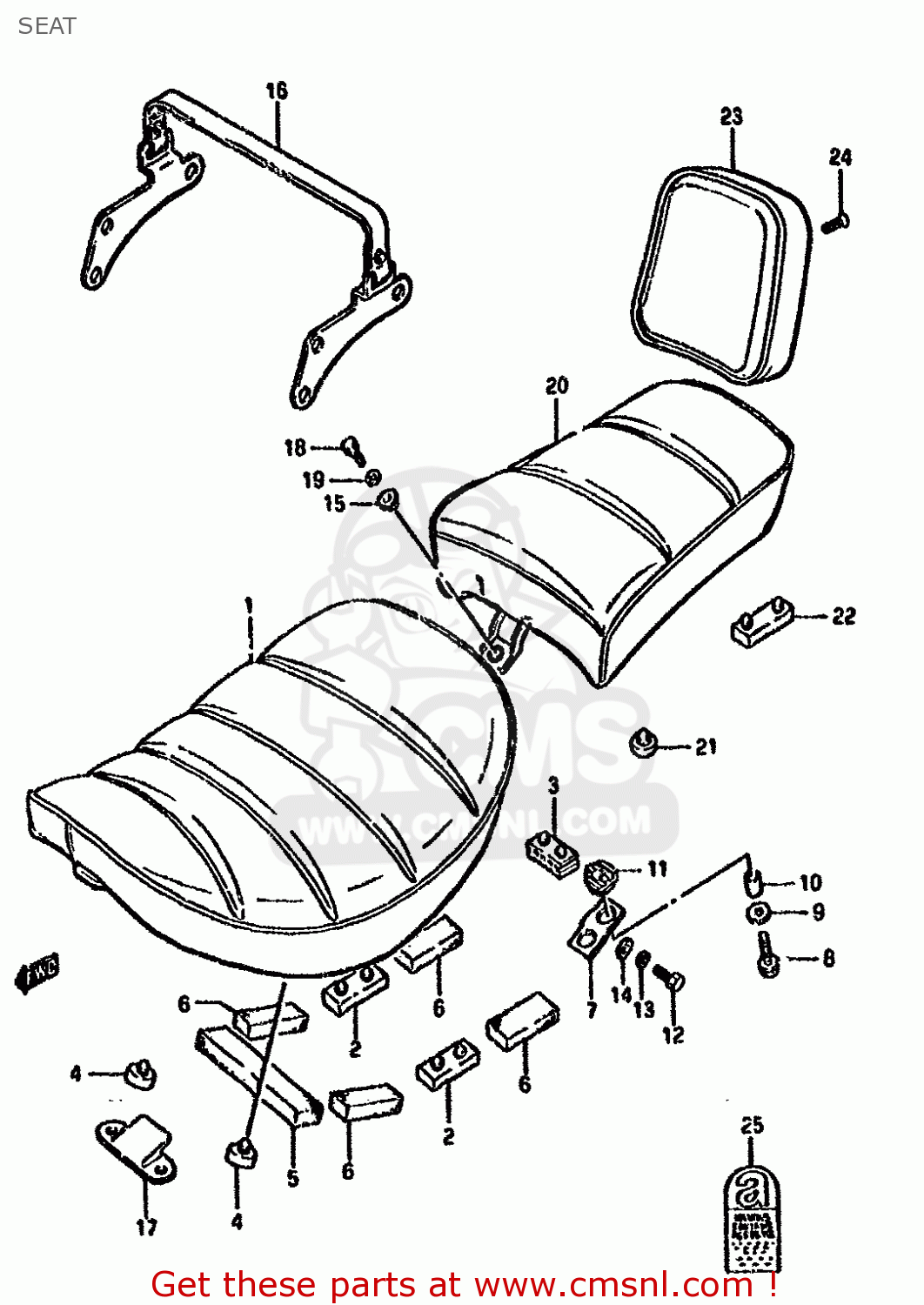

SEAT

ref

part #

description

quantity

1-1

4510024B004HS
ref: 1-1
MODEL G

SEAT ASSEMBLY

€ 191.50

1-2

4510024B204HS
ref: 1-2
MODEL J/K/L/M/R

SEAT SET

€ 191.50

2

4514943500
ref: 2

CUSHION,SEAT

€ 3.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

4514816700
ref: 4

CUSHION,FR

€ 2.00

5

4511624B00
ref: 5

CUSHION,CTR FR

€ 5.00

6

4611724B00
ref: 6

CUSHION,CTR SIDE

€ 6.00

7

4511424B00
ref: 7

BRACKET,SEAT RR

€ 6.00

8

0151706256
ref: 8

BOLT

€ 1.50

9-1

0916006020
ref: 9-1
MODEL G/J/K/L/M

WASHER

€ 2.00

9-2

0916006066
ref: 9-2
MODEL R

WASHER(6.5X20X1.6)

€ 2.00

10

4516924B00
ref: 10

COLLAR,SEAT(TS-5A1-02273)

€ 2.50

11

4511824B00
ref: 11

CUSHION,SEAT RR BRACKET

€ 2.50

12-1

0912806041
ref: 12-1
MODEL G/J

SCREW

€ 2.50

12-2

0911806088
ref: 12-2
MODEL K/L/M/R

BOLT 6X16

€ 0.00

13

0832121064
ref: 13

WASHER,LOCK

€ 2.00

14

0832221064
ref: 14

WASHER

€ 2.00

15

0916906037
ref: 15

WASHER

€ 6.50

16

4518024B004HS
ref: 16
E4,E16,E21,E22,E24,E

BAND,SEAT

€ 37.50

17

4511924B00
ref: 17

PLATE,SEAT HOOK FR

€ 2.00

18-1

0110706166
ref: 18-1
MODEL G/J

BOLT

€ 2.00

18-2

0113406166
ref: 18-2
MODEL K/L/M

BOLT

€ 2.50

18-3

0157006163
ref: 18-3
MODEL R

BOLT

€ 2.50

19

0832121066
ref: 19
MODEL G/J

WASHER,LOCK

€ 2.00

20

4530024B004HS
ref: 20

SEAT SET,PILLION

€ 187.00

21

4514924B00
ref: 21

CUSHION,SEAT

€ 0.00

22

4514943500
ref: 22

CUSHION,SEAT

€ 3.00

23

4535024B004HS
ref: 23

PAD ASSY,SEAT

€ 73.50

24

0212205168
ref: 24

SCREW

€ 2.00

25

1196782000
ref: 25
E2

LABEL,ASBESTOS WARNING

€ 2.00

all assemblies
