STARTER CLUTCH

LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

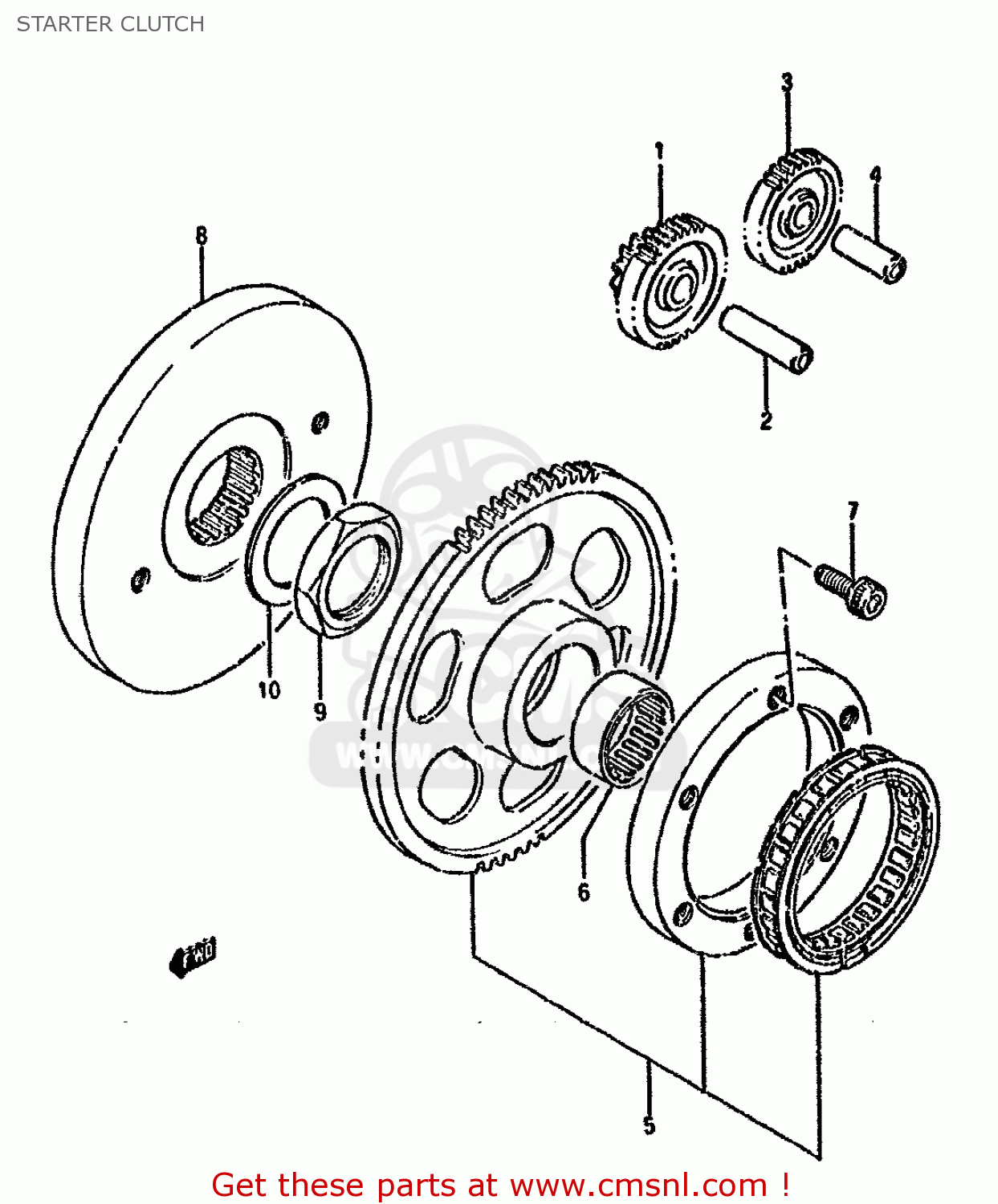

Starter clutch diagram LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

STARTER CLUTCH LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

STARTER CLUTCH LS650P 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

prices are in EUR

ref

part #

description

quantity

1-1

1261124B01
ref: 1-1
MODEL G/J/K/L/M

GEAR,STARTER IDLE

€ 79.50

1-2

1261124B02
ref: 1-2
MODEL R

GEAR,STARTER IDLE NO.1

€ 79.50

2

0920610003
ref: 2

PIN

€ 9.00

3-1

1261224B01
ref: 3-1
MODEL G/J/K/L/M

GEAR,STARTER IDLE

€ 44.50

3-2

1261224B02
ref: 3-2
MODEL R

GEAR,STARTER IDLE

€ 44.50

4

0920610005
ref: 4

PIN

€ 7.00

5

1260024830
ref: 5

CLUTCH SET,STARTER

€ 306.00

6

0926331009
ref: 6

BEARING(31X39X17.8)

€ 25.50

7

0910608043
ref: 7

BOLT

€ 3.00

8

1265624B02
ref: 8

FLYWHEEL

€ 92.00

9

1266424B01
ref: 9

NUT,FLYWHEEL

€ 9.50

10

0916435002
ref: 10

WASHER

€ 5.00
