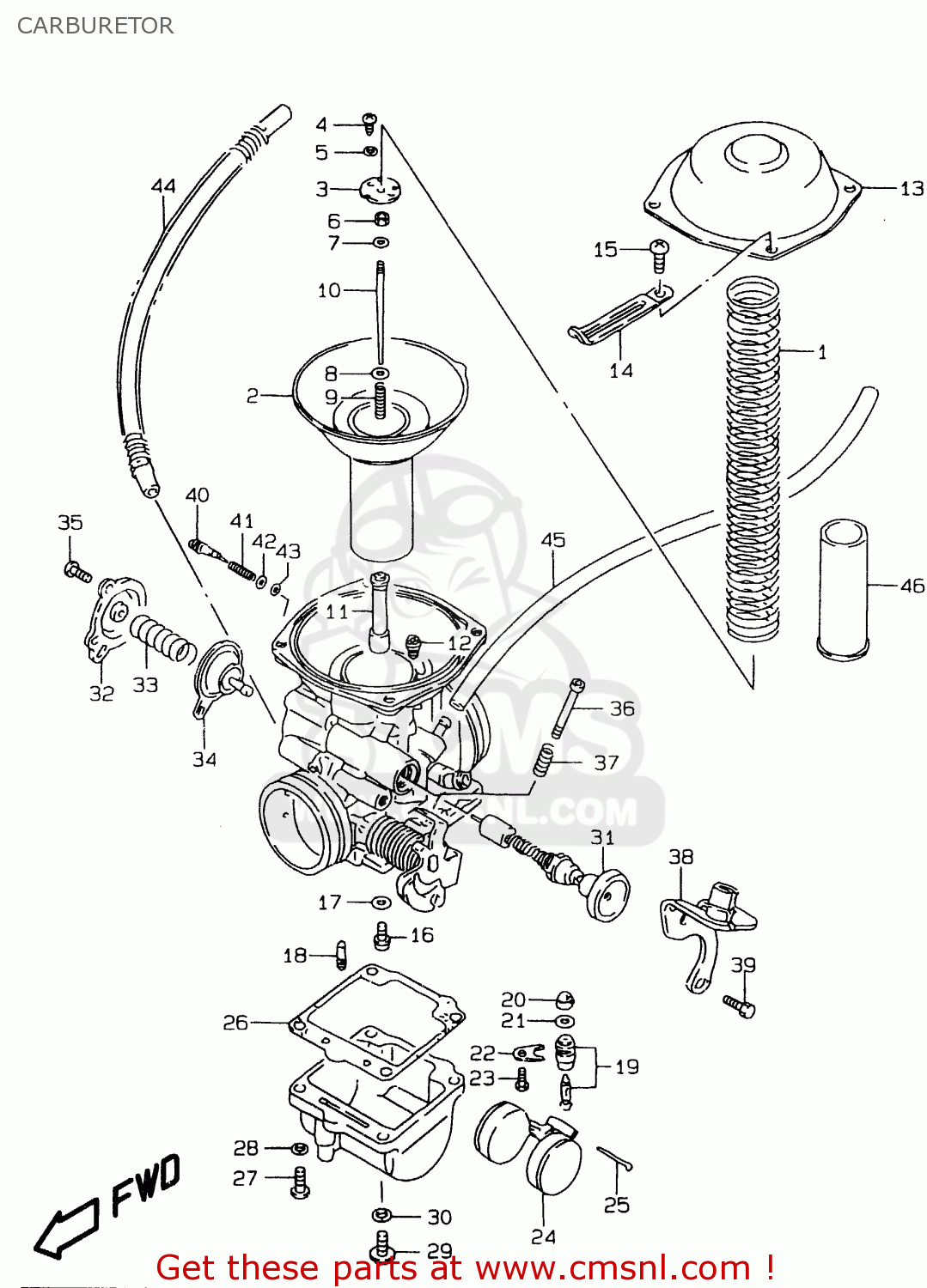

CARBURETOR

ref

part #

description

quantity

0

1320024C60
ref: 0

CARBURETOR ASS

€ 849.50

0

1320024C20
ref: 0
E18

CARBURETOR ASSY

€ 526.50

0

1320024C70
ref: 0
E17;E22

CARBURETOR ASSY

€ 553.50

0

1320024C80
ref: 0
P37

CARBURETOR ASSY

€ 0.00

1

1350324B00
ref: 1

SPRING

€ 11.00

2

1350024B40
ref: 2

DIAPHRAGM ASSY

€ 136.00

3

1338937400
ref: 3

PLATE

€ 5.50

4

0211203063
ref: 4

SCREW

€ 2.00

5

0832121033
ref: 5

WASHER,LOCK

€ 1.50

6

1338744030
ref: 6

RING

€ 5.00

7

1339431210
ref: 7

CLIP,NEEDLE

€ 3.50

8

1338244030
ref: 8

WASHER

€ 3.50

9

1338844030
ref: 9

SPRING

€ 6.00

10

1338324C60
ref: 10

NEEDLE,JET(5C40-2)

€ 16.00

10

1338324B40
ref: 10
E18

NEEDLE,JET

€ 14.00

11

0949400539
ref: 11

JET,NEEDLE(X-7)

€ 22.00

11

0949400587
ref: 11
E18

JET,NEEDLE (X-6)

€ 35.50

12

0949145002
ref: 12

JET(45)

€ 9.50

12

0949170012
ref: 12
E18

JET,PILOT AIR(70)

€ 7.50

13

1350237400
ref: 13

COVER

€ 18.00

14

0940406432
ref: 14

CLAMP(L:65)

€ 2.50

14

0940406433
ref: 14
E18

CLAMP(L:80)

€ 3.00

15

0211205107
ref: 15

SCREW

€ 2.00

16

0949125010
ref: 16

JET,MAIN(125)

€ 8.50

16

0949126011
ref: 16
E18

JET,MAIN(130)

€ 11.50

17

1338203110
ref: 17
<-13332-44080

WASHER

€ 2.50

18

0949247013
ref: 18

JET,PILOT(47.5)

€ 12.50

19

1337037400
ref: 19

VALVE ASSEMBLY,NEEDLE

€ 66.50

19

1337024C80
ref: 19
P37

VALVE ASSY,NEEDLE

€ 66.50

20

1337684110
ref: 20

FILTER

€ 6.50

21

1337444080
ref: 21

O-RING,NEEDLE VALVE

€ 6.00

22

1337339110
ref: 22

PLATE

€ 6.50

23

0211204063
ref: 23

SCREW 4X6

€ 2.00

24

1325037400
ref: 24

FLOAT

€ 26.00

25

1325492311
ref: 25

PIN,FLOAT

€ 2.00

26

1325138300
ref: 26

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

27

0211205163
ref: 27

SCREW

€ 2.00

28

0832101053
ref: 28

LOCK,WASHER

€ 3.00

29

1324744080
ref: 29

PLUG,DRAIN

€ 9.50

30

1324644080
ref: 30

GASKET (NAS)

€ 3.50

31

1341124C00
ref: 31

PLUNGER ASSY

€ 42.00

31

1341124B00
ref: 31
E18

PLUNGER ASSEMBLY

€ 42.00

32

1348438A10
ref: 32

COVER

€ 16.00

33

1348124B00
ref: 33

SPRING

€ 3.00

33

1348138B90
ref: 33
E18

SPRING

€ 4.00

34

1348024C00
ref: 34

DIAPHRAGM ASSY

€ 50.50

34

1348005A10
ref: 34
E18

DIAPHRAGM ASSY

€ 54.50

35

0211204107
ref: 35

SCREW

€ 2.00

36

1326725D00
ref: 36
<-13267-37100

ADJUSTER

€ 9.00

37

1327193011
ref: 37

SPRING

€ 4.50

38

1362124B01
ref: 38

BRACKET ASSY

€ 32.50

39

0211205103
ref: 39

SCREW

€ 2.00

40

1326924C00
ref: 40

SCREW, PILOT

€ 13.00

40

1326937400
ref: 40
E18

SCREW,AIR

€ 9.50

40

1326924C00
ref: 40
E17, E22

SCREW, PILOT

€ 13.00

41

1326847070
ref: 41

SPRING

€ 5.00

42

1329129900
ref: 42

WASHER

€ 2.00

43

1329529900
ref: 43

O RING,PILOT AIR SCREW

€ 4.00

44

1331824C00
ref: 44

HOSE ASSY

€ 18.50

44

1331824B00
ref: 44
E18

HOSE ASSEMBLY

€ 18.50

45

0935250823600
ref: 45
L:600->250

HOSE(5X8.2X600)

€ 13.00

46

1348524B70
ref: 46
E18

PIPE

€ 21.00

all assemblies
