Buy Suzuki LS Parts Online


OIL PUMP

LS650P 1996 (T) (E01)

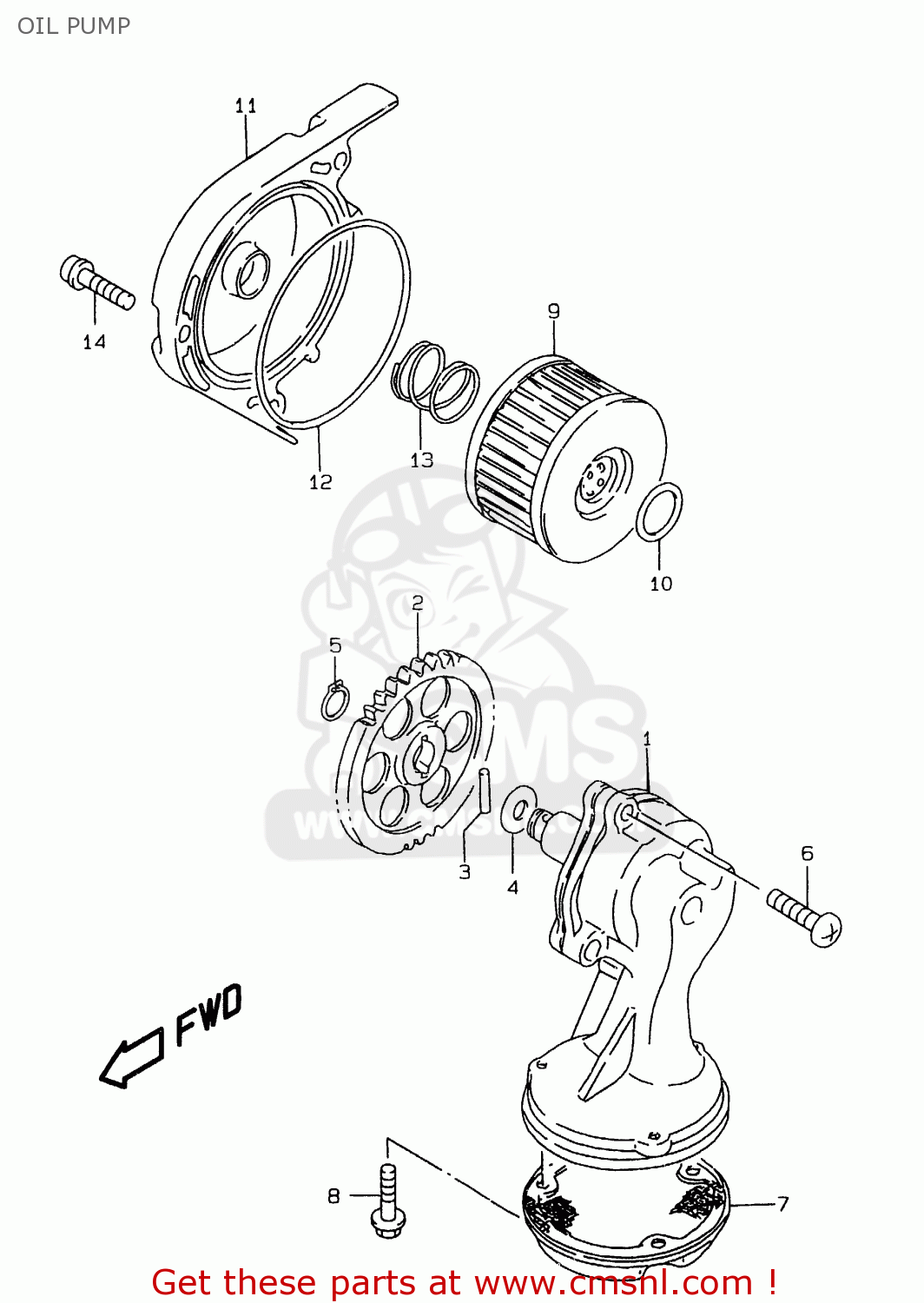

Oil pump diagram LS650P 1996 (T) (E01)

OIL PUMP LS650P 1996 (T) (E01)
OIL PUMP LS650P 1996 (T) (E01)
OIL PUMP LS650P 1996 (T) (E01)
prices are in EUR
ref
part #
description
quantity
1
1640024B00
ref: 1
PUMP ASSY,ENGINE OIL
1640024B00
€ 150.00
2
1633124B00
ref: 2
GEAR,ENG OIL PUMP DRIVEN
1633124B00
€ 43.00
3
0926104009
ref: 3
PIN(4X15.8)
0926104009
€ 1.50
4
0822110185
ref: 4
MODEL T
SHIM
0822110185
€ 2.00
4
0918110158
ref: 4
MODEL V/W/X
SHIM(10X18X0.5)
0918110158
€ 2.50
5
0833131106
ref: 5
CIRCLIP,10MM
0833131106
€ 2.00
6
0211206253
ref: 6
SCREW
0211206253
€ 1.50
7
1652024B00
ref: 7
STRAINER,ENGINE OIL
1652024B00
€ 10.00
8
0158005123
ref: 8
BOLT
€ 2.00
9
1651037440
ref: 9
MODEL T/V
FILTER,ENGINE OIL
1651037440
€ 7.50
9
1651037450
ref: 9
MODEL W/X
FILTER ASSY,ENGINE OIL
1651037450
€ 7.50
10
0928015007
ref: 10
O RING(D:2.4,ID:15.8)
0928015007
€ 2.00
11
1651224B00
ref: 11
CAP,OIL FILTER
1651224B00
€ 48.50
12
0928072001
ref: 12
O RING(D:2.4,ID:73)
0928072001
€ 5.00
13
0944021006
ref: 13
SPRING
0944021006
€ 2.50
14
0713006257
ref: 14
BOLT
0713006257
€ 2.50
