REAR SWINGING ARM
LS650P 1996 (T) (E01)

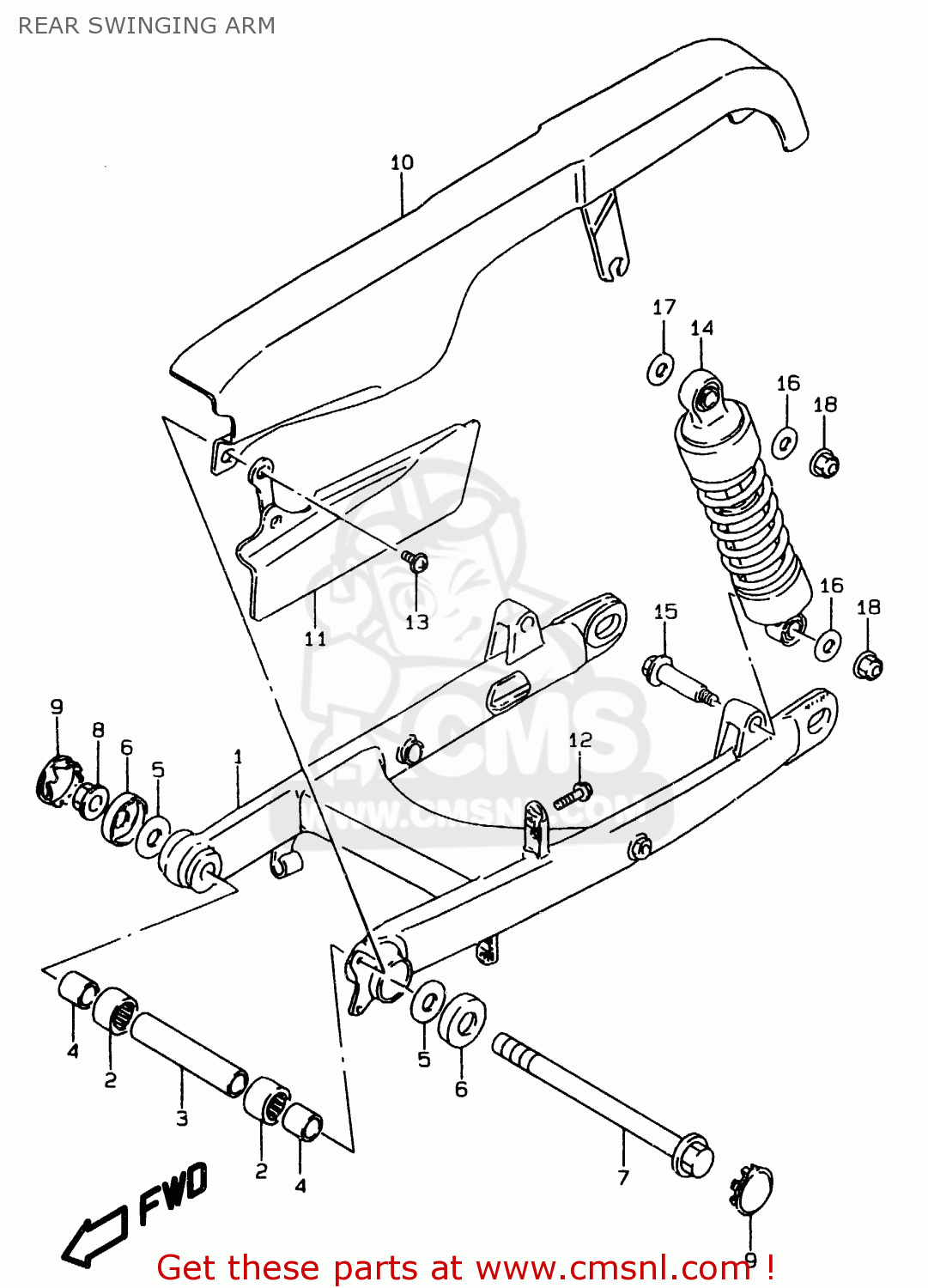

Rear swinging arm diagram LS650P 1996 (T) (E01)
REAR SWINGING ARM LS650P 1996 (T) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6110024B03019
ref: 1
SWINGINGARM,RR
€ 404.00
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
6128224B01
ref: 3
SPACER,RR SWGARM PIVOT CTR
€ 7.50
4
6125124B00
ref: 4
SPACER,RR SWGARM PIVOT
€ 9.00
5
0821114341
ref: 5
WASHER
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
7
6121124B00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 15.50
8
0831931148
ref: 8
NUT
€ 9.00
9
6122238A01
ref: 9
CAP,RR SWINGING ARM PIVOT,R
€ 6.50
10
6131024B02
ref: 10
BELT CASE,UPR
€ 155.50
11
6132024B02
ref: 11
BELT CASE,LWR
€ 29.50
12
0155006123
ref: 12
BOLT
€ 2.50
13
0211276123
ref: 13
SCREW
€ 2.00
14
6210024B00
ref: 14
ABSORBER ASSY,RR SHOCK
€ 214.00
15
6231324B00
ref: 15
BOLT,RR SHOCK ABSORBER LWR
€ 9.00
16
0916010035
ref: 16
WASHER(10.5X28X2.3)
€ 2.00
17
0916014009
ref: 17
WASHER(14.5X29X2.3)
€ 3.50
18
0831310107
ref: 18
NUT
€ 2.50
