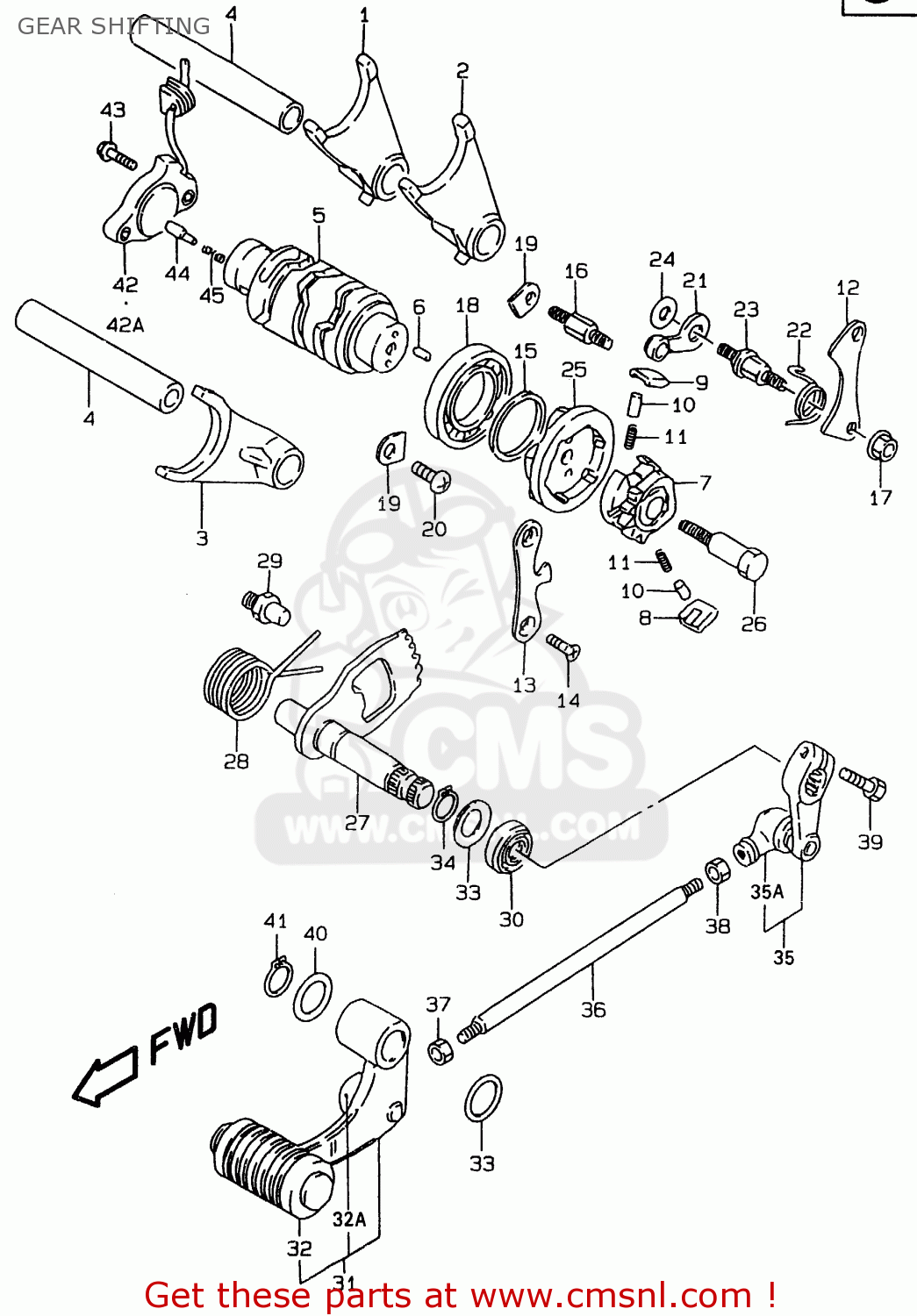

GEAR SHIFTING

ref

part #

description

quantity

1

2521124B10
ref: 1

FORK,GEAR SHIFT NO.1

€ 72.00

2

2522124B10
ref: 2

FORK,GEAR SHIFT NO.2

€ 63.50

3

2523124B10
ref: 3

FORK,GEAR SHIFT NO.3

€ 59.50

4

2541124B00
ref: 4

SHAFT,GEAR SHIFT FORK

€ 19.00

5

2531024B11
ref: 5

CAM,GEAR SHIFT

€ 114.50

6

0422104089
ref: 6

PIN

€ 1.50

7

2532231301
ref: 7
MODEL T

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

7

2532231310
ref: 7
MODEL V/W/X, <-25322

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

8

2532334201
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434201
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533138A00
ref: 12

LIFTER,GEAR SHIFT POLE

€ 4.50

13

2534138A00
ref: 13

GUIDE,GEAR SHIFT CAM

€ 6.00

14

0212206123
ref: 14

SCREW

€ 3.00

15

0916025059
ref: 15

WASHER(25X32X3)

€ 5.00

16

2533224B00
ref: 16

BOSS,SHIFT PAWL LIFTER

€ 7.50

17

0831610063
ref: 17

NUT

€ 2.50

18

0926225006
ref: 18

BEARING(25X47X8)

€ 24.00

19

2474121A00
ref: 19

RETAINER

€ 2.00

20

0211206123
ref: 20

SCREW

€ 1.50

21

2535024B00
ref: 21

STOPPER,GEAR SHIFT CAM

€ 8.00

22

0944817021
ref: 22

SPRING

€ 5.00

23

2535612C00
ref: 23

SUPPORT,CAM STOPPER ARM

€ 9.50

24

0821106141
ref: 24

WASHER

€ 2.50

25

2538038B00
ref: 25
<-25380-38A02

PLATE,GEAR SHIFT CAM

€ 15.00

26

2531238A00
ref: 26

PIN,SHIFT CAM DRIVEN GEAR

€ 4.00

27

2551024B01
ref: 27

SHAFT,GEAR SHIFT

€ 66.00

28

0944426013
ref: 28

SPRING

€ 3.50

29

2567101000
ref: 29

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0928512002
ref: 30

OIL SEAL

€ 7.00

31

2560024B03
ref: 31

LEVER ASSY,GEAR SHIFT

€ 34.50

32

2565220C00
ref: 32

RUBBER,GEAR SHIFT PEDAL

€ 8.00

32A

2552647000
ref: 32A

COVER,DUST

€ 3.50

33

0916012011
ref: 33

WASHER(12.5X20X1)

€ 1.50

34

0833131126
ref: 34

CIRCLIP,12 MM

€ 2.00

35

2552022A00
ref: 35

ARM,GEAR SHIFT LINK

€ 46.50

35A

2552647000
ref: 35A

COVER,DUST

€ 3.50

36

2552521E50
ref: 36

ROD,GEAR SHIFT LINK

€ 12.00

37

0914006011
ref: 37

NUT

€ 1.50

38

0831000063
ref: 38

NUT 6MM

€ 2.00

39

0150006203
ref: 39

BOLT

€ 2.00

40

0821212201
ref: 40

WASHER

€ 1.50

41

0833131126
ref: 41

CIRCLIP,12 MM

€ 2.00

42

3772024B20
ref: 42

BASE ASSY,GEAR SHIFT TERMINAL

€ 71.50

42A

3772024B30
ref: 42A
E18

BASE ASSY,NEUTRAL SW TERMINAL

€ 49.00

43

0211275163
ref: 43

SCREW

€ 2.50

44

0920905011
ref: 44

PIN(5X15.5)

€ 2.00

45

0944004010
ref: 45

SPRING

€ 1.50
