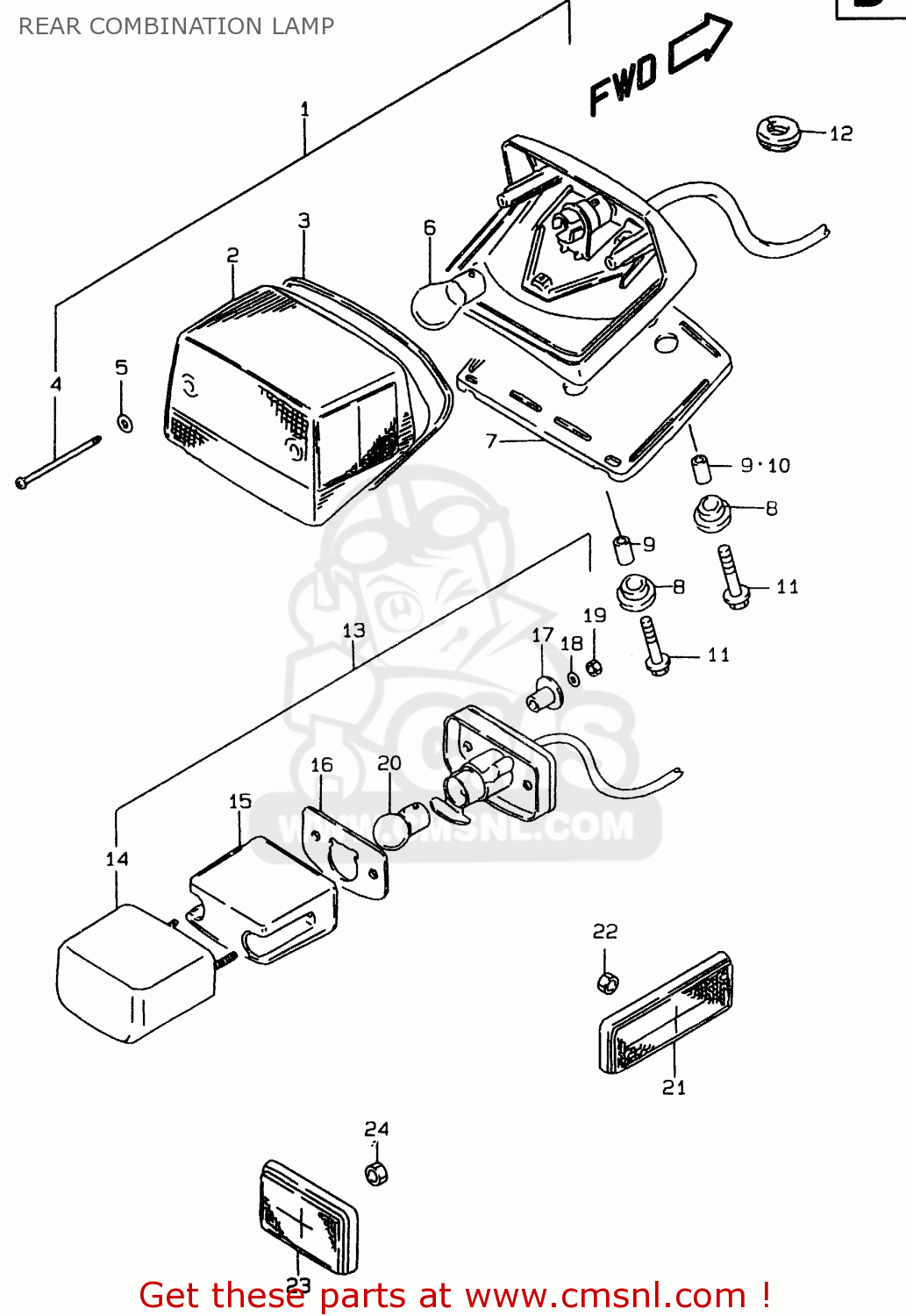

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571024B00
ref: 1

LAMP ASSY,RR COMBINATION

€ 512.00

2

3571224B21
ref: 2

LENS

€ 127.00

3

3571331D00
ref: 3
<-35713-38A00

GASKET (NAS)

€ 9.50

4

3572344130
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

3576524B00
ref: 7

CUSHION

€ 12.00

8

3576426470
ref: 8

CUSHION

€ 2.50

9

3576637190
ref: 9

SPACER

€ 2.00

10

3576640640
ref: 10

SPACER

€ 0.00

11

0911606093
ref: 11

BOLT(6X25)

€ 2.00

12

0930809013
ref: 12

GROMMET

€ 2.00

13

3591024B20
ref: 13

LAMP ASSY,LICENSE

€ 298.50

14

3591738A20
ref: 14

COVER,LICENSE LAMP

€ 121.50

15

3591238A20
ref: 15

LENS

€ 13.00

16

3591338A30
ref: 16

GASKET,LICENSE LAMP (NAS)

€ 2.00

17

3576624B30
ref: 17

SPACER

€ 2.00

18

0832101043
ref: 18

WASHER,LOCK

€ 2.00

19

0831000047
ref: 19

NUT

€ 2.00

20

0947112140
ref: 20

BULB(12V5W,BF150-40160A)

€ 4.00

21

3595043431
ref: 21
E18

REFLEX REFLECTOR,FR SIDE

€ 12.00

22

0831000053
ref: 22

NUT

€ 2.50

23

3597001A00
ref: 23

REFLEX REFLECTOR ASSY,RR

€ 85.00

24

0831000053
ref: 24

NUT

€ 2.50

all assemblies
