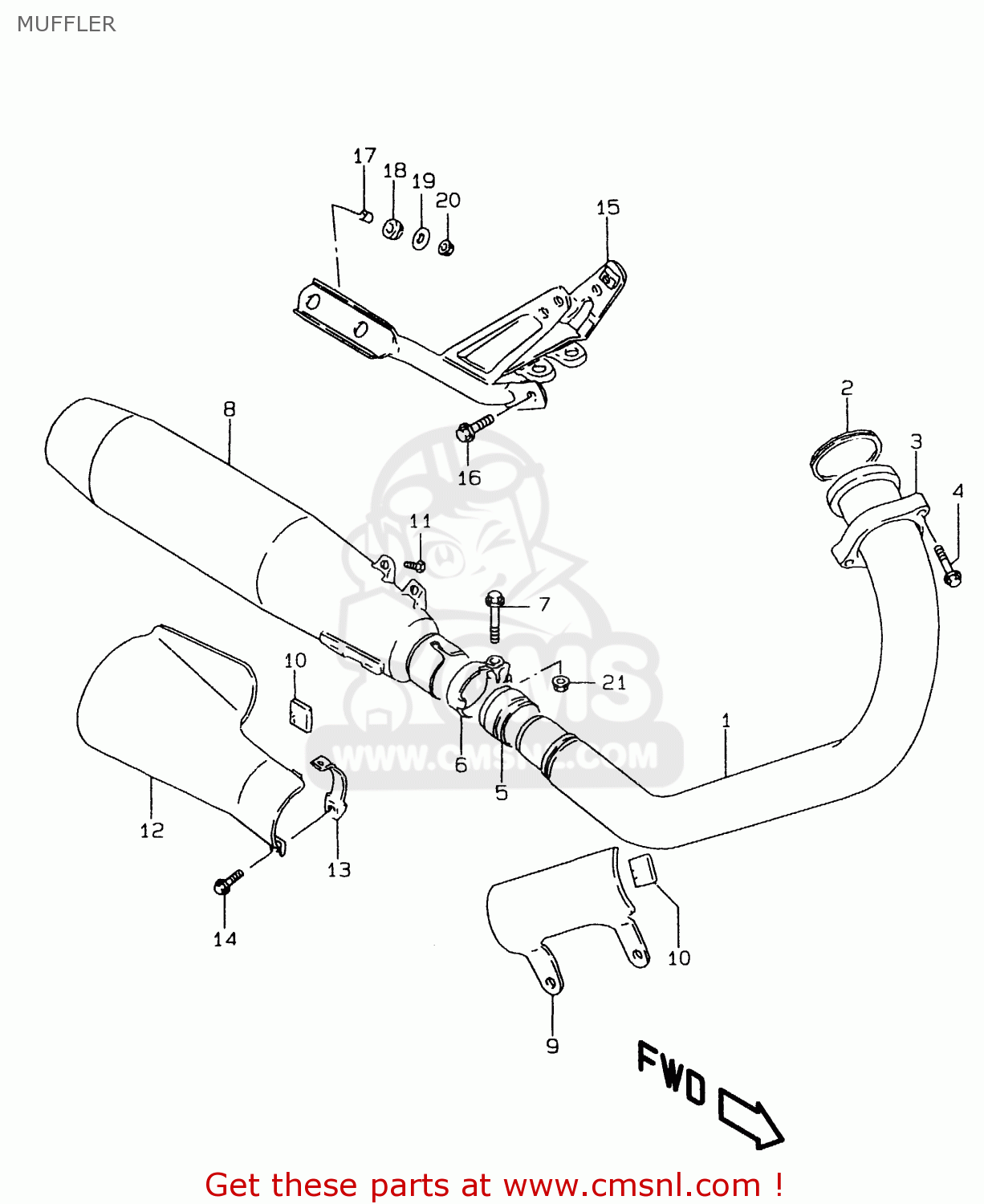

MUFFLER

ref

part #

description

quantity

1

1415024B01
ref: 1

PIPE,EXHAUST

€ 193.50

2

1418145C00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

1418238A02
ref: 3

CLAMP,EXHAUST PIPE

€ 21.00

4

0910408026
ref: 4

BOLT(8X35)

€ 4.00

5

1477124B01
ref: 5
MODEL T

CONNECTOR,MUFFLER

€ 23.00

5

1477146E00
ref: 5
MODEL V/W/X

CONNECTOR,MUFFLER

€ 13.50

6

1446905A00
ref: 6
~F.NO.NP41A-117360,

CLAMP,MUFFLER CONNECTOR LH

€ 16.00

6

1445914A10
ref: 6
F.NO.NP41A-117361~,

CLAMP,MUFFLER,R(L:42.7)

€ 10.50

7

0155008403
ref: 7

BOLT

€ 3.50

8

1431024B51
ref: 8

BODY,MUFFLER

€ 518.00

8

1431024B21
ref: 8
E18

BODY,MUFFLER

€ 458.50

9

1478024B01
ref: 9

COVER,EXHAUST PIPE

€ 42.50

10

1478924B12
ref: 10

GASKET (NAS)

€ 4.00

11

0211206107
ref: 11
MODEL T

SCREW

€ 1.50

11

0211206103
ref: 11
MODEL V/W/X

SCREW

€ 1.50

12

1479024B00
ref: 12

COVER,MUFFLER

€ 90.50

13

1478524B00
ref: 13

CLAMP,MUFFLER COVER

€ 4.50

14

0155006207
ref: 14
MODEL T

BOLT

€ 2.50

14

0155006203
ref: 14
MODEL V/W/X

BOLT

€ 2.50

15

1441024B00019
ref: 15

STAY,MUFFLER SUPPORT

€ 64.00

16

0910308102
ref: 16
MODEL T

BOLT

€ 4.00

16

0910308505
ref: 16
MODEL V/W/X

BOLT(8X20)

€ 4.00

17

0918008001
ref: 17
MODEL T

SPACER (8.8X12X11)

€ 2.00

17

0918008189
ref: 17
MODEL V/W/X

SPACER(8.5X12X11)

€ 2.00

18

0932012041
ref: 18

CUSHION

€ 4.50

19

0916008004
ref: 19
MODEL T/V

WASHER

€ 2.50

19

0916008134
ref: 19
MODEL W/X

WASHER(8.5X26X1.6)

€ 2.50

20

0831620083
ref: 20

NUT

€ 1.50

21

0831620083
ref: 21
~F.NO.NP41A-117360,

NUT

€ 1.50

all assemblies
