CRANKCASE COVER
LS650P 1996 (T) (E01)

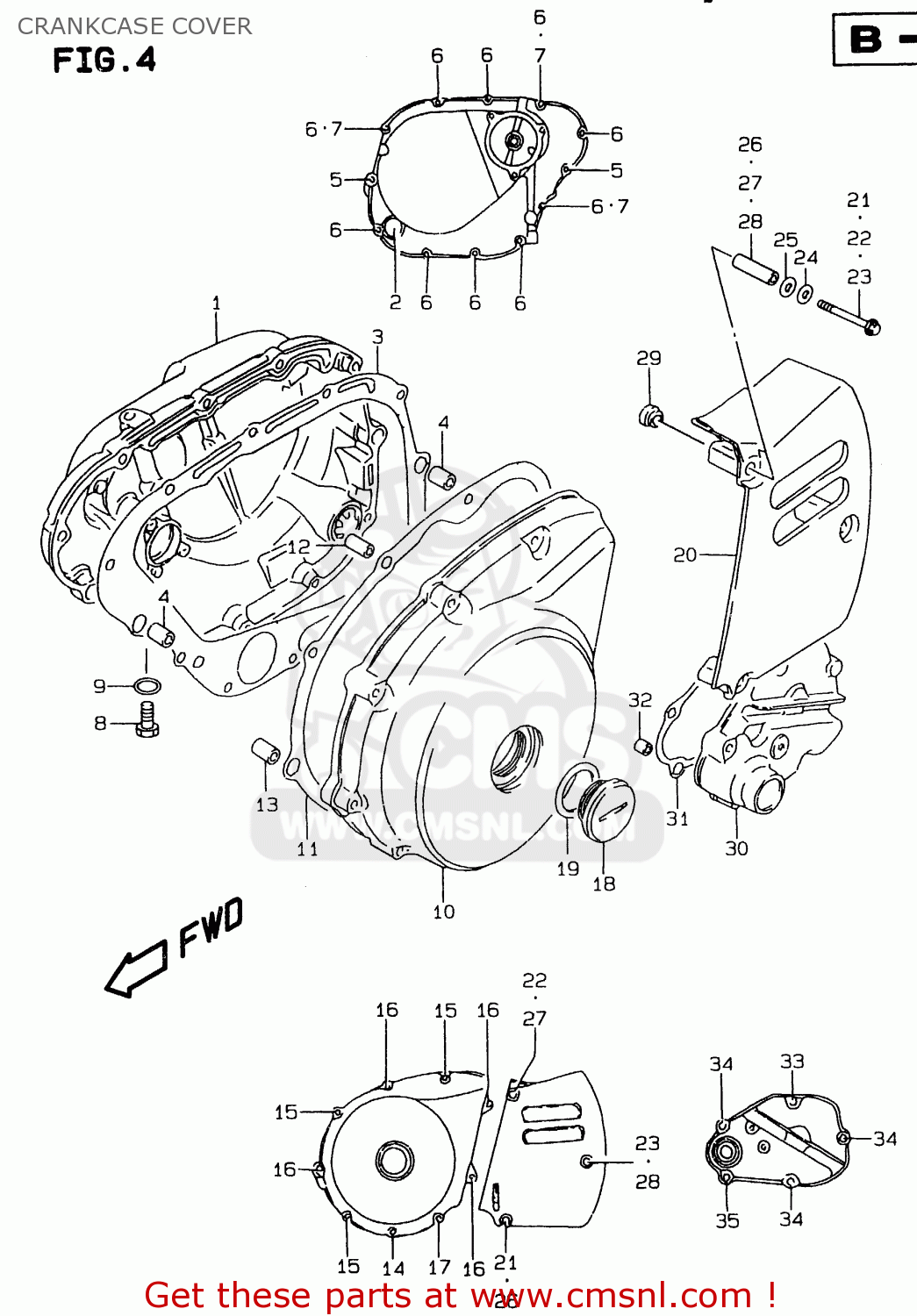

Crankcase cover diagram LS650P 1996 (T) (E01)
CRANKCASE COVER LS650P 1996 (T) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1134024B00
ref: 1
COVER,CLUTCH
€ 230.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148224B11
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 26.00
4
0421111169
ref: 4
PIN
€ 2.00
5
0154706357
ref: 5
BOLT
€ 2.50
6
0154706257
ref: 6
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8
0924712104
ref: 8
PLUG,12X9
€ 2.50
9
0916812002
ref: 9
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
10
1135124B10
ref: 10
COVER,GENERATOR
€ 121.00
11
1148324B01H17
ref: 11
GASKET,GENERATOR COVER (NAS)
€ 15.50
12
0421109189
ref: 12
PIN
€ 2.00
13
0421111189
ref: 13
PIN
€ 2.00
14
0154706257
ref: 14
BOLT
€ 2.50
15
0154706357
ref: 15
BOLT
€ 2.50
16
0154706457
ref: 16
BOLT
€ 2.50
17
0154706507
ref: 17
BOLT
€ 2.50
18
0925936011
ref: 18
PLUG,36X10
€ 8.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
€ 2.50
20
1136124B10
ref: 20
COVER,ENGINE SPROCKET
€ 75.00
21
0154706457
ref: 21
BOLT
€ 2.50
22
0154706507
ref: 22
BOLT
€ 2.50
23
0154706557
ref: 23
BOLT
€ 2.50
24
0916006097
ref: 24
MODEL T/V
WASHER
€ 2.00
24
0916006125
ref: 24
MODEL W/X
WASHER(6.5X14X1.6)
€ 2.00
25
0916109006
ref: 25
WASHER(8.7X15X2.1)
€ 2.50
26
0918006170
ref: 26
MODEL T
SPACER (6.1X9X31.5)
€ 4.00
26
0918006277
ref: 26
MODEL V/W/X
SPACER(6.5X9X31.5)
€ 4.00
27
0918006171
ref: 27
MODEL T
SPACER (6.1X9X38.3)
€ 4.50
27
0918006279
ref: 27
MODEL V/W/X
SPACER(6.5X9X38.3)
€ 4.50
28
0918006172
ref: 28
MODEL T
SPACER (6.1X9X41.3)
€ 4.00
28
0918006280
ref: 28
MODEL V/W/X
SPACER(6.5X9X41.3)
€ 4.00
29
0916109005
ref: 29
WASHER(8.7X16X5)
€ 2.50
30
1137124B01
ref: 30
COVER,GEAR SHIFT
€ 43.00
31
1148524B10
ref: 31
GASKET,GEAR SHIFT COVER (NAS)
€ 5.50
32
0421109109
ref: 32
PIN
€ 2.00
33
0154706163
ref: 33
BOLT
€ 2.50
34
0154706303
ref: 34
BOLT,G/S SWITC
€ 3.00
35
0154706353
ref: 35
BOLT
€ 3.00
