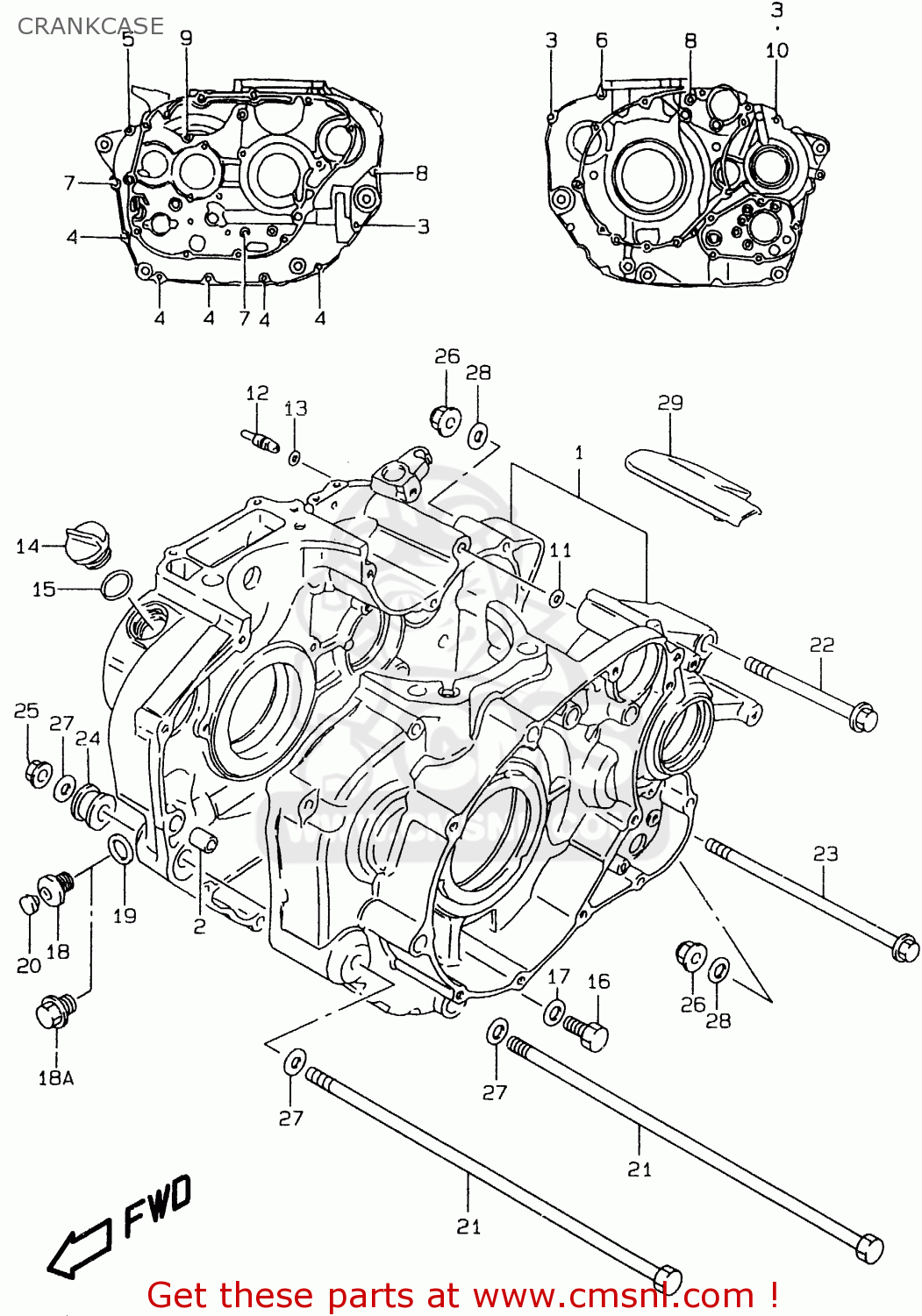

CRANKCASE

ref

part #

description

quantity

1

1130124812
ref: 1

CRANKCASE SET

€ 1,352.00

2

0920611017
ref: 2

PIN(8.4X11X20)

€ 6.50

3

0154706407
ref: 3

BOLT

€ 2.50

4

0154706457
ref: 4

BOLT

€ 2.50

5

0154706557
ref: 5

BOLT

€ 2.50

6

0154706607
ref: 6

BOLT

€ 2.50

7

0154706657
ref: 7

BOLT

€ 2.00

8

0154706707
ref: 8

BOLT

€ 2.50

9

0154706753
ref: 9

BOLT

€ 2.00

10

0916806024
ref: 10

GASKET(5.8X11X1.2) (NAS)

€ 2.00

11

0928010013
ref: 11

O RING(D:2.4,ID:9.6)

€ 5.50

12

0949336004
ref: 12

JET,OIL GALLERY(18)

€ 8.00

13

0928004004
ref: 13

O RING(D:1.2,ID:4)

€ 2.00

14

0925920007
ref: 14

PLUG(20X10)

€ 6.50

15

0928017003
ref: 15

O RING(D:3.1,ID:16.8)

€ 2.00

16

0150012203
ref: 16
MODEL T/V/W

BOLT

€ 3.00

16

0924712106
ref: 16
MODEL X

PLUG,12X20

€ 2.50

17

0916812002
ref: 17

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

18

0924814005
ref: 18
~F.NO.NP41A-116898,

PLUG,14X12

€ 5.00

18A

0924714026
ref: 18A
F.NO.NP41A-116899~,

PLUG(14X12)

€ 3.50

19

0916814002
ref: 19

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

20

0925008014
ref: 20
~F.NO.NP41A-116898,

CAP(OD:12)

€ 3.50

21

0910410034
ref: 21

BOLT(10X323)

€ 16.50

22

0910310087
ref: 22

BOLT(10X105)

€ 6.50

23

0910310053
ref: 23

BOLT(10X180)

€ 7.50

24

1161038400
ref: 24

SPACER,ENGINE MOUNT(L20)

€ 9.00

25

0915910064
ref: 25

NUT

€ 8.50

26

0915910047
ref: 26

NUT

€ 7.50

27

0832201107
ref: 27

WASHER

€ 2.50

28

0832201103
ref: 28

WASHER

€ 2.50

29

1138424B01
ref: 29

COVER,CRANKCASE START MOT

€ 18.00
