HANDLE SWITCH

LS650P 1996 (T) (E01)

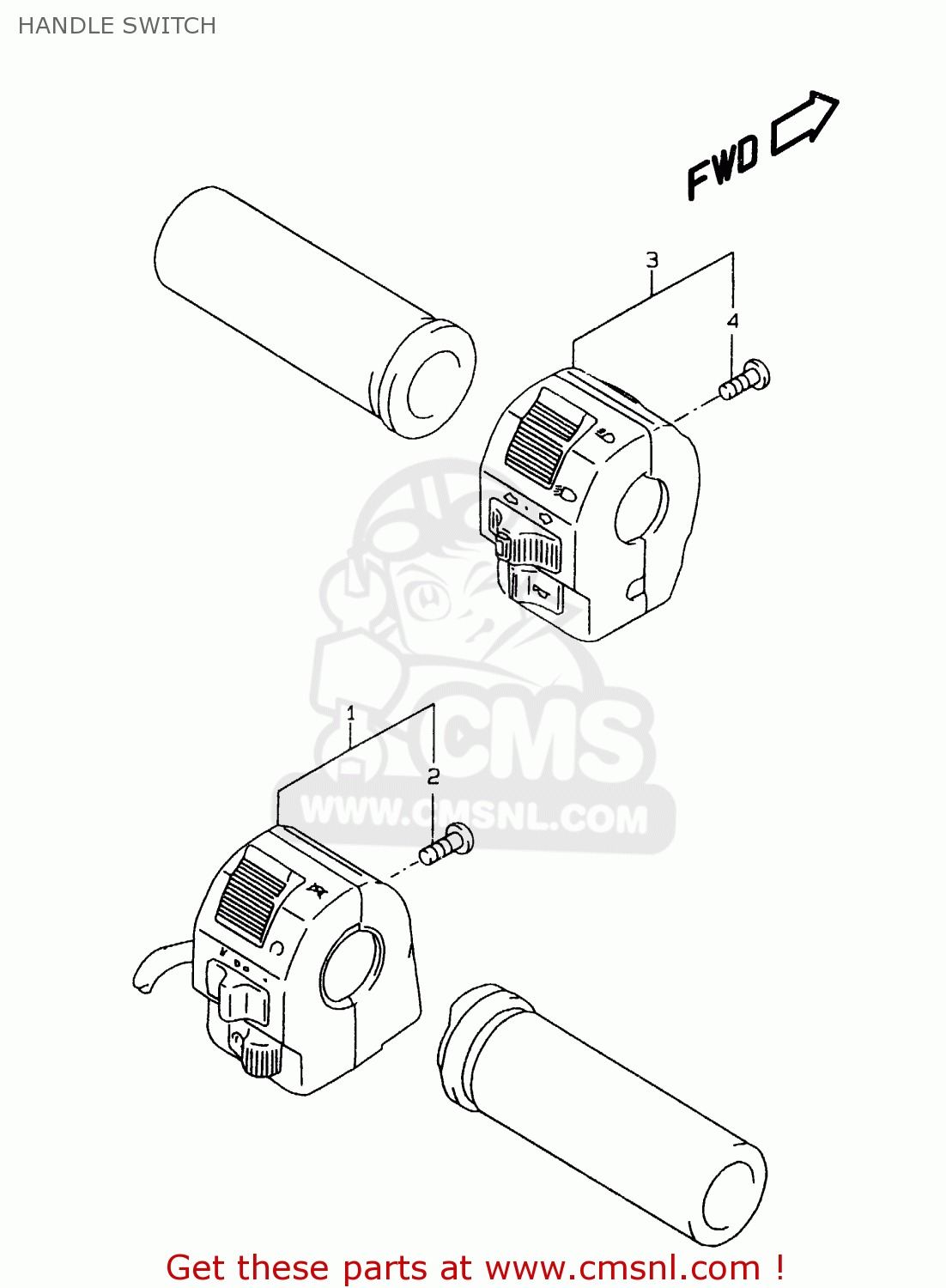

Handle switch diagram LS650P 1996 (T) (E01)

HANDLE SWITCH LS650P 1996 (T) (E01)

HANDLE SWITCH LS650P 1996 (T) (E01)

prices are in EUR

ref

part #

description

quantity

1

3720024BA0
ref: 1

SWITCH ASSY,HANDLE,R

€ 205.50

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740024BA0
ref: 3

SWITCH ASSY,HANDLE,L

€ 238.50

4

0211205167
ref: 4

SCREW

€ 2.50
