SEAT
LS650P 1996 (T) (E01)

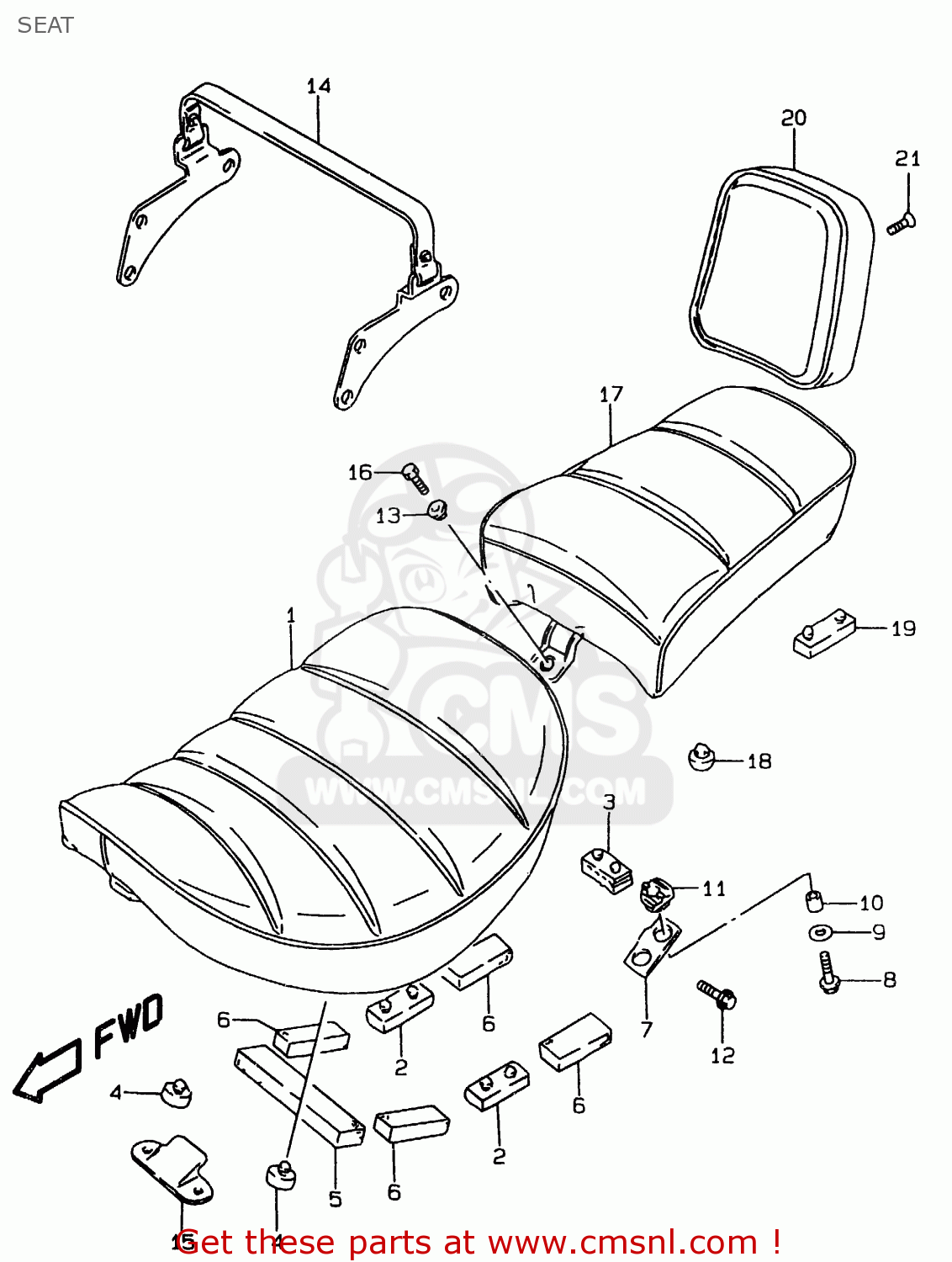

Seat diagram LS650P 1996 (T) (E01)
SEAT LS650P 1996 (T) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4510024B204HS
ref: 1
SEAT SET
€ 191.50
2
4514943500
ref: 2
CUSHION,SEAT
€ 3.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
0932110002
ref: 4
CUSHION(11.5X22X20)
€ 2.00
5
4511624B00
ref: 5
CUSHION,CTR FR
€ 5.00
6
4611724B00
ref: 6
CUSHION,CTR SIDE
€ 6.00
7
4511424B00
ref: 7
BRACKET,SEAT RR
€ 6.00
8
0155006256
ref: 8
BOLT
€ 1.50
9
0916006066
ref: 9
WASHER(6.5X20X1.6)
€ 2.00
10
4516924B00
ref: 10
COLLAR,SEAT(TS-5A1-02273)
€ 2.50
11
4511824B00
ref: 11
CUSHION,SEAT RR BRACKET
€ 2.50
12
0158006163
ref: 12
MODEL T/V
BOLT
€ 2.50
12
0155006123
ref: 12
MODEL W/X
BOLT
€ 2.50
13
0916906037
ref: 13
MODEL T
WASHER
€ 6.50
14
4518024B004HS
ref: 14
E4, E17, E22, E53, P
BAND,SEAT
€ 37.50
15
4511924B00
ref: 15
PLATE,SEAT HOOK FR
€ 2.00
16
0157006163
ref: 16
MODEL T
BOLT
€ 2.50
16
0155006123
ref: 16
MODEL V/W/X
BOLT
€ 2.50
17
4530024B004HS
ref: 17
SEAT SET,PILLION
€ 187.00
18
4514924B00
ref: 18
CUSHION,SEAT
€ 0.00
19
4514943500
ref: 19
CUSHION,SEAT
€ 3.00
20
4535024B004HS
ref: 20
PAD ASSY,SEAT
€ 73.50
21
0212205163
ref: 21
SCREW,SUNVISOR
€ 2.00
