STARTER CLUTCH
LS650P 1996 (T) (E01)

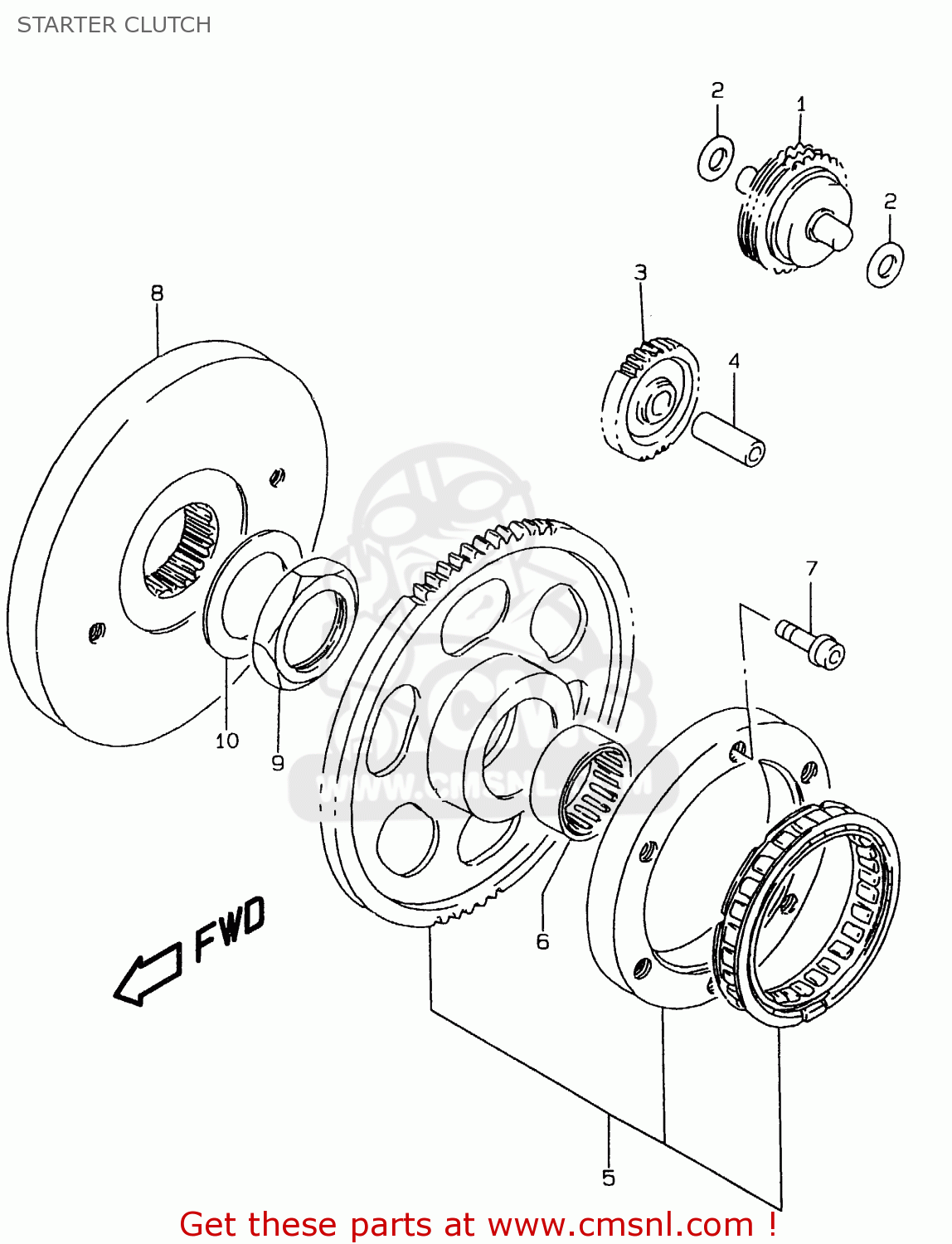

Starter clutch diagram LS650P 1996 (T) (E01)
STARTER CLUTCH LS650P 1996 (T) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1260024B00
ref: 1
MODEL T/V
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 223.00
1
1260024B10
ref: 1
MODEL W/X
LIMITER ASSEMBLY,STARTER IDLER GEAR N
€ 185.50
2
0821110181
ref: 2
MODEL T
WASHER,THRUST
€ 3.00
2
0918110167
ref: 2
MODEL V/W/X
SHIM(10X18X1)
€ 3.00
3
1261224B03
ref: 3
NT:34
GEAR,STARTER IDLE NO.2
€ 44.50
4
0920210011
ref: 4
PIN(10X30)
€ 7.00
5
1260024831
ref: 5
CLUTCH SET,STARTER
€ 306.00
6
0926331009
ref: 6
BEARING(31X39X17.8)
€ 25.50
7
0713008163
ref: 7
BOLT
€ 3.00
8
1265624B02
ref: 8
FLYWHEEL
€ 92.00
9
1266424B01
ref: 9
NUT,FLYWHEEL
€ 9.50
10
0916435002
ref: 10
WASHER
€ 5.00
