TURN SIGNAL LAMP
LS650P 1996 (T) (E01)

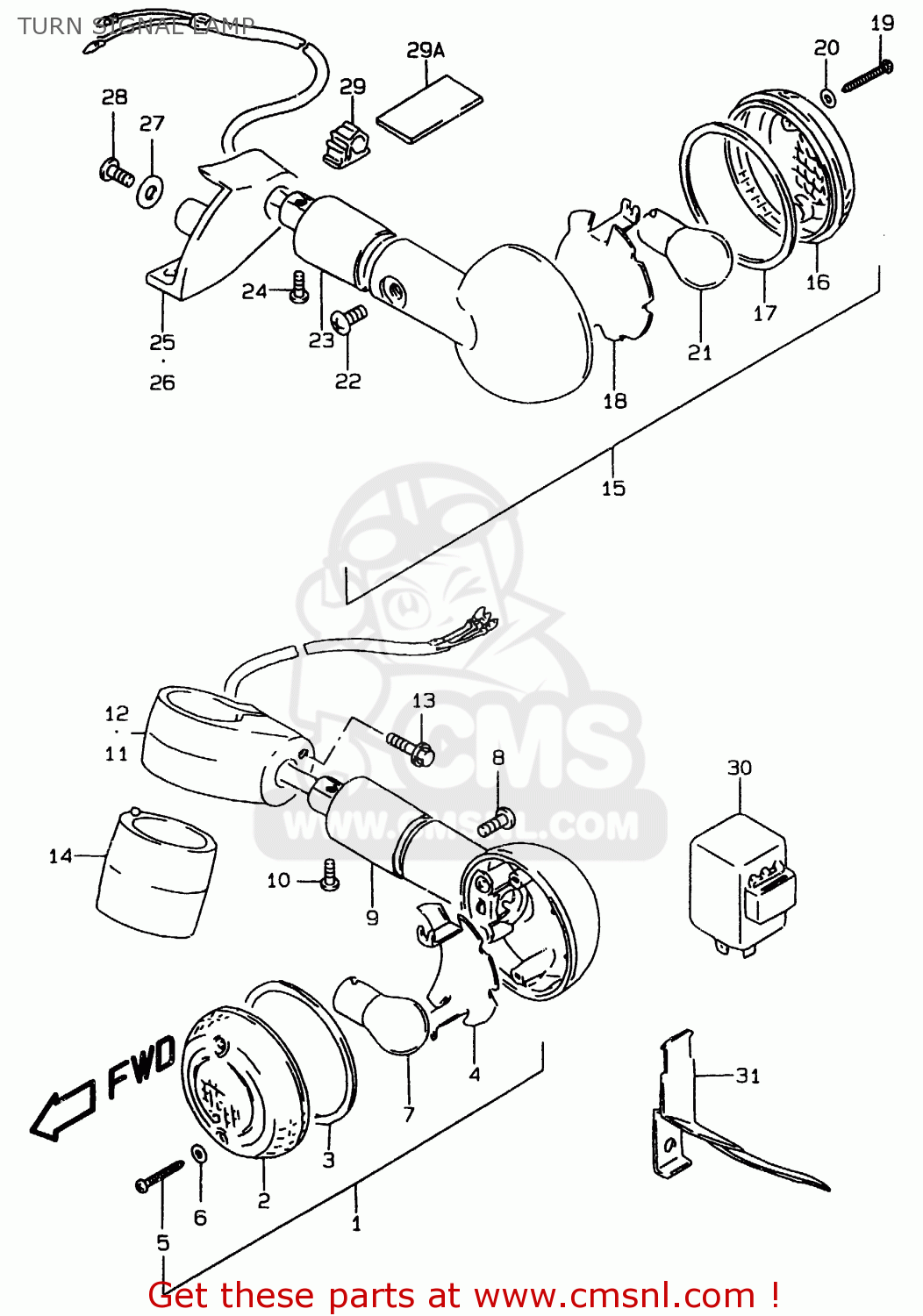

Turn signal lamp diagram LS650P 1996 (T) (E01)
TURN SIGNAL LAMP LS650P 1996 (T) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3560138A22
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 93.50
2
3561238A01
ref: 2
LENS
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
€ 11.50
4
3562438A20
ref: 4
REFLECTOR
€ 71.00
5
0321104253
ref: 5
SCREW
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
3562338A01
ref: 8
SCREW
€ 5.50
9
3561938A01
ref: 9
STAY,TURNSIGNAL LAMP
€ 35.50
10
0214206107
ref: 10
SCREW
€ 2.00
11
3567124B00
ref: 11
BRACKET,FR TURNSIGNAL LAMP,R
€ 45.50
12
3568124B00
ref: 12
BRACKET,FR TURNSIGNAL LAMP,L
€ 45.50
13
0154705257
ref: 13
BOLT
€ 2.00
14
3569524B20
ref: 14
E17, E18, E22
SPACER,FR TURNSIGNAL LAMP BRKT
€ 23.00
15
3560338A22
ref: 15
LAMP ASSY,RR TURNSIGNAL,R
€ 98.00
16
3565238A21
ref: 16
LENS
€ 16.50
17
3561338A00
ref: 17
GASKET (NAS)
€ 11.50
18
3565438A20
ref: 18
REFLECTOR
€ 83.50
19
0321104253
ref: 19
SCREW
€ 2.00
20
3562743010
ref: 20
GASKET (NAS)
€ 2.00
21
0947112045
ref: 21
BULB(12V21W)
€ 5.00
22
3562338A01
ref: 22
SCREW
€ 5.50
23
3561938A01
ref: 23
STAY,TURNSIGNAL LAMP
€ 35.50
24
0214206167
ref: 24
SCREW
€ 2.00
25
3562124B21
ref: 25
E17, E18, E22
BRACKET,RR TURNSIGNAL,R
€ 31.50
26
3564124B21
ref: 26
E17, E18, E22
BRACKET,RR TURNSIGNAL,L
€ 38.50
27
0916006066
ref: 27
E17, E18, E22
WASHER(6.5X20X1.6)
€ 2.00
28
0214206127
ref: 28
E17, E18, E22
SCREW 6X12
€ 1.50
29
0940307315
ref: 29
CLAMP
€ 3.50
29A
3692010B00
ref: 29A
TAPE
€ 3.00
30
3861045D01
ref: 30
MODEL T/V
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
30
3861026E00
ref: 30
MODEL W/X
RELAY ASSY
€ 47.00
31
3862124B10
ref: 31
BRACKET,TURNSIGNAL RELAY
€ 0.00
