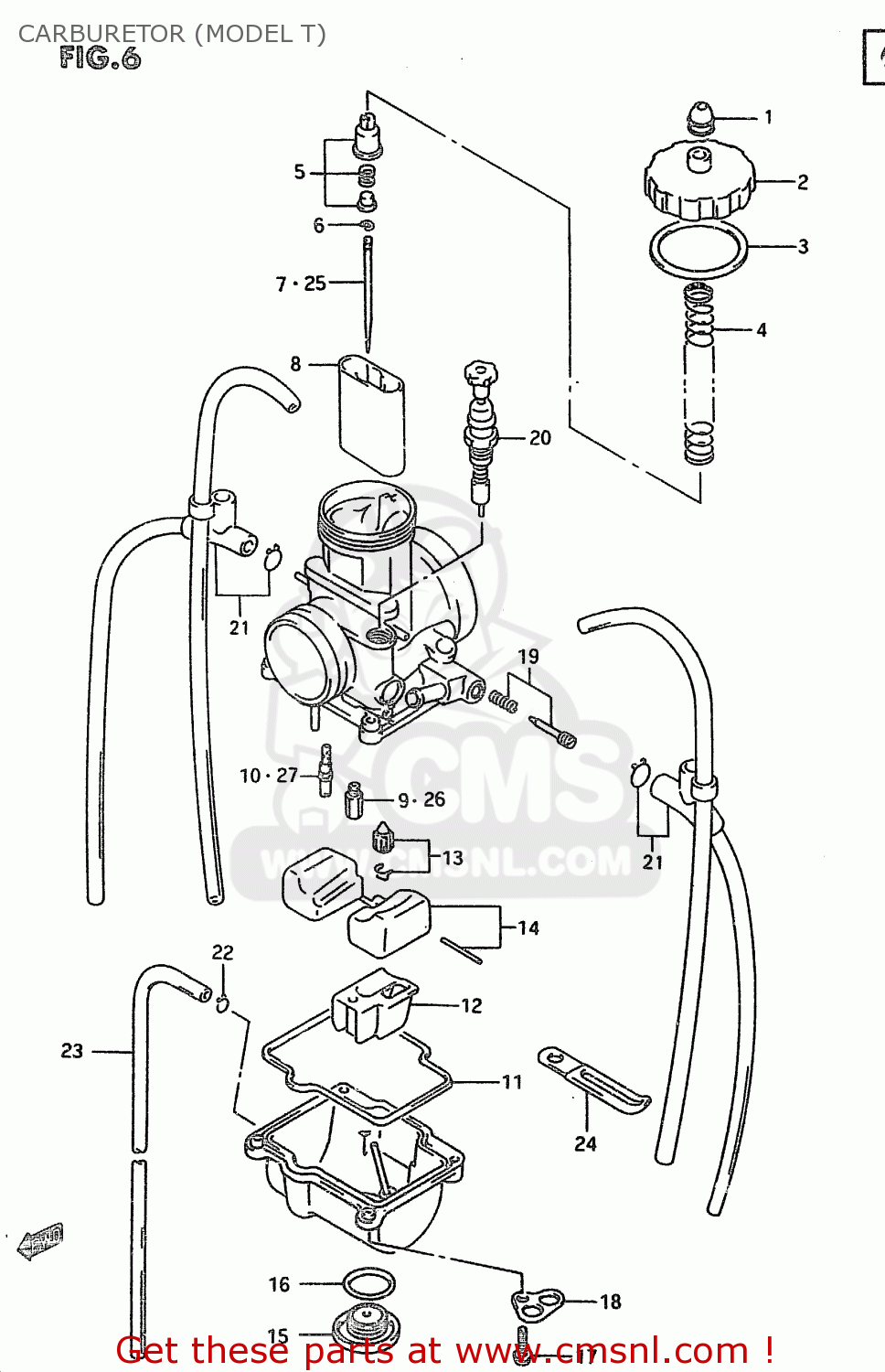

CARBURETOR (MODEL T)

ref

part #

description

quantity

0

1320037E00
ref: 0

CARBURETOR ASSY

€ 583.00

1

1368128E00
ref: 1

CAP,CARBURETOR

€ 7.00

2

1326128E00
ref: 2

CAP,TOP

€ 43.50

3

1326628E00
ref: 3

GASKET,TOP CAP

€ 7.50

4

1357328E00
ref: 4

SPRING

€ 9.00

5

1358128E00
ref: 5

HOLDER SET,CABLE

€ 17.00

6

1339428E00
ref: 6

CLIP,NEEDLE

€ 3.50

7

1338343D50
ref: 7

NEEDLE(R1467NS)

€ 12.00

8

1355129E10
ref: 8

VALVE,PISTON(CA:5.0)

€ 100.50

9

0949134011
ref: 9

JET,MAIN(172)

€ 12.50

10

0949258001
ref: 10

JET,PILOT(58)

€ 9.50

11

1369628E00
ref: 11

GASKET,FLOAT CHAMBER

€ 11.00

12

1333128E00
ref: 12

HOLDER

€ 8.50

13

1337028E00
ref: 13

VALVE SET,FLOAT

€ 36.50

14

1324028E00
ref: 14

FLOAT SET

€ 49.00

15

1324728E00
ref: 15

BOLT,DRAIN

€ 15.00

16

1324628E00
ref: 16

O RING

€ 3.50

17

0211234163
ref: 17

SCREW

€ 3.00

18

1369336E00
ref: 18

PLATE

€ 4.50

19

1328028E00
ref: 19

SCREW SET,AIR

€ 15.00

20

1341028E00
ref: 20

PLUNGER ASSY

€ 65.50

21

1368037E00
ref: 21

HOSE SET

€ 41.50

22

0940106101
ref: 22

CLIP

€ 2.50

23

0935135653600
ref: 23
L:600->330

HOSE(3.5X6.5X600)

€ 5.50

24

0940406429
ref: 24

CLAMP(L:45)

€ 2.50

25-1

1338337E00
ref: 25-1
OPT

NEEDLE,JET(R1466MS)

€ 11.50

25-2

1338337E10
ref: 25-2
OPT

NEEDLE,JET(R1466NS)

€ 9.50

25-3

1338343D60
ref: 25-3
OPT

NEEDLE(R1467MS)

€ 11.50

25-4

1338343D50
ref: 25-4
OPT

NEEDLE(R1467NS)

€ 12.00

25-5

1338343D40
ref: 25-5
OPT

NEEDLE(R1468MS)

€ 10.00

25-6

1338343D30
ref: 25-6
OPT

NEEDLE (R1468NS)

€ 13.00

25-7

1338328E00
ref: 25-7
OPT

NEEDLE(R1469MS)

€ 14.50

25-8

1338328E10
ref: 25-8
OPT

NEEDLE(R1469NS)

€ 11.00

25-9

1338328E20
ref: 25-9
OPT

NEEDLE(R1470MS)

€ 11.00

25-10

1338328E30
ref: 25-10
OPT

NEEDLE(R1470NS)

€ 11.00

25-11

1338328E40
ref: 25-11
OPT

NEEDLE(R1471MS)

€ 11.00

25-12

1338328E50
ref: 25-12
OPT

NEEDLE(R1471NS)

€ 11.00

25-13

1338328E60
ref: 25-13
OPT

NEEDLE (R1472MS)

€ 11.50

25-14

1338328E70
ref: 25-14
OPT

NEEDLE (R1472NS)

€ 13.00

25-15

1338328E80
ref: 25-15
OPT

NEEDLE(R1473MS)

€ 13.00

25-16

1338328E90
ref: 25-16
OPT

NEEDLE(R1473NS)

€ 10.00

26-1

0949132010
ref: 26-1
OPT

JET,MAIN(160)

€ 13.00

26-2

0949132011
ref: 26-2
OPT

JET,MAIN(162)

€ 13.00

26-3

0949133009
ref: 26-3
OPT

JET,MAIN(165)

€ 9.00

26-4

0949133010
ref: 26-4
OPT

JET,MAIN(168)

€ 12.50

26-5

0949134010
ref: 26-5
OPT

JET,MAIN(170)

€ 12.50

26-6

0949134011
ref: 26-6
OPT

JET,MAIN(172)

€ 12.50

26-7

0949135009
ref: 26-7
OPT

JET,MAIN(175)

€ 15.50

26-8

0949135010
ref: 26-8
OPT

JET,MAIN(178)

€ 15.50

26-9

0949136008
ref: 26-9
OPT

JET,MAIN(180)

€ 15.50

26-10

0949137008
ref: 26-10
OPT

JET,MAIN(185)

€ 15.50

26-11

0949138011
ref: 26-11
OPT

JET,MAIN(190)

€ 15.50

26-12

0949139001
ref: 26-12
OPT

JET,MAIN(195)

€ 12.50

26-13

0949140013
ref: 26-13
OPT

JET,MAIN(200)

€ 12.50

26-14

0949141001
ref: 26-14
OPT

JET,MAIN(205)

€ 8.50

26-15

0949142006
ref: 26-15
OPT

JET,MAIN(210)

€ 8.50

26-16

0949143001
ref: 26-16
OPT

JET,MAIN(215)

€ 9.00

26-17

0949144006
ref: 26-17
OPT

JET,MAIN (220)

€ 10.00

26-18

0949145003
ref: 26-18
OPT

JET,MAIN(225)

€ 9.00

26-19

0949146004
ref: 26-19
OPT

JET,MAIN(230)

€ 9.00

27-1

0949235019
ref: 27-1
OPT

JET,SLOW(35)

€ 13.00

27-2

0949240022
ref: 27-2
OPT

JET,SLOW(40)

€ 15.50

27-3

0949245032
ref: 27-3
OPT

JET,PILOT(45)

€ 9.00

27-4

0949250023
ref: 27-4
OPT

JET,SLOW(50)

€ 11.50

27-5

0949252011
ref: 27-5
OPT

JET,SLOW(52)

€ 11.50

27-6

0949255017
ref: 27-6
OPT

JET,SLOW(55)

€ 11.50

27-7

0949258001
ref: 27-7
OPT

JET,PILOT(58)

€ 9.50

27-8

0949260016
ref: 27-8
OPT

JET,SLOW(60)

€ 12.50
