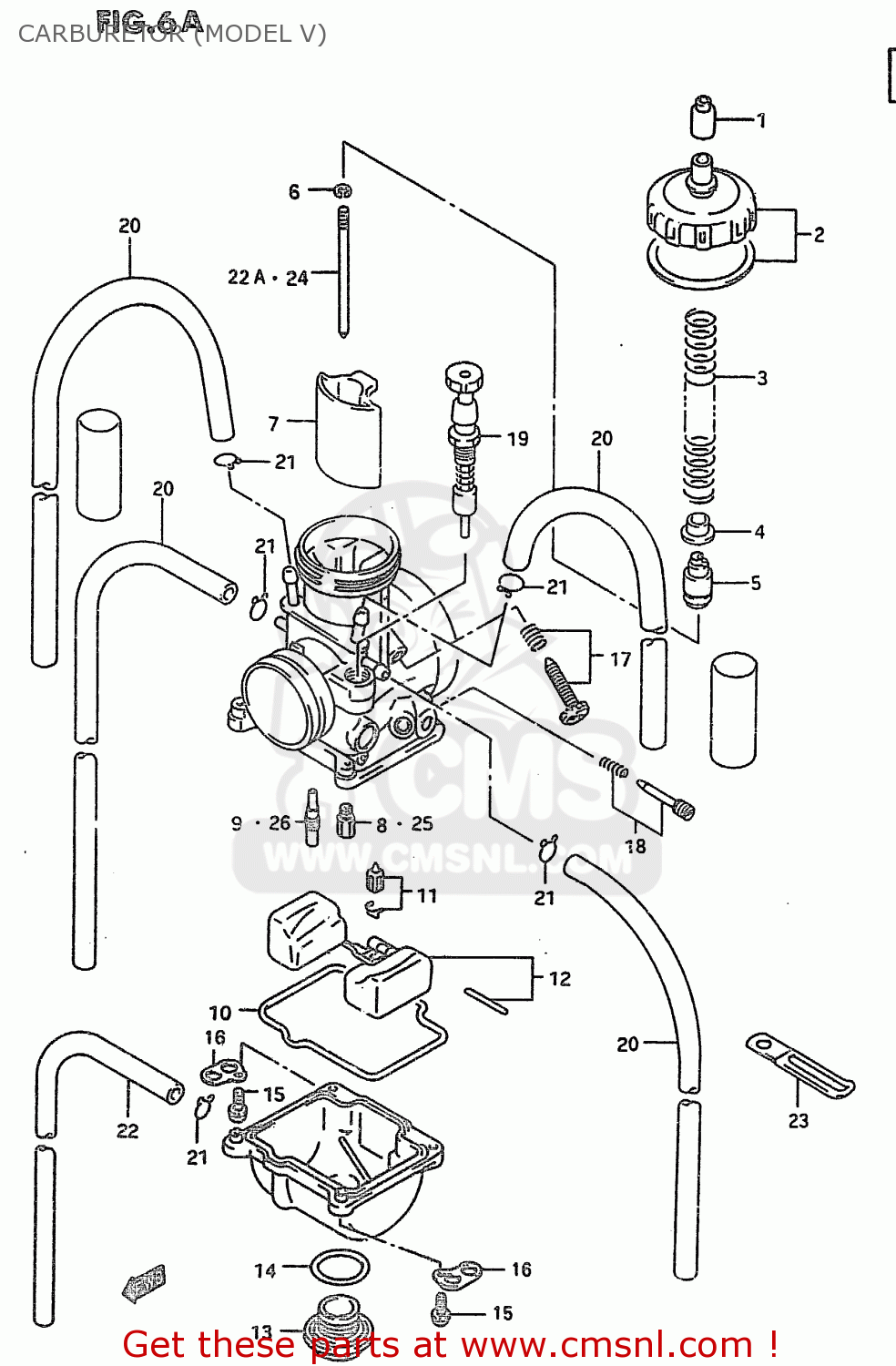

CARBURETOR (MODEL V)

ref

part #

description

quantity

0

1320037E10
ref: 0

CARBURETOR ASSEMBLY

€ 492.50

1

1368143D30
ref: 1

CAP,CARBURETOR

€ 7.50

2

1326043D30
ref: 2

CAP SET,TOP

€ 43.50

3

1357343D30
ref: 3

SPRING,THROTTLE VALVE

€ 9.00

4

1342443D30
ref: 4

COLLAR,THROTTLE VALVE

€ 5.00

5

1358143D30
ref: 5

HOLDER,CABLE

€ 19.00

6

1339428E00
ref: 6

CLIP,NEEDLE

€ 3.50

7

1355137E00
ref: 7

VALVE,THROTTLE

€ 114.50

8

0949135009
ref: 8

JET,MAIN(175)

€ 15.50

9

0949248013
ref: 9

JET,SLOW(48)

€ 9.50

10

1369628E00
ref: 10

GASKET,FLOAT CHAMBER

€ 11.00

11

1337043D30
ref: 11

VALVE SET,FLOAT

€ 40.50

12

1324028E00
ref: 12

FLOAT SET

€ 49.00

13

1324728E00
ref: 13

BOLT,DRAIN

€ 15.00

14

1324628E00
ref: 14

O RING

€ 3.50

15

0211234163
ref: 15

SCREW

€ 3.00

16

1369336E00
ref: 16

PLATE

€ 4.50

17

1327043D30
ref: 17

SCREW SET,STOP

€ 14.50

18

1328043D30
ref: 18

SCREW SET,AIR

€ 18.50

19

1341043D30
ref: 19

STARTER VALVE

€ 64.50

20

1368636E00
ref: 20
UP/RH L:620->580 UP/

HOSE(4X7X620)

€ 7.50

21

0940106101
ref: 21

CLIP

€ 2.50

22

0935135653600
ref: 22
L:600->330

HOSE(3.5X6.5X600)

€ 5.50

22A

1338337E40
ref: 22A

NEEDLE(N1ED)

€ 14.50

23

0940406429
ref: 23

CLAMP(L:45)

€ 2.50

24-1

1338337E20
ref: 24-1
OPT

NEEDLE(N1EB)

€ 10.00

24-2

1338337E30
ref: 24-2
OPT

NEEDLE (N1EC)

€ 10.50

24-3

1338337E40
ref: 24-3
OPT

NEEDLE(N1ED)

€ 14.50

24-4

1338337E50
ref: 24-4
OPT

NEEDLE (N1EE)

€ 13.00

24-5

1338337E60
ref: 24-5
OPT

NEEDLE (N1EF)

€ 10.50

24-6

1338337E70
ref: 24-6
OPT

NEEDLE(N0ZB)

€ 10.00

24-7

1338337E80
ref: 24-7
OPT

NEEDLE(N0ZC)

€ 10.50

24-8

1338337E90
ref: 24-8
OPT

NEEDLE(N0ZD)

€ 10.00

24-9

1338337EA0
ref: 24-9
OPT

NEEDLE(N0ZE)

€ 9.50

24-10

1338337EB0
ref: 24-10
OPT

NEEDLE(N0ZF)

€ 9.50

25-1

0949132010
ref: 25-1
OPT

JET,MAIN(160)

€ 13.00

25-2

0949132011
ref: 25-2
OPT

JET,MAIN(162)

€ 13.00

25-3

0949133009
ref: 25-3
OPT

JET,MAIN(165)

€ 9.00

25-4

0949133010
ref: 25-4
OPT

JET,MAIN(168)

€ 12.50

25-5

0949134010
ref: 25-5
OPT

JET,MAIN(170)

€ 12.50

25-6

0949134011
ref: 25-6
OPT

JET,MAIN(172)

€ 12.50

25-7

0949135009
ref: 25-7
OPT

JET,MAIN(175)

€ 15.50

25-8

0949135010
ref: 25-8
OPT

JET,MAIN(178)

€ 15.50

25-9

0949136008
ref: 25-9
OPT

JET,MAIN(180)

€ 15.50

25-10

0949137008
ref: 25-10
OPT

JET,MAIN(185)

€ 15.50

25-11

0949138011
ref: 25-11
OPT

JET,MAIN(190)

€ 15.50

25-12

0949139001
ref: 25-12
OPT

JET,MAIN(195)

€ 12.50

25-13

0949140013
ref: 25-13
OPT

JET,MAIN(200)

€ 12.50

25-14

0949141001
ref: 25-14
OPT

JET,MAIN(205)

€ 8.50

25-15

0949142006
ref: 25-15
OPT

JET,MAIN(210)

€ 8.50

25-16

0949143001
ref: 25-16
OPT

JET,MAIN(215)

€ 9.00

25-17

0949144006
ref: 25-17
OPT

JET,MAIN (220)

€ 10.00

25-18

0949145003
ref: 25-18
OPT

JET,MAIN(225)

€ 9.00

25-19

0949146004
ref: 25-19
OPT

JET,MAIN(230)

€ 9.00

26-1

0949235019
ref: 26-1
OPT

JET,SLOW(35)

€ 13.00

26-2

0949240022
ref: 26-2
OPT

JET,SLOW(40)

€ 15.50

26-3

0949242019
ref: 26-3
OPT

JET,SLOW(42)

€ 12.50

26-4

0949245032
ref: 26-4
OPT

JET,PILOT(45)

€ 9.00

26-5

0949248013
ref: 26-5
OPT

JET,SLOW(48)

€ 9.50

26-6

0949250023
ref: 26-6
OPT

JET,SLOW(50)

€ 11.50

26-7

0949252011
ref: 26-7
OPT

JET,SLOW(52)

€ 11.50

26-8

0949255017
ref: 26-8
OPT

JET,SLOW(55)

€ 11.50

26-9

0949258001
ref: 26-9
OPT

JET,PILOT(58)

€ 9.50

26-10

0949260016
ref: 26-10
OPT

JET,SLOW(60)

€ 12.50
